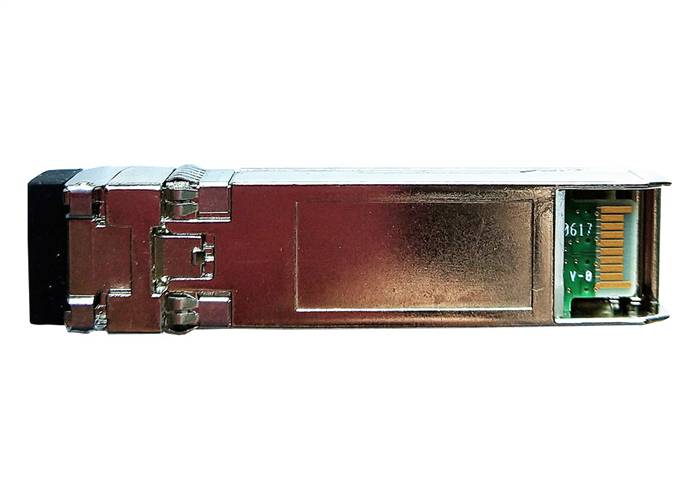

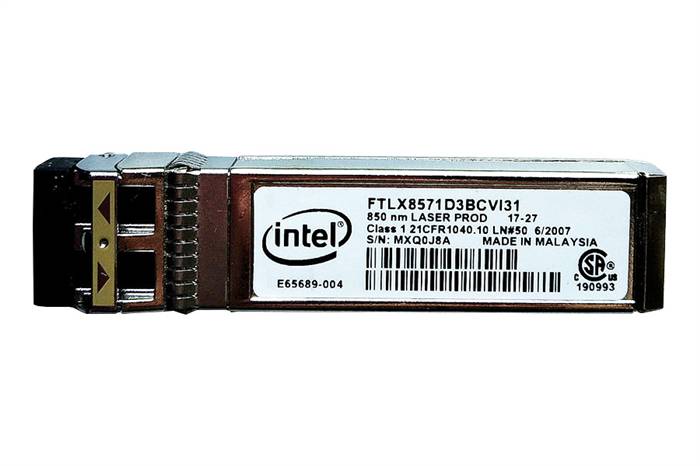

Intel FTLX8571D3BCVI31 10GBASE-SR 850nm SFP+ Optical Transceiver

Specifications

• Part: FTLX8571D3BCVI31
• Manufacturer: INTEL
• Transceiver Type: SFP+
• Media Type: Multi-Mode Fiber (MMF)
• TX Wavelength: 850 nm.
• RX Wavelength: 850 nm.
• Minimum Optical Budget: 4.6 dB
• Maximum Distance: 300m
• Supported Data Rate:  1.25-10.31 Gbps
• Supported Applications: 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
• DDM/DOM: Support
• Temperature Range: Standard 0°-70°C
• Connectors: Double LC
• Tx Wavelength Bandwidth: 20 nm (840-860 nm)
• Rx Wavelength Bandwidth: 20 nm (840-860 nm)
• Minimum Transmitting Power: -6.5 dB
• Maximum Transmitting Power: 1 dB
• Receiver Sensitivity: -11.1 dBm
• Receiver Overload: -1 dBm
• Dispersion: 110 ps/nm
• Transmitter Type: VSCEL Laser
• Receiver Type: PIN photodiode
• Power: +3.3V single power supply
• Compliance: CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA
