Home > OEM > Source Photonics >

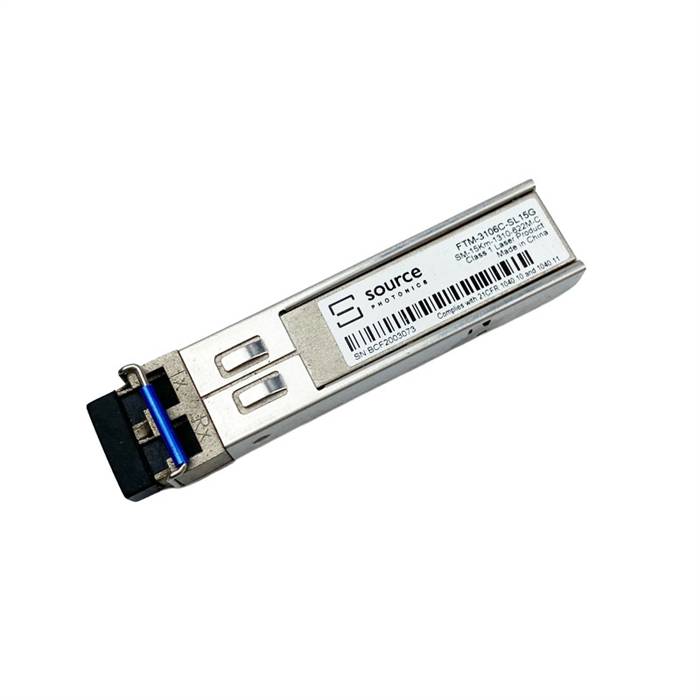

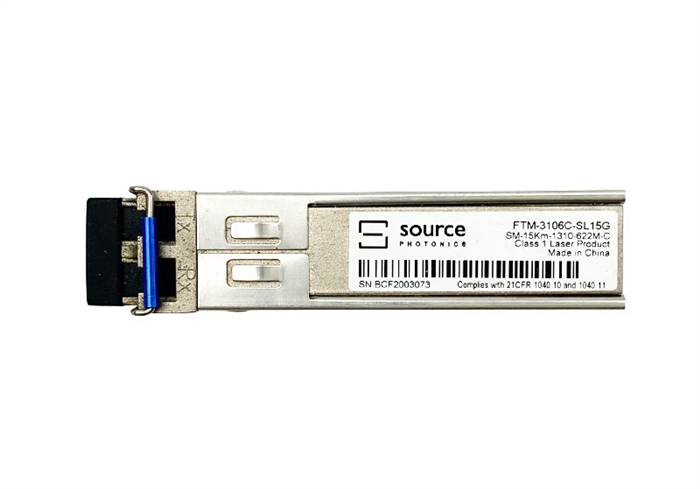

Source Photonics 622M 1310nm SMF 15km SFP Transceiver Module
Source Photonics FTM-3106C-SL

Alternative Views:
Our Price: $10.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTM-3106C-SL
Qty:

Description

The Source Photonics FTM-3106C-SL from Source Photonics is a Fiber Optic Transceiver with Data Rate 622 Mb/s, Wavelength 1310 nm, Distance/Reach 15 km, Receiver Sensitivity -28 dBm.

Product Details
  • Part Number: FTM-3106C-SL
  • Manufacturer: Source Photonics
  • MPN: SP-12-IR1-IDFM

Applications
  • Applications: SDH STM-4, S-4.1, SONET OC-12 IR1

Connections & Interface
  • Connector: LC
  • Interface: 2-Wire

Specifications
  • Data Rate: 622 Mb/s
  • Wavelength: 1310 nm
  • Distance/Reach: 15 km
  • Fiber Modes: Single Mode
  • Form Factor: SFP
  • Receiver Sensitivity: -28 dBm
  • Power Dissipation: 1 W
  • Tx/Rx Component: FP(Tx)/PIN(Rx)
  • Supply Current: 300 mA
  • Supply Voltage: 3.13 to 3.47 V
  • Network Technology: SDH STM-4, S-4.1, SONET OC-12 IR1
