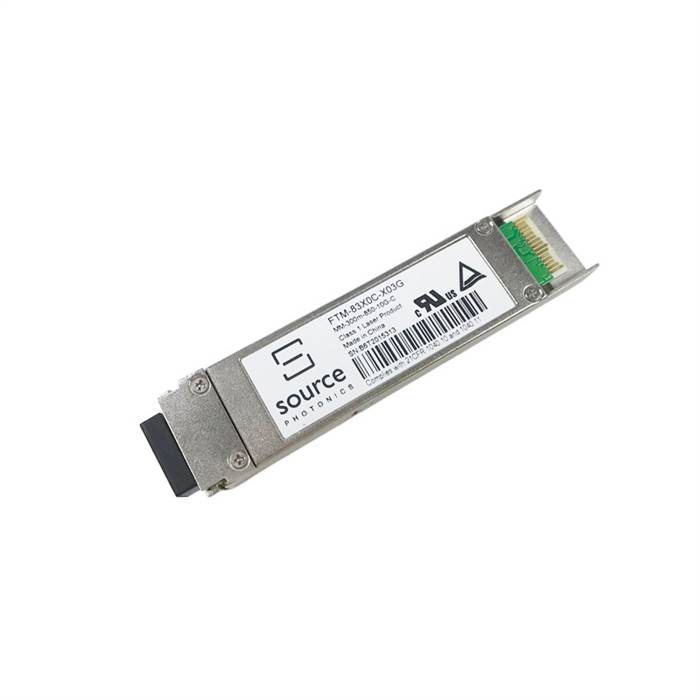

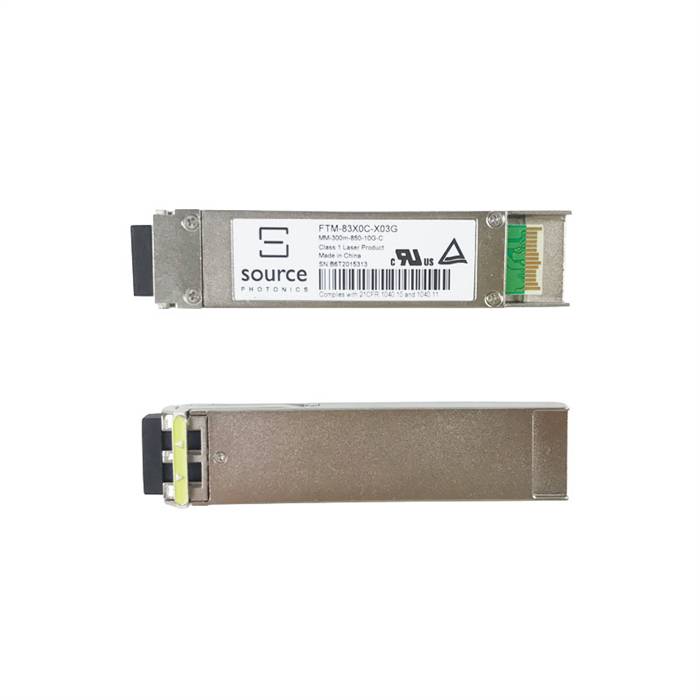

Source Photonics 10G 850nm MMF 0.3km XFP Transceiver
Source Photonics FTM-83X0C-X03G

Alternative Views:
Our Price: $52.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTM-83X0C-X03G
Qty:

Description

The Source Photonics FTM-83X0C-X03G is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae and 10G Fiber Channel 1200-Mx-SN-I. It provides 10-Gigabit connectivity up to 300m on multimode fiber (MMF) at 850nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features
  • Hot-pluggable XFP footprint
  • Supports 9.95Gbps to 11.1Gbps bit rates
  • Compliant with IEEE 802.3ae 10GBASE-SR/SW
  • 850nm VCSEL laser and PIN receiver
  • Distance up to 300m on multimode OM3 fiber
  • Duplex LC connector
  • Built-in digital diagnostic functions
  • Single 3.3V power supply
  • Very low EMI and excellent ESD protection
  • ROHS compliant and lead-free

Applications
  • 10GBASE-SR/10GBASE-SW Ethernet
  • 10G Fiber Channel
  • 10GbE Data Center Switches and Routers

Specifications
  • Manufacturer: Source Photonics
  • Part Number: FTM-83X0C-X03G
  • Form Factor: XFP
  • Data Rate: 10Gb/s
  • Wavelength: 850 nm
  • Fiber Type: MMF
  • Max Distance: 300 m
  • Optical Components: VCSEL/PIN
  • Transmitter Power: -6 ~ -1 dBm
  • Extinction ratio: > 3.5 dB
  • Receiver Sensitivity: < -10 dBm
  • Receiver Overload: > 0.5 dBm
  • Connector: Duplex LC
  • Digital Diagnostic Monitoring: Yes
  • Operating Temperature: 0°C to 70°C
