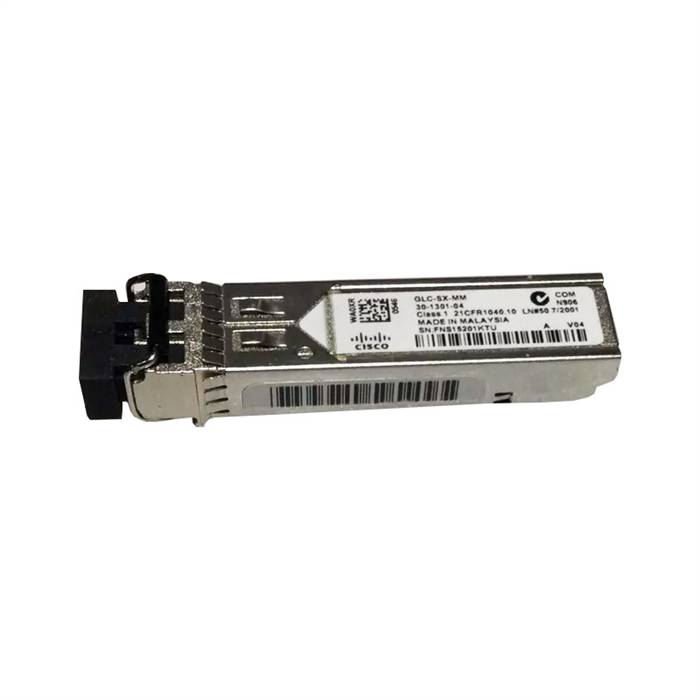

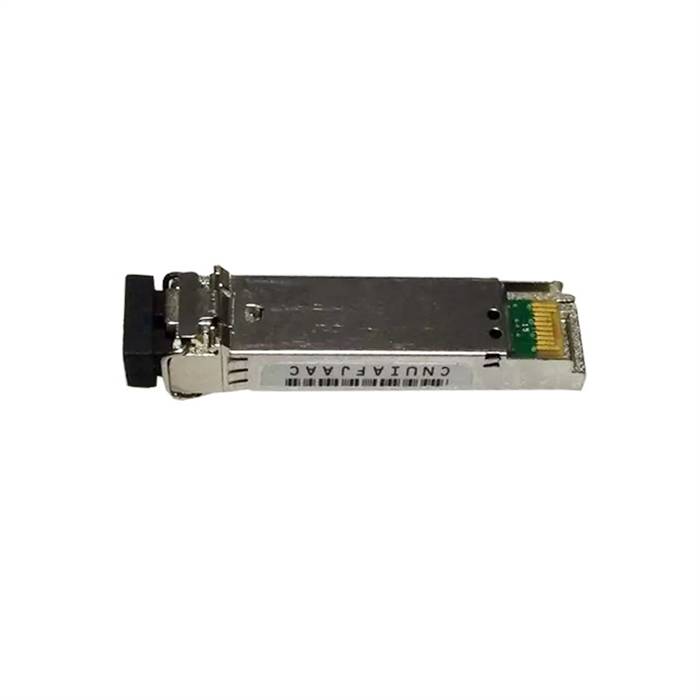

Cisco GLC-SX-MM 30-1301-04 CNUIAFJAAC 1000BASE-SX SFP Transceiver Module

Cisco's industry-standard SFP is a hot-swappable input/output device that plugs into a Gigabit Ethernet port/slot, linking the port with the fiber-optic network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of IEEE 802.3z- compliant 1000BaseSX, 1000BaseLX/LH, or 1000BaseZX interfaces on a port-by-port basis.

The Cisco GLC-SX-MM operates on ordinary multi-mode fiber optic link spans of up to 550m in length.

Features

• Up-to 500m over MMF @ 1Gbps
• 850nm Duplex SFP Transceiver
• 0°C - 70°C Operating Case Temperature
• No Digital optical monitoring capability
• Hot-swappable for SFP LC ports
• Cisco 90 day standard warranty
• Cisco SFP can be covered by SMARTnet
• SFP MSA / IEEE Std 802.3
• Cisco GLC-SX-MM is RoHS compliant

Specifications

• Part Number: GLC-SX-MM
• Transceiver Type: 1000BASE-SX, 850-nm MMF
• Wavelength (nanometers): 850
• Fiber Type: MMF
• Core Size (micron): 62.5; 62.5; 50.0; 50.0; 50.0
• Modal Bandwidth (MHz/km): 160; 200; 400; 500; 2000
• Cable Distance: 722 feet (220 m); 902 feet (275 m); 1640 feet (500 m); 1804 feet (550 m); 3281 feet (1 km)
• Transmit Power (dBm)
  • -3 (Max)
  • -9.5 (Min)
• Receive Power (dBm)
  • 0 (Max)
  • -17 (Min)
• Transmit and Receive Wavelength (nm): 770 to 860
