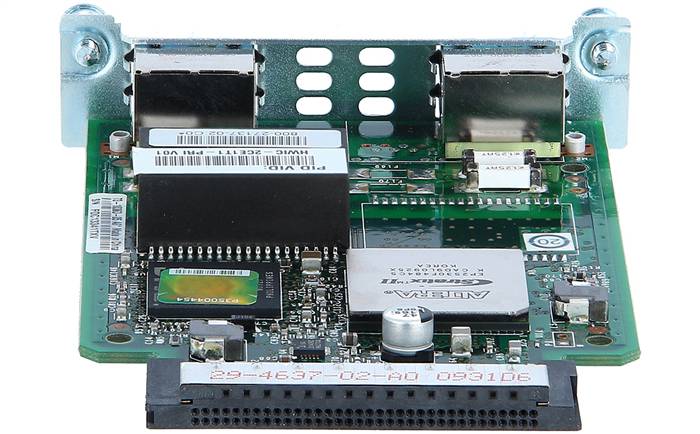

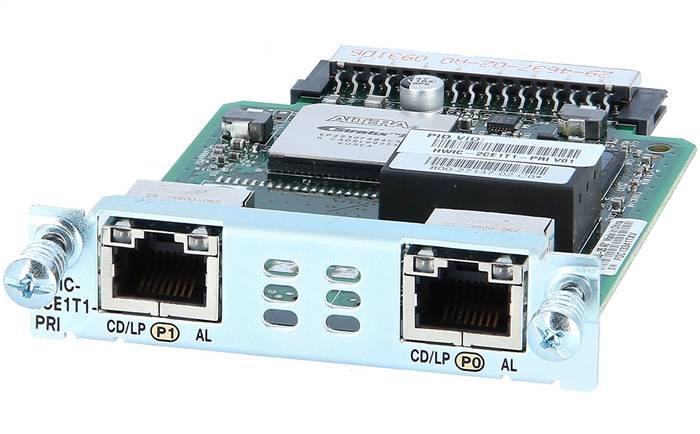

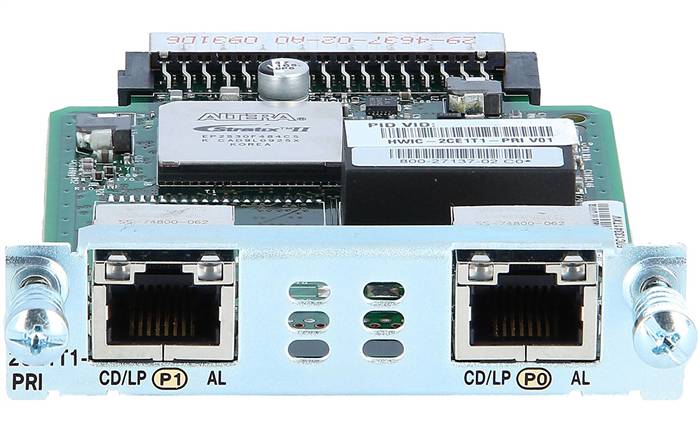

Cisco HWIC-2CE1T1-PRI 2 port channelized T1/E1, and PRI HWIC (data only)

Cisco's HWIC-2CE1T1-PRI is the 2-port Channelized E1/T1/ISDN PRI High speed WAN Interface Card which combines multiple T1/E1 WAN connectivity-Channelized T1/E1 and ISDN Primary Rate Interface (PRI), in the same card. The Cisco HWIC-2CE1T1-PRI is software-configurable between E1 or T1 operation, balanced or unbalanced E1 termination, and CSU/DSU. Customers no longer need to buy a specific module for T1 support and then another card for E1 connectivity. Simply purchase a new or pre-owned HWIC-2CE1T1-PRI and save money.

The Cisco 2-Port Channelized E1/T1/ISDN-PRI HWIC combine multiple T1/E1 WAN connectivity-Channelized T1/E1 and ISDN Primary Rate Interface (PRI), in the same card. Applications include fractional or full T1/E1 WAN connectivity, ISDN PRI for primary WAN link or WAN backup, and dial access aggregation.

Specifications

• Manufacturer: Cisco
• Product ID: HWIC-2CE1T1-PRI
• Product Description: 2 port channelized T1/E1 and PRI HWIC
• Product Type: HWIC
• Application/Usage: Wide Area Network
• Total Number of Ports: 2
• Connector Type: RJ-48C
• Interfaces/Ports Details: 2 x RJ-48C Channelized E1/T1/ISDN-PRI
• Maximum Data Transfer Rate: 2.048
• Height: 0.8"
• Width: 3.1"
• Depth: 4.7"
• Weight (Approximate): 0.19 lb

Compatibility

• Cisco 2811 Integrated Services Router
• Cisco 2821 Integrated Services Router
• Cisco 2851 Integrated Services Router
• Cisco 3825 Integrated Services Router
• Cisco 3845 Integrated Services Router
