Cisco HWIC-4A/S 4-Port Async/Sync Serial HWIC

Cisco interface cards are classified according to the technologies they support. For example, WAN interface cards (WICs) support WAN technologies, such as Gigabit Ethernet; and voice interface cards (VICs) support voice technologies. Voice/WAN interface cards (VWICs) can support voice, data, and voice and data applications, depending on the capabilities of the router in which the VWIC is installed. Enhanced High-speed WAN interface cards (EHWIC) provide expanded LAN and WAN capabilities, such as Gigabit Ethernet and Ethernet switching.

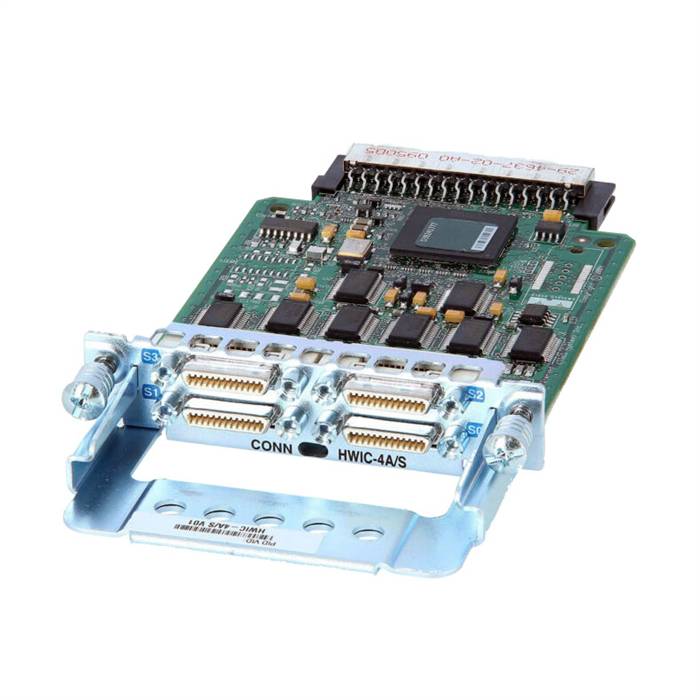

HWIC-4A/S is 4 ports low-speed synchronous/asynchronous interface module for 1800/1900/2800/2900/3800/3900 Series integrated services Routers. With integration of module to the router can either transporting traditional traffic across a TCP/IP network or connecting with console and craft ports to manage network remotely. The HWIC-4A/S provides four serial async/sync ports using Smart Serial connectors and cabling. Each port can operate up to 256 Kbps in sync mode, or up to 230.4 Kbps in async.

Specifications

• Manufacturer: Cisco
• Product ID: HWIC-4A/S
• Product Description: Cisco 4-Port Async/Sync Serial HWIC
• Product Type: HWIC
• Application/Usage: Wide Area Network
• Interfaces/Ports: 4 x Synchronous /Asynchronous Serial WAN
• Connectivity Media: Serial Cable
• Data Transfer Rate
• 256 Kbps Maximum Synchronous Serial Per Port
• 230.40 Kbps Maximum Asynchronous Serial Per Port
• Protocols: TCP/IP , SDLC, X.25, HDLC , PPP, SLIP
• Status Indicators: CONN LED

Environmental Conditions

• Operating Temperature: 32°F (0°C) to 104°F (40°C)
• Storage Temperature: -4°F (-20°C) to 149°F (65°C)
• Humidity: 10% to 90% Non-condensing Relative Humidity

Additional Information

• The HWIC-4A/S provides four serial async/sync ports using Smart Serial connectors and cabling
• DCN (Data Communications Network)
• Serial & Legacy Concentration
• Bisync Support
• Network Clock Synchronization
• Interfaces supported:
• In both DTE and DCE formats: V35, X.21, RS-232, and RS-449
• In DTE format only: EIA-530 and EIA-530A
