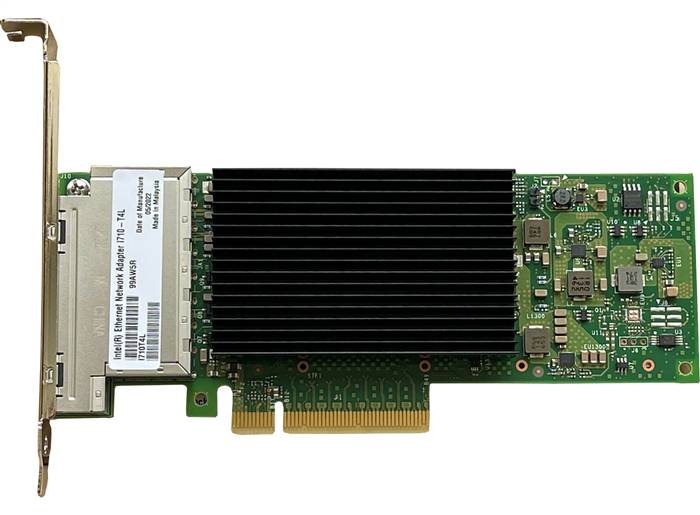

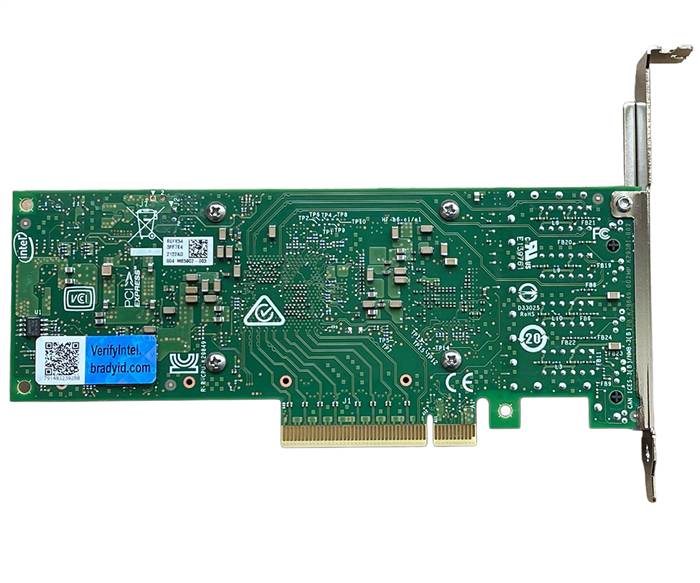

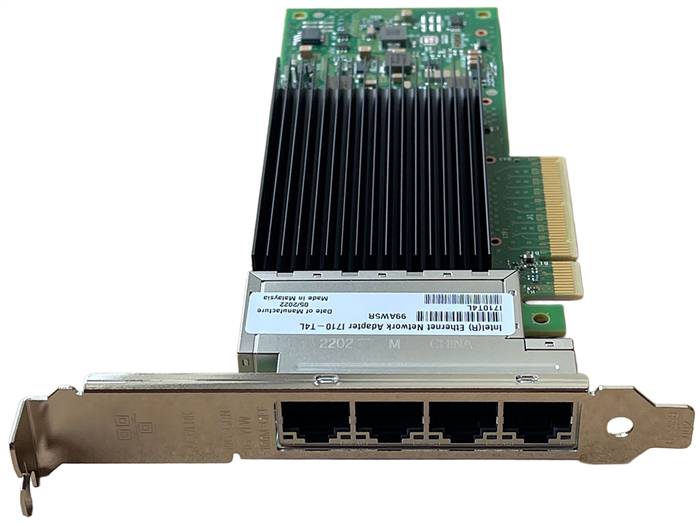

Intel 1GbE Quad Port Ethernet Network Adapter I710-T4L
I710-T4L - Intel I710T4L

Alternative Views:
Our Price: $600.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: I710-T4L
Qty:

Description

Maximize system port efficiency with the Intel® Ethernet Network Adapter I710-T4L. Four RJ45 ports offer auto-negotiation between 1000BASE-T and 100BASE-TX configurations. This low-power adapter also supports Energy Efficient Ethernet to efficiently reduce power consumption during periods of low data activity.

The I710-T4L is part of the Intel® Ethernet 700 Series, the foundation for server connectivity: providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
  • Interoperability - Dual speeds and media types for broad compatibility backed by extensive testing and validation.
  • Optimization - Intelligent offloads and accelerators to unlock network performance in servers with Intel® Xeon® processors.
  • Agility - Both Kernel and Data Plane Development Kit (DPDK) drivers for scalable packet processing.

The Intel® Ethernet 700 Series delivers networking performance across a wide range of network port speeds through intelligent offloads, sophisticated packet processing, and quality
open-source drivers.

Key Features
  • Energy Efficient Ethernet (EEE) / IEEE 802.3az enabled
  • Dual-speed support for 1000BASE-T and 100BASE-TX
  • Standard CAT5e/6/6A cabling with four RJ45 connectors for maximum system density
  • PCI Express (PCIe) 3.0 x8
  • FCC Class B for EMI
  • Network Virtualization Overlay aware with stateless offload support for including VxLAN, GENEVE, and NVGRE
  • Intel® Ethernet Flow Director for hardware-based application traffic steering
  • Data Plane Development Kit (DPDK) optimized for efficient packet processing
  • Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
  • Intelligent offloads to enable high performance on servers with Intel® Xeon Scalable processors

Essentials
  • Product Collection: Intel® Ethernet Network Adapter I710
  • Status: Launched
  • Launch Date: Q2'22
  • Vertical Segment: Server
  • Cable Medium: Copper
  • Cabling Type: RJ45 Category 6, Category 6A, Category 5e up to 100m
  • Bracket Height: Low profile and Full Height

Networking Specifications
  • Port Configuration: Quad
  • Data Rate Per Port: 1GbE/100Mb
  • Intel® Virtualization Technology for Connectivity (VT-c): Yes
  • Speed & Slot Width: 8.0 GT/s, x 8 Lane
  • Controller: Intel® Ethernet Controller X710-TM4

Package Specifications
  • System Interface Type: PCIe 3.0 (8.0 GT/s)

Intel® Virtualization Technology for Connectivity
  • On-chip QoS and Traffic Management: Yes
  • Flexible Port Partitioning: Yes
  • Virtual Machine Device Queues (VMDq): Yes
  • PCI-SIG* SR-IOV Capable: Yes

Advanced Technologies
  • iWARP/RDMA: No
  • Intel® Data Direct I/O Technology: Yes
  • Intelligent Offloads: Yes
  • Storage Over Ethernet: iSCSI, NFS

Ordering Information
  • Intel® Ethernet Network Adapter I710-T4L, Retail Unit
  • Ordering Code: I710T4L
