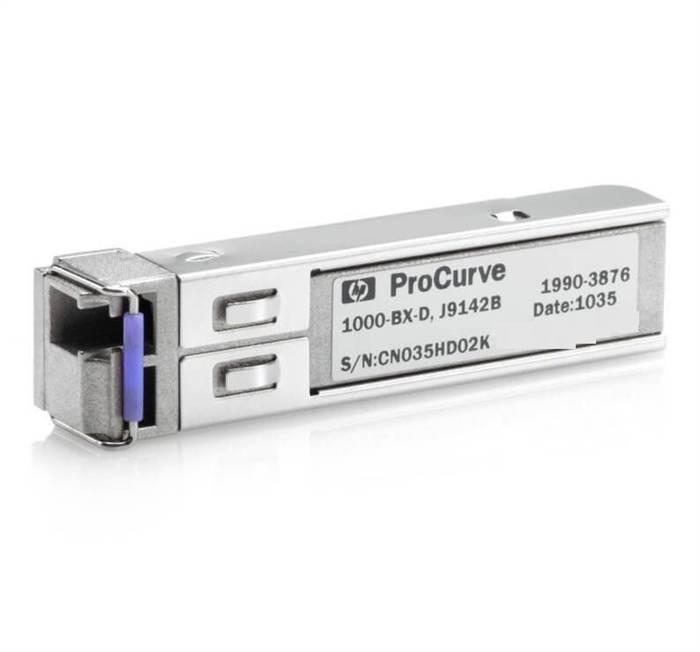

HPE J9142B X122 1G SFP LC BX-D Transceiver

The HPE J9142B SFP transceiver provides up to 10km of 1000Base-BX throughput over single-mode fiber (SMF) using 1490nm-TX/1310nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.

Specifications

• Brand: HPE
• Part Number: J9142B
• Form Factor: SFP
• Max Data Rate: 1000Mbps
• Wavelength: 1490nm-TX/1310nm-RX
• Max Cable Distance: 10km (6.21 miles)
• Connector: Simplex LC
• Optical Components: DFB BiDi
• Media: SMF
• Fiber diameter (µm): 9/125
• DOM Support: Yes
• TX Power: -9~-3dBm
• Receiver Sensitivity: < -23dBm
• Commercial Temperature Range: 0 to 70°C (32 to 158°F)
