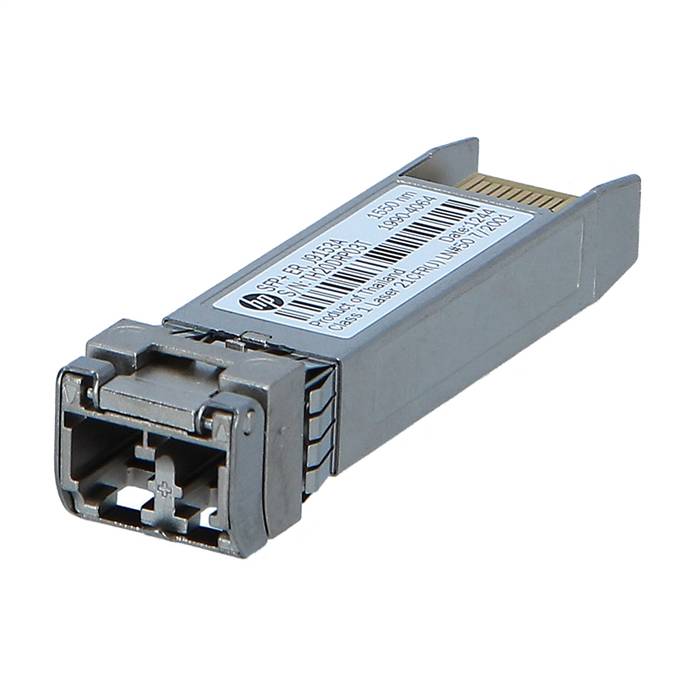

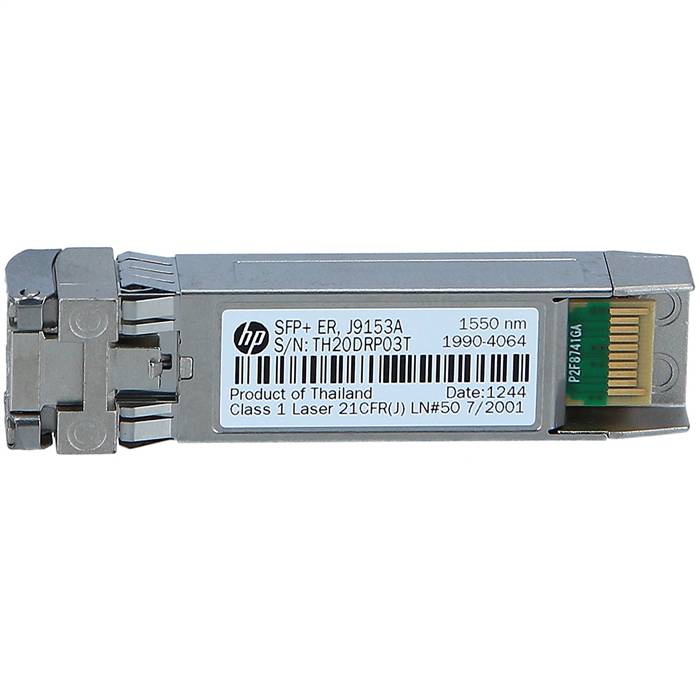

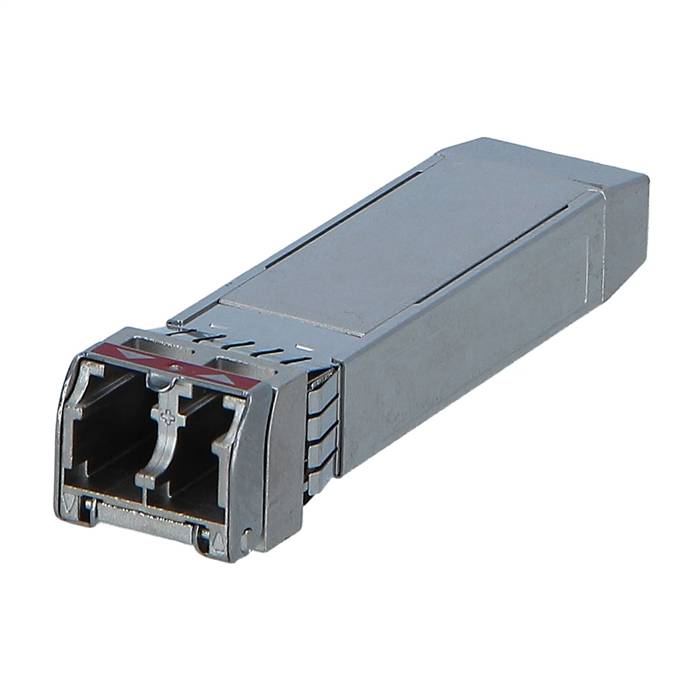

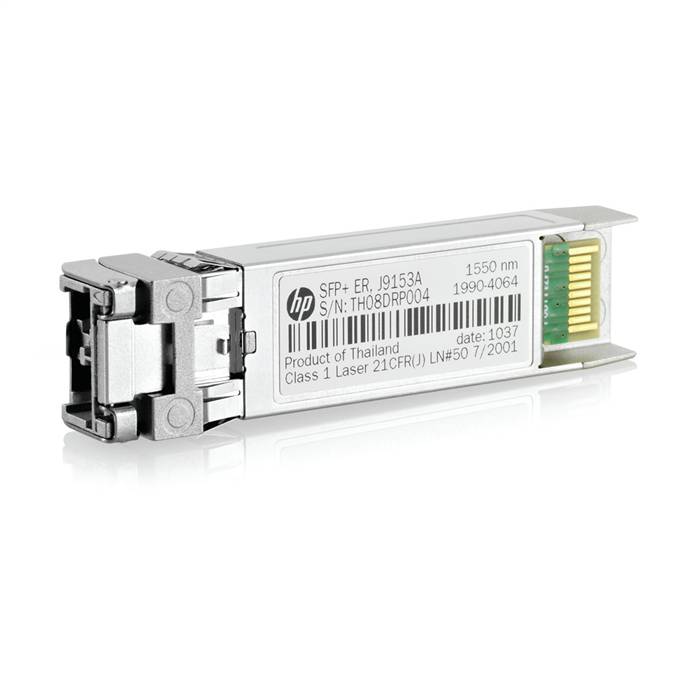

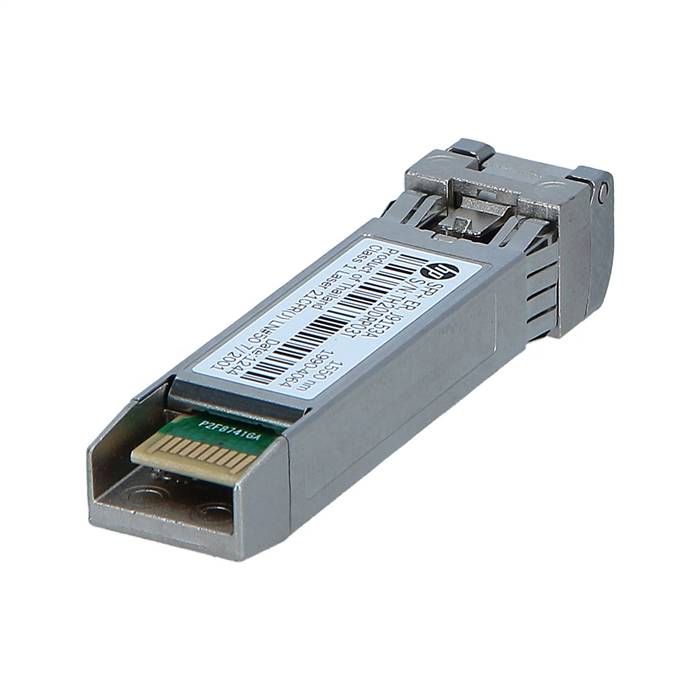

HPE J9153A X132 10G SFP+ LC ER Transceiver

This HPE J9153A SFP+ transceiver supports up to 40km over OS2 SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and 10GBASE- ER/EW. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fibre Channel etc.

Specifications

• Brand: HPE
• Part Number: J9153A
• Form Factor: SFP+
• Max Data Rate: 11.3Gbps
• Wavelength: 1550nm
• Max Cable Distance: 40km
• Connector: Duplex LC
• Optical Components: EML 1550nm
• Media: SMF
• DOM Support: Yes
• TX Power: -1~4dBm
• Receiver Sensitivity: < -16dBm
• Operating Temperature: Commercial Temperature Range - 0 to 70°C (32 to 158°F)
