Genuine HPE JD092B

Home > OEM > HPE >

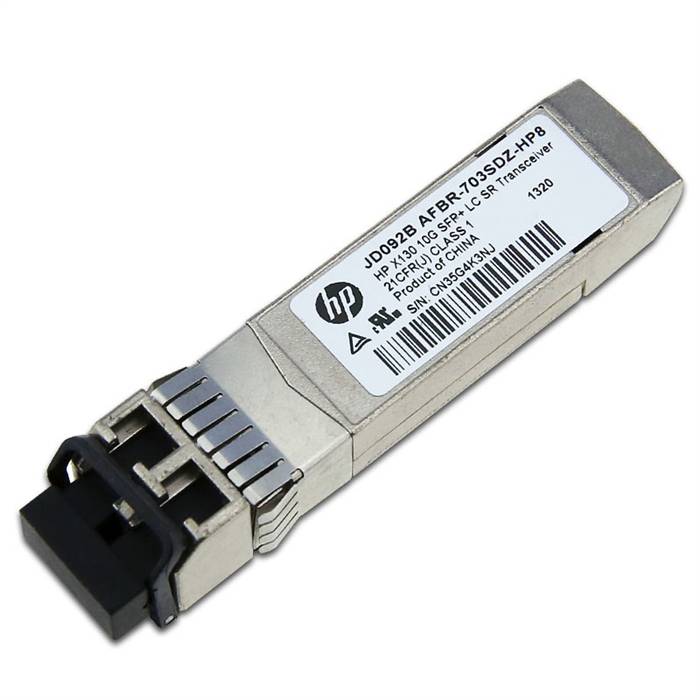

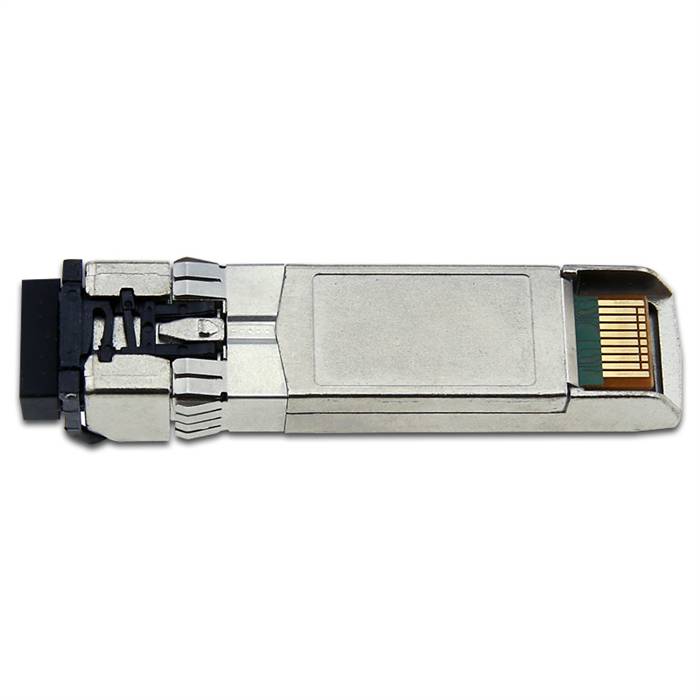

HPE X130 10G SFP+ LC SR TRANSCEIVE, JD092-61201

Alternative Views:

Our Price: $100.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: JD092B

Qty:

Description

The HPE JD092B SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Specifications

P/N: JD092B
Vendor Name: Compufox.com
Form Factor: SFP+
Max Data Rate: 10.3125Gbps
Wavelength: 850nm
Max Cable Distance: 300m@OM3/400m@OM4
Connector: LC Duplex
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: -5 to 70°C (23 to 158°F)
TX Power: -7.3~-1dBm
Receiver Sensitivity: < -11.1dBm
Typical Power Consumption: ?0.6W
Receiver Overload: 0.5dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: >3dB
EMC (Electro Magnetic Compatibility): Supported
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI

Compatibility

HPE H3C 5130 EI
HPE H3C 5930
HPE H3C 7500
HPE H3C HSR6600 Router
HPE H3C 5820
HPE H3C 12500
HPE H3C 5700
HPE H3C 12900
HPE H3C HSR6800 Route
HPE H3C 5830
HPE H3C 5500 HI
HPE H3C 5920
HPE H3C 5800
HPE H3C 7900
HPE H3C 5900
HPE H3C 10500
HPE H3C 1420
