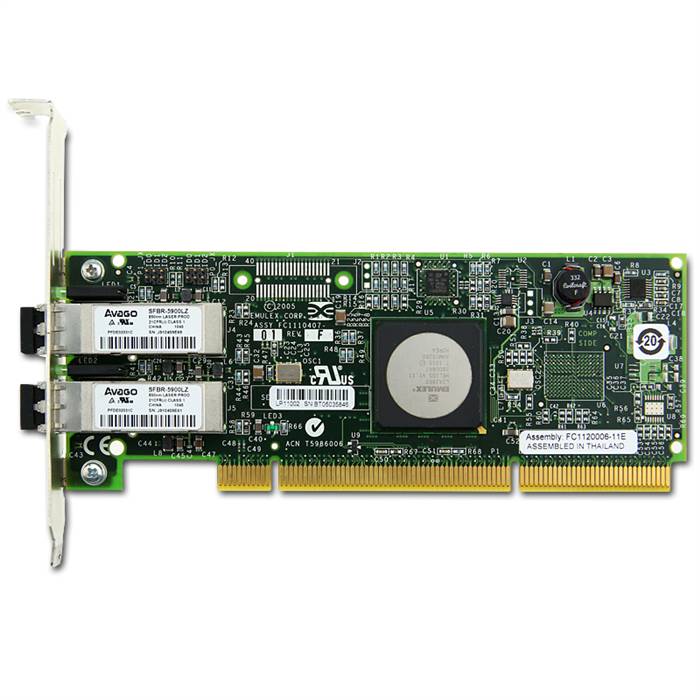

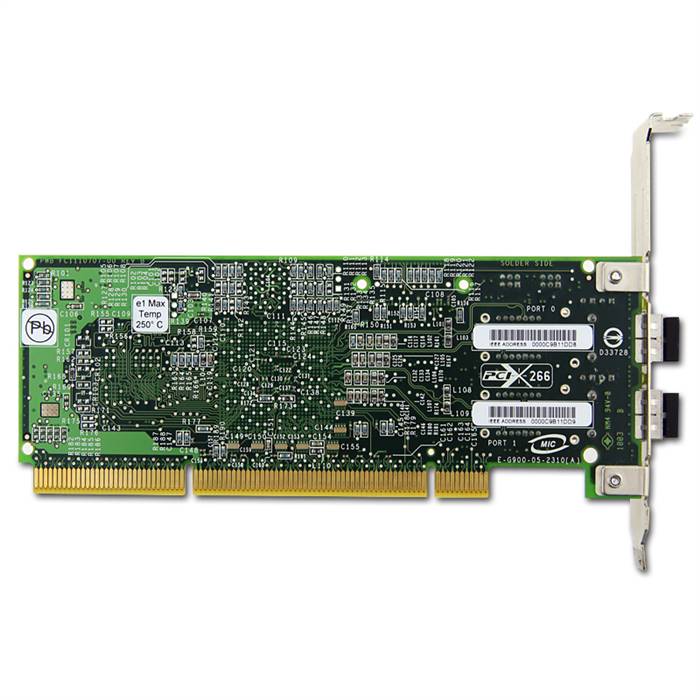

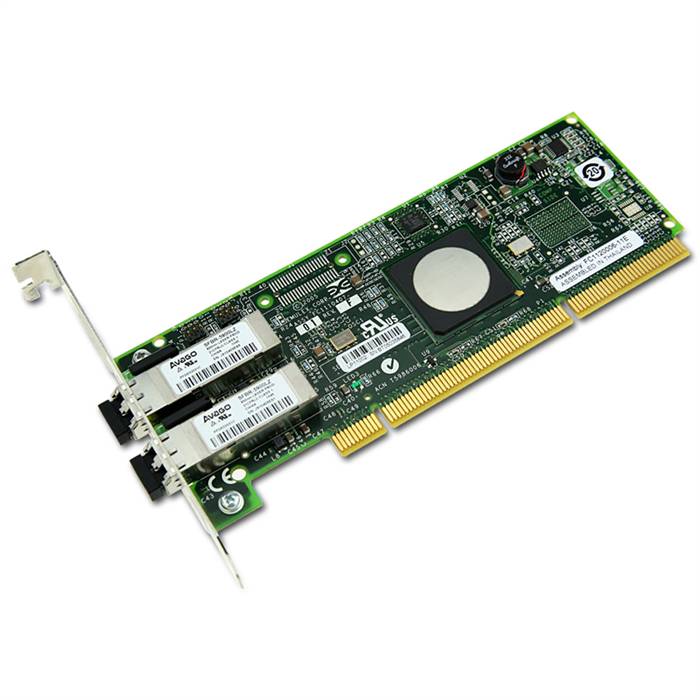

Emulex LP11002 4GFC PCI 2.0 Dual-port Fibre Channel Host Bus Adapter, LP11002-M4

Standards

• ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
• PCI-X 2.0 and PCI 3.0
• Fibre Channel class 2 and 3
• PHP hot plug-hot swap

Architecture

• Dual-channel
• 4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
• Integrated data buffer and code space memory

Comprehensive OS Support

• Windows, Linux, NetWare, Solaris, VMware, HP-UX
• Additional support is available from OEMs and partners

Hardware Environments

• x86, x64, and Intel? Itanium? processor family
• SPARC and PowerPC PCI hardware platforms
• 32/64-bit 33/66MHz PCI (3.3 signaling)
• 66/100/133/266MHz PCI-X bus speeds

Optical

• Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected)
• Optics: Short wave lasers with LC type connector
• Cable: 50/125 microns, up to 150 meters at 4Gb/s 62.5/125 microns, up to 70 meters at 4Gb/s

Physical Dimensions

• Short, low profile MD2 form factor card
• 167.64mm x 64.42mm (6.60” x 2.54”)
• Standard bracket (low profile available)

Power & Environmental Requirements

• Volts: +3.3 and 5 VDC
• Operating temperature: 0° to 55°C (32° to 131°F)
• Airflow required: 100 lf/m
• Storage temperature: -40° to 70°C (-40° to 158°F)
• Relative humidity: 5% to 95% non-condensing

Agency Approvals

• Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
• UL recognized to UL 60950-1
• CUR recognized to CSA22.2, No. 60950-1-03
• TUV certified to EN60950-1
• FCC rules, Part 15, Class A
• ICES-003, Class A
• EMC Directive 2004/108/EEC (CE Mark)
• EN55022, Class A
• EN55024
• Australian EMC Framework (C-Tick Mark)
• AS/NZS CISPR22, Class A
• VCCI, Class A
• MIC (Korea), Class A
• BSMI (Taiwan), Class A
• RoHS Compliant (Directive 2002/95/EC) for environmental requirements
