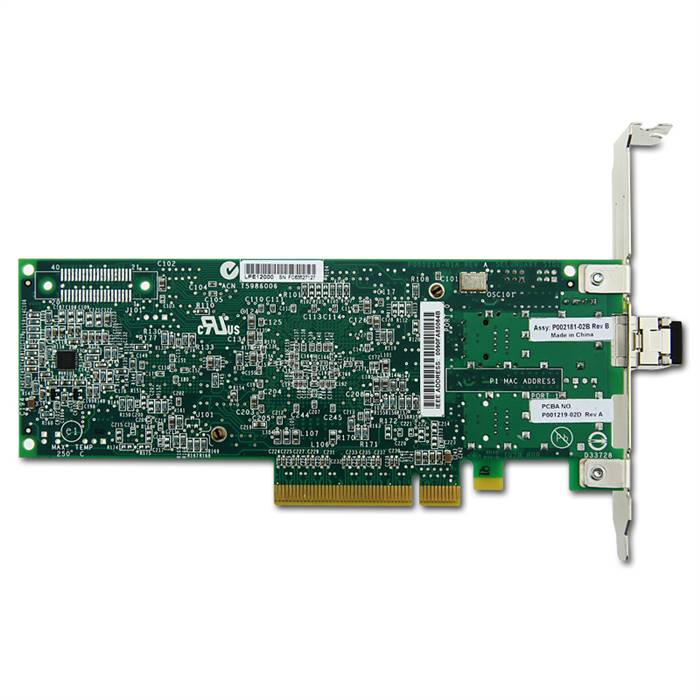

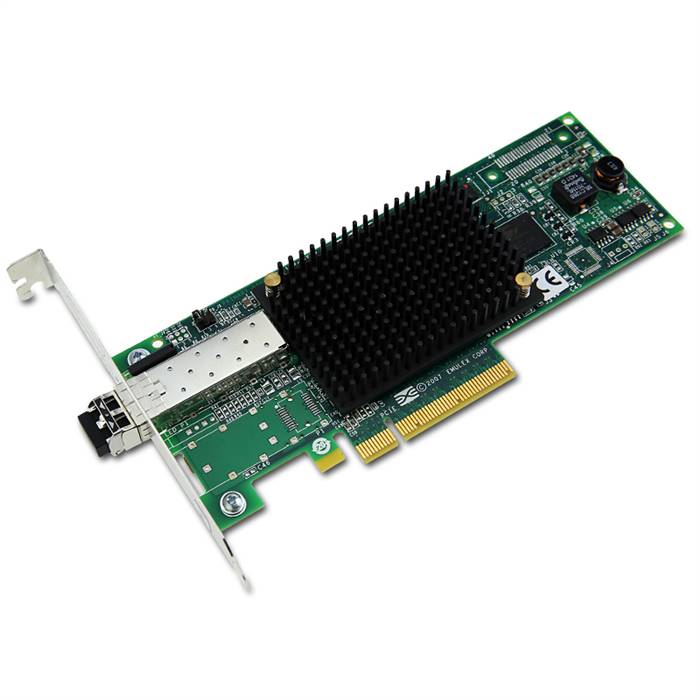

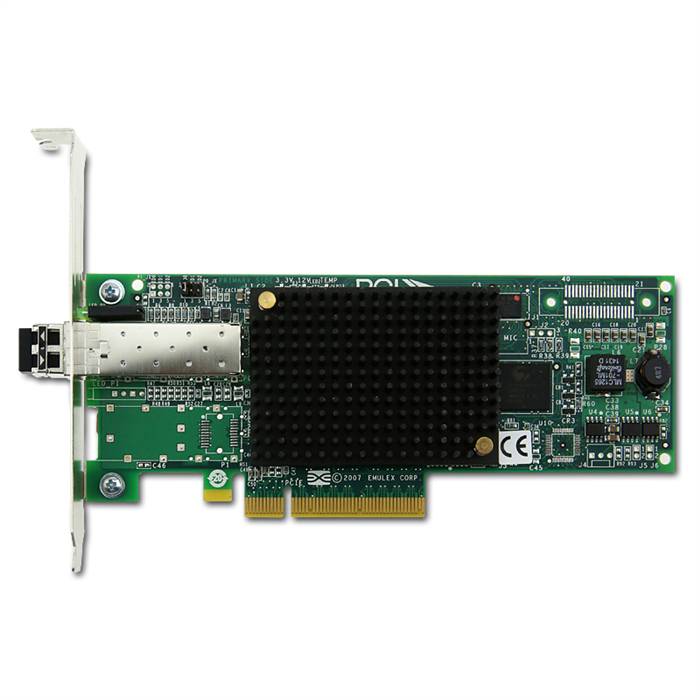

Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-port Emulex LPe12000 and dual-port LPe12002 8Gb Fibre Channel (8GFC) Host Bus Adapters (HBAs) for EMC ideal for enterprise, mixed-OS and virtual server environments.
Key benefits - Provides superior performance for the enterprise
- Integrates seamlessly into existing SANs
- Supports IT server consolidation and energy conservation initiatives
- Allows application of SAN best practices, tools and processes with virtual server deployments
- Protects sensitive data from unauthorized access
- Assures data availability and data integrity
- Improves IT staff productivity through simplifi ed deployment and management
Key features - Support for Message Signal Interrupts eXtended (MSI-X), improves host utilization and enhances application performance
- Support for 8GFC, 4GFC and 2GFC devices
- Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV) and Virtual Fabric
- Host to Fabric FC-SP authentication
- Long wave optical transceiver model available—allows the board to transmit signal over long distances
- Secure management with rolebased administration integrated with Light Directory Access Protocol (LDAP) and Active Directory (AD) services
- End-to-end T10 PI data integrity for protection against silent data corruption events
- Common driver model allows a single driver to support all Emulex HBAs on a given OS
- Easy deployment of new firmware with minimal server reboots
- Efficient centralized administration of Emulex HBAs via powerful management tools
- PCIe 2.0 bus compliant, with PCIe 1.0 backward compatibility supported
Standards - ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC-FS-2/AM1, FC-LS, FC-AL-2, FC-GS-6, FC-FLA, FC-PLDA, FC-TAPE, FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and SMI-S v1.1
- PCI Express base spec 2.0
- PCI Express card electromechanical spec 2.0
- Fibre Channel class 2 and 3
- PHP hot plug-hot swapArchitecture
- Single-port (LPe12000) or dual-port (LPe12002)
- 8GFC, 4GFC or 2GFC link speeds automatically detected
- Integrated data buffer and code space memory
Comprehensive OS and hypervisor support - Windows Server
- Linux
- Solaris
- VMware vSphere
- Windows Hyper-V
- Additional support is available from OEMs and partners
Hardware environments - PowerPC, SPARC, x86, x64 and Intel Itanium 64-bit processor family
Optical - Data rates: 2.125, 4.25 and 8.5GFC (autodetected)
- Optics: Short wave lasers with LC type connector
- Cable: Operating at 8GFC
- 50/125?m (500MHz*km BW)-up to 50m
- 50/125?m (2000MHz*km BW)-up to 150m
Physical dimensions - Short, low profile MD2 form factor card
- 167.64mm x 68.91mm (6.60” x 2.71”)
- Standard bracket (low profile available)
Power and environmental requirements - Volts: +3.3, +12
- Operating temperature: 0° to 55°C (32° to 131° F)
- Storage temperature: -40° to 70°C (-40° to 158° F)
- Relative humidity: 5% to 95% noncondensing
- 23°C wet bulb
|
|
|
 |
|
 |
|
