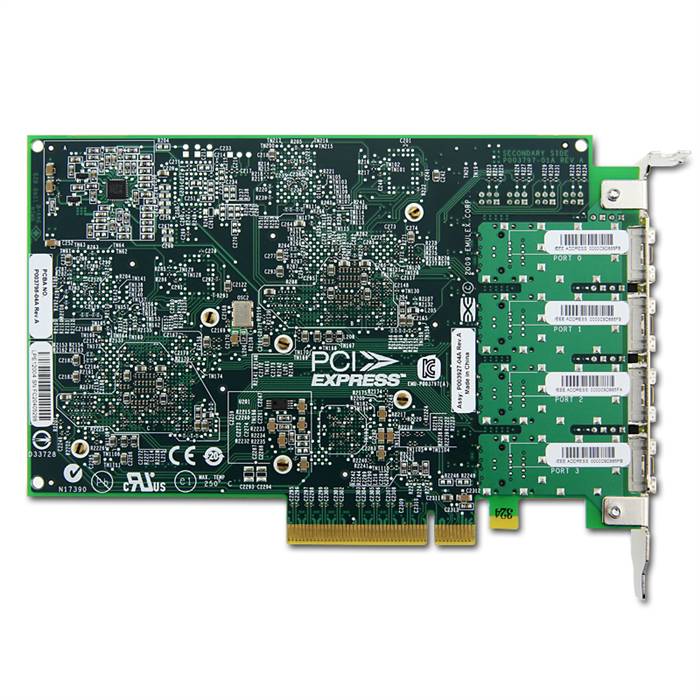

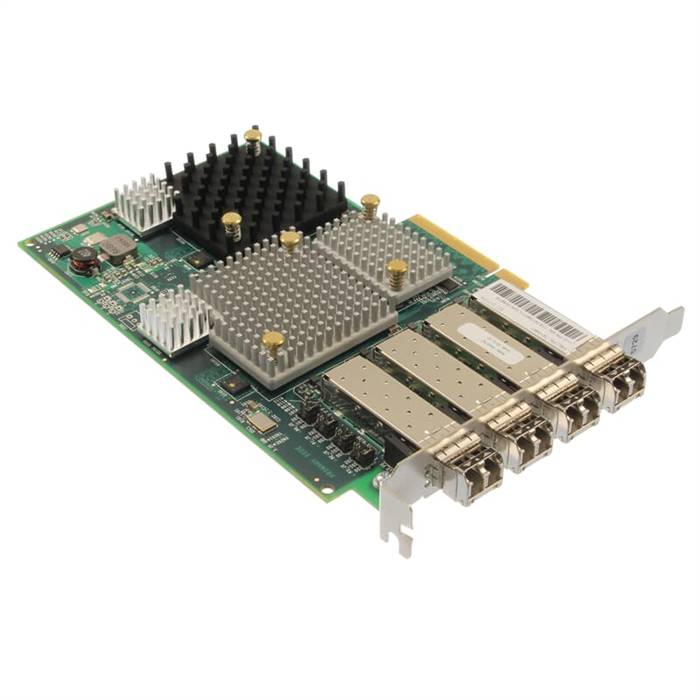

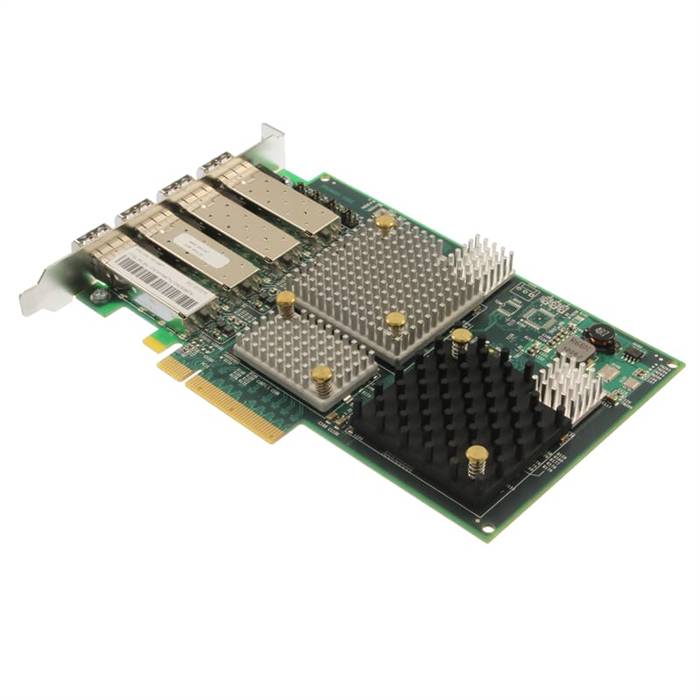

Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the quad-port Emulex LPe12004 Fibre Channel host bus adapters (HBA) ideal solutions for enterprise, mixed-OS and virtual server environments
Key benefits - Provides superior performance for the enterprise
- Integrates seamlessly into existing SANs
- Supports IT server consolidation and energy conservation initiatives
- Allows application of SAN best practices, tools and processes with virtual server deployments
- Protects sensitive data from unauthorized access
- Assures data availability and data integrity
- Improves IT staff productivity through simplifi ed deployment and management
Key features - Support for Message Signal Interrupts eXtended (MSI-X), improves host utilization and enhances application performance
- Support for 8GFC, 4GFC and 2GFC devices
- Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV) and Virtual Fabric
- Host to Fabric FC-SP authentication
- Long wave optical transceiver model available—allows the board to transmit signal over long distances
- Secure management with rolebased administration integrated with Light Directory Access Protocol (LDAP) and Active Directory (AD) services
- End-to-end T10 PI data integrity for protection against silent data corruption events
- Common driver model allows a single driver to support all Emulex HBAs on a given OS
- Easy deployment of new firmware with minimal server reboots
- Efficient centralized administration of Emulex HBAs via powerful management tools
- PCIe 2.0 bus compliant, with PCIe 1.0 backward compatibility supported
Standards - ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC-FS-2/AM1, FC-LS, FC-AL-2, FC-GS-6, FC-FLA, FC-PLDA, FC-TAPE, FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and SMI-S v1.1
- PCI Express base spec 2.0
- PCI Express card electromechanical spec 2.0
- Fibre Channel class 2 and 3
- PHP hot plug-hot swap
Architecture - Quad-port
- 8GFC, 4GFC or 2GFC Link speeds automatically detected
- Integrated data buffer and code space memory
Comprehensive OS Support - Windows, Linux, NetWare, Solaris (except DR), VMware
- Additional support is available from OEMs and partners
Hardware Environments - PowerPC,® SPARC,® x86, x64 and Intel® Itanium® 64-bit processor family
Optical - Data rates: 2.125, 4.25 and 8.5GFC(auto-detected)
- Optics: Short wave lasers with LC type connector
- Cable: Operating at 8Gb/s
- 50/125µm (500MHz*km BW)-up to 50m
- 50/125µm (2000MHz*km BW)-up to 150m
Physical Dimensions - PCI full-height, half-length form factor card
- 111.15mm x 167.64mm (4.376” x 6.600”)
- Standard bracket
Power & Environmental Requirements - Volts: +3.3, +12
- Operating temperature: 0° to 55° C (32° to 131° F)
- Storage temperature: -40° to 70° C (-40° to 158° F)
- Relative humidity: 5% to 95% non-condensing, 23° C wet bulb
|
|
|
 |
|
 |
|
