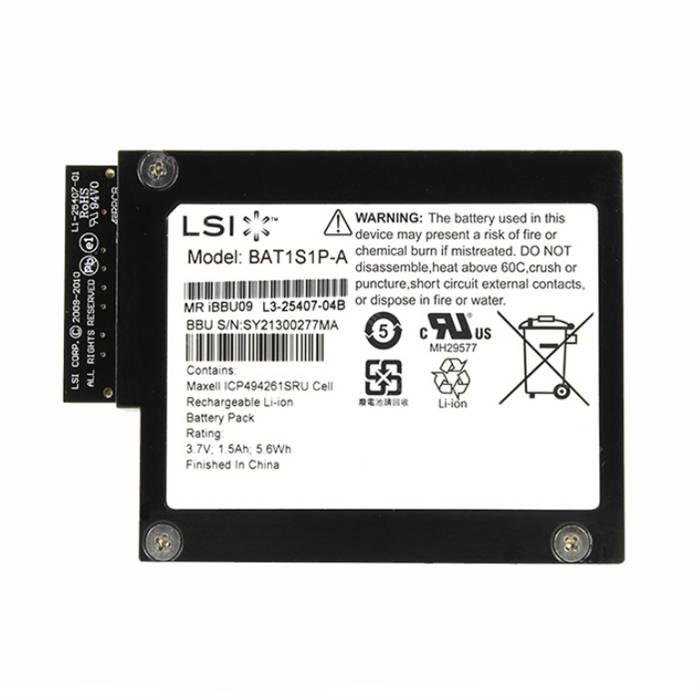

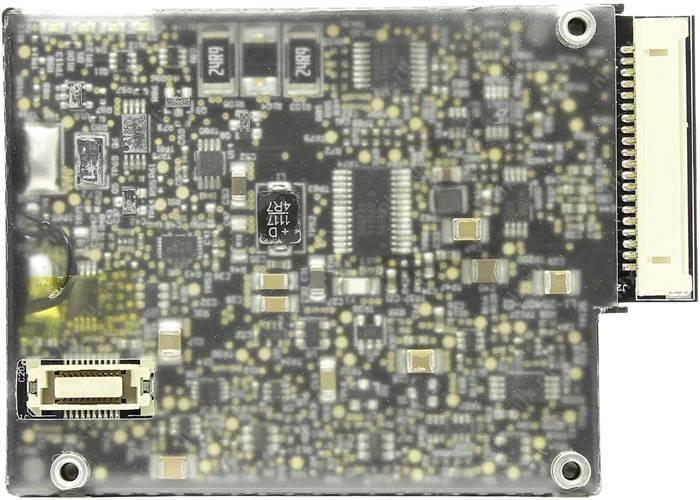

Broadcom LSI LSI00279 MegaRAID LSIiBBU09 Battery Backup Unit for MegaRAID 9265 and 9285 Series

LSI Battery Backup Unit BBU

LSI battery backup units are add-on modules that protect against data loss in the event of a server or power failure by providing emergency power to the cache memory.  When power is restored, the data not yet written to the hard drives can be retrieved from cache memory.

Key Features

• Product Name : Battery Backup Unit (bbu) - Bbu
• Marketing Information : The Megaraid Lsi00279, Used With The Megaraid Sas 9265, 9285, 9266, 9286, 9270 And 9271 Series Controllers, Provides Higher Ambient Temperature Tolerances And Increased Serviceability While Protecting The Integrity Of Cached Data In The Event
• Product Type : Battery Backed Write Cache
• Application/usage : Raid Controller

Physical Characteristics

• Width : 6.0
• Depth : 6.0
• Thickness : 2.0

Features

• Helps Protects Integrity Of Cache In The Event Of Power Or Server Failure
• Higher Maximum Ambient Temperature Tolerance Than Previous Generation Battery Backup Units
• Multiple Modes Of Operation And Retention Times
• Transparent And Shorter Learning Cycles
• Customize Mounting Location In Chassis With Remote Mounting Options

Compatibility

Lsi Megaraid Sas Raid Controller Series:

• 9265
• 9285
• 9266
• 9286
• 9270
• 9271
