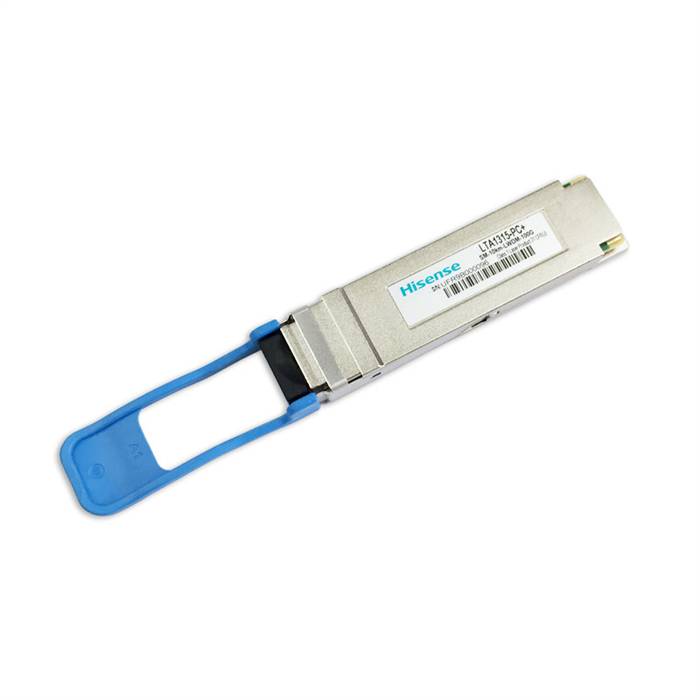

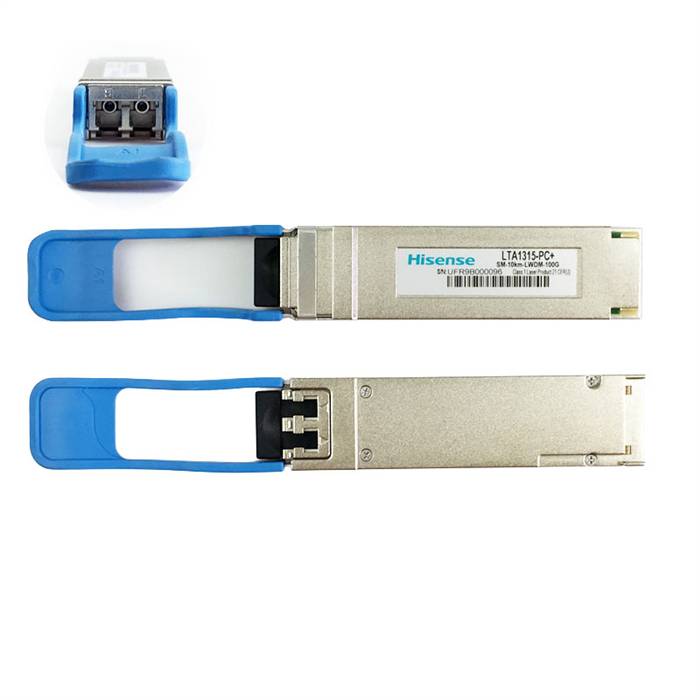

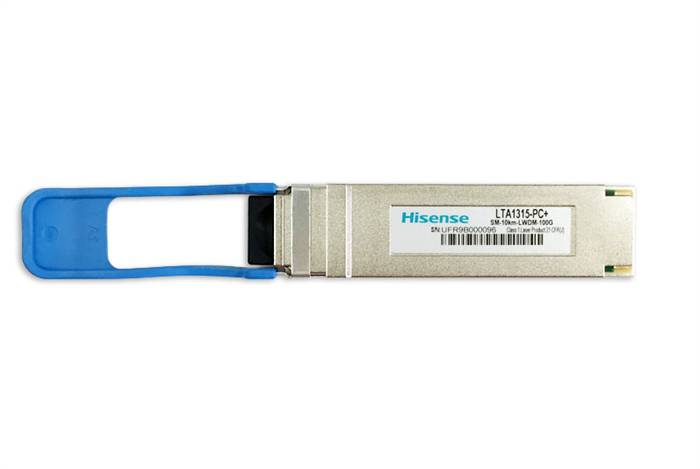

Genuine Hisense LTA1315-PC+ 100Gb/s 10km QSFP28 Optical Transceiver
Genuine Hisense LTA1315-PC+

Alternative Views:
Our Price: $1,450.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: LTA1315-PC
Qty:

Description

The Hisense LTA1315-PC+ is a low power consumption QSFP28 transceiver with high performance up to 111.8Gb/s high speed telecom and data communications over 10km single mode fiber. It is compliant with the QSFP28 MSA, IEEE802.3.ba-2010 100GBase LR4 specifications. It is offered in the commercial temperature range. The module has an aggregate link bandwidth in excess of 100Gb/s by using 4 electrical lanes , each capable of transmitting 27.95249Gb/s, 4 optical lanes, each capable of 27.95249 Gb/s.

Specifications
  • Brand: Hisense
  • Part Number: LTA1315-PC+
  • Package: QSFP28
  • Interface: LC
  • Reach: 10km
  • Temp: C (0~70°C)
  • Fiber Type: Single-mode
  • Wavelength: LAN-WDM
  • Rate: 100Gb/s
  • Tx Output: -0.6dBm~4dBm
  • Rx Input: -8.4dBm(OMA)

Features
  • 4 electrical, 4 optical lanes
  • Aggregate data rate in excess of 111.8 Gb/s
  • Up to 10km link on SMF single-mode fiber
  • Cooled 4x28 G LAN-WDM DML Laser Array / Pin PD array
  • I2C Interface
  • QSFP28 MSA compliance
  • Power consumption < 4W
  • Standards
    • IEEE 802.3ba 100GBASE LR4
    • ITU-T G.959.1  2012
    • QSFP MSA
