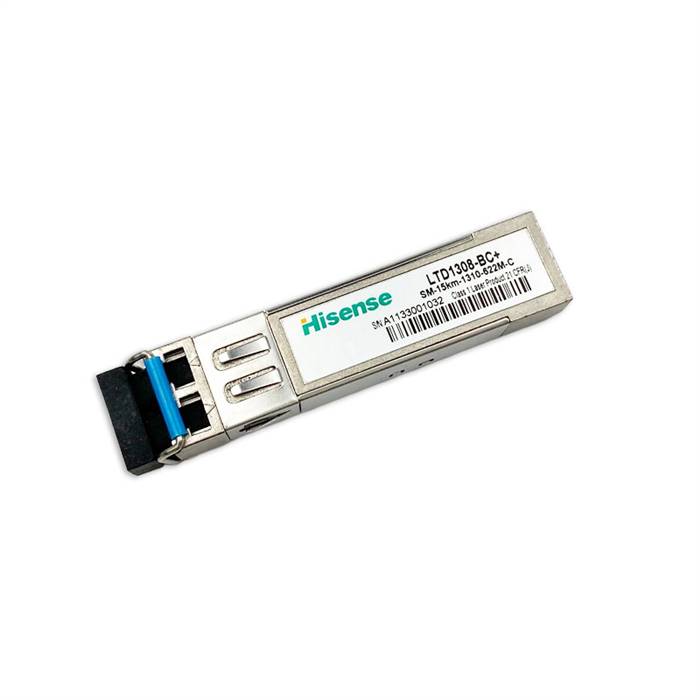

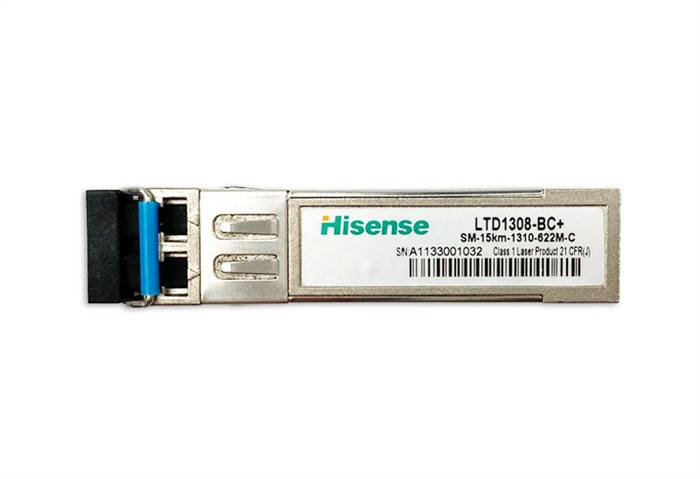

Genuine Hisense LTD1308-BC+ 622M 1310nm SM 15km SFP Transceiver Module
Genuine Hisense LTD1308-BC+

Alternative Views:
Our Price: $10.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: LTD1308-BC
Qty:

Description

The Hisense LTD1308-BC+ is a high performance small form factor pluggable SFP single mode transceiver for 622Mbps SONET OC-12 and SDH STM-4 Intermediate Reach (IR-1) application. It is fully comply with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment.

The 622Mbps SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features
  • Hot-pluggable SFP footprint
  • Support Up to 622Mb/s data links
  • Compliant with SFP MSA standard
  • 1310nm FP laser transmitter and InGaAs PIN receiver
  • Up to 15km on 9/125µm SMF
  • Single 3.3V power supply
  • Support Digital Diagnostic Monitoring interface
  • Duplex LC connector
  • Low power dissipation
  • Metal enclosure provides lower EMI
  • ROHS compliant and Lead-Free

Specifications
  • Part Number: LTD1308-BC+
  • Form Factor: SFP
  • Data Rate: 622 Mb/s
  • Wavelength: 1310 nm
  • Fiber Type: SMF
  • Max Distance: 15 km
  • Optical Components: FP/PIN
  • Transmitter Power: -15?-8 dBm
  • Extinction ratio: > 9 dB
  • Receiver Sensitivity: < -28 dBm
  • Receiver Overload: > -3 dBm
  • Connector: Duplex LC
  • Digital Diagnostic Monitoring: Yes
  • Applications
    • Fast Ethernet
    • OC-3/STM-1 SDH/SONET
    • OC-12/STM-4 SDH/SONET
    • Other Optical Links
