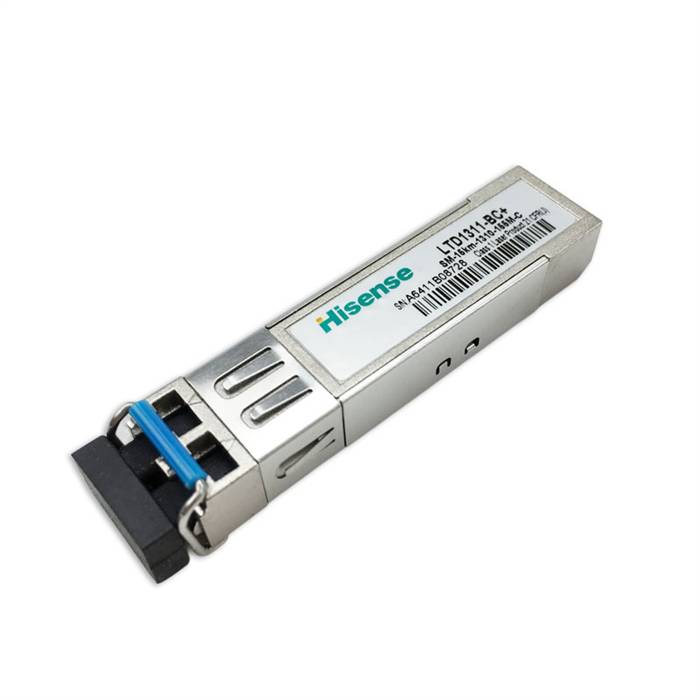

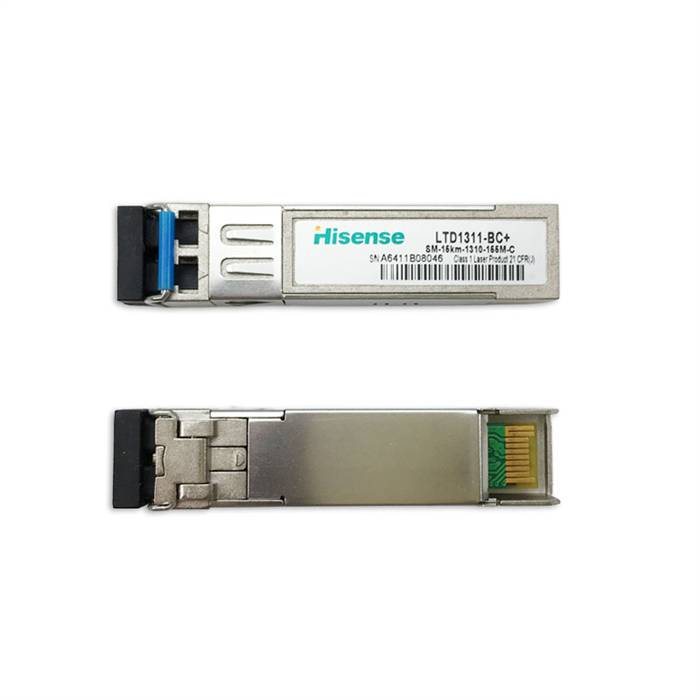

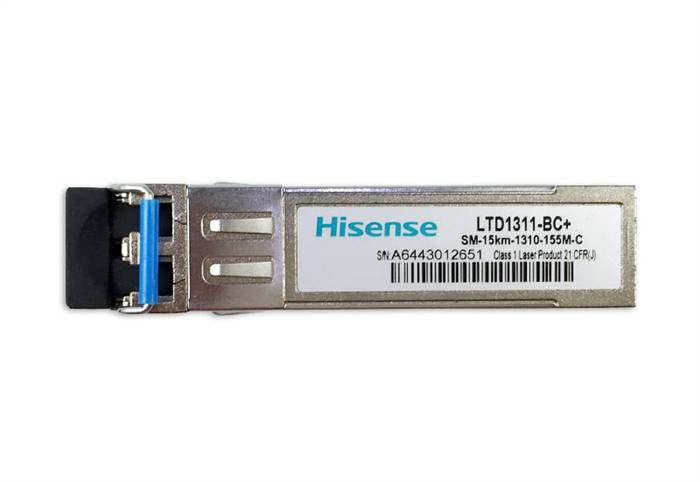

Genuine Hisense LTD1311-BC+ SONET OC-3 / SDH STM-1 1310nm 155Mb/s 15km SFP Optical Transceiver
Genuine Hisense LTD1311-BC+

Alternative Views:
Our Price: $20.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: LTD1311-BC
Qty:

Description

The LTD1311-BC+ SFP SONET/SDH LC duplex transceiver is intended for 15km reach service in 155Mb/s 1310nm single mode high-speed telecommunications equipment. It meets the requirements of Telcordia SONET OC-3/IR-1 and ITU-T G.957 SDH STM-1/S-1.1, consumes low power, operates from a 3.3V DC power supply and is offered in the commercial temperature ranges. The industry standard 2x10 small form pluggable (SFP) package.

Specifications
  • Part Number: LTD1311-BC+
  • Package: SFP
  • Interface: LC
  • Reach: 15km
  • Temp: C (0~70°C)
  • Fiber Type: Single-mode
  • Wavelength: 1310nm
  • Rate: 155Mb/s
  • Tx Output: -15~-8dBm
  • Rx Input: -31dBm

Features
  • 2x10 SFP MSA compliant package
  • High performance 1310nm F-P laser
  • High sensitivity PIN/TIA optical receiver
  • BER < 1X10^-10
  • PRBS 2^23- 1 NRZ test pattern
  • Standards
    • Telcordia SONET OC-3/IR-1 compliant
    • ITU-T G.957 SDH STM-1/S-1.1 compliant
