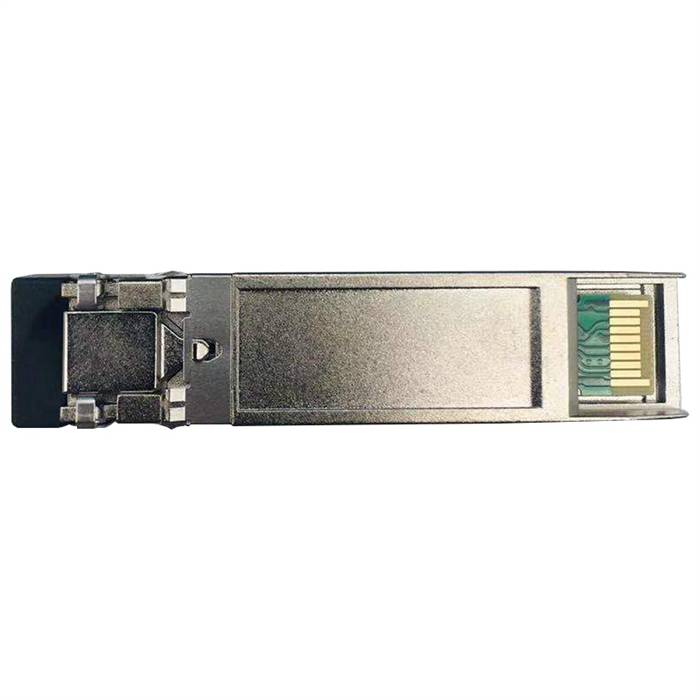

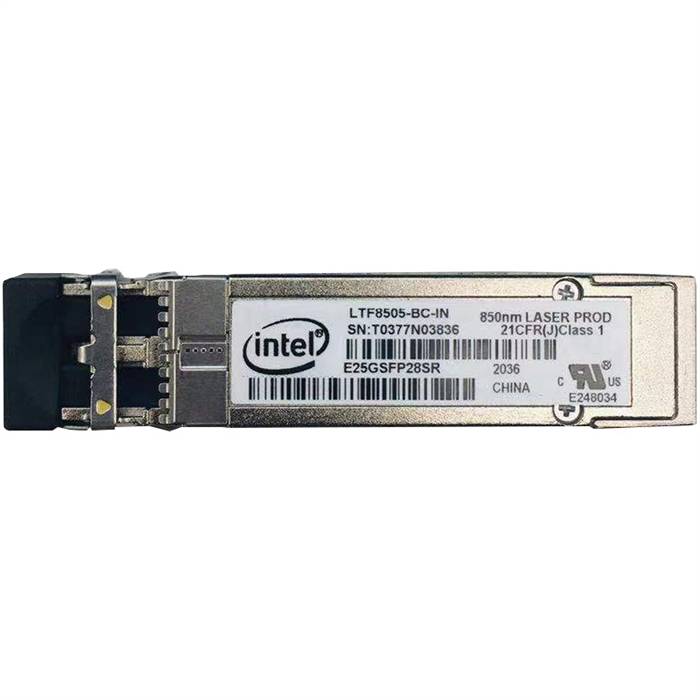

Intel LTF8505-BC-IN 25GB SFP+ Ethernet Optics SFP28 Transceiver Module

The Intel LTF8505-BC-IN SFP28 transceiver is intended for 100m reach service from 25.78Gb/s 850nm multi mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC pow er supply .It is compliant with SFF-8431 and SFF-8432.

Features

• LC Duplex optical interface
• Reach: max up to 100m on Om4 MMF
• Bit rate:25.78Gb/s
• +3.3 V power supply
• Low DC power consumption
• 2x10 SFP+  MSA compliant package
• High performance 850 nm VCSEL laser
• High sensitivity PIN/TIA optical receiver
• Multi Mode operation
• RoHS compliance

Specifications

• Brand: Intel
• Part Number: LTF8505-BC-IN
• Package: SFP28
• Interface: LC
• Reach: 100m
• Temp: Commercial
• Fiber Type: Multi-mode
• Wavelength: 850nm
• Rate: 25Gb/s
• Tx Output: -8.4~2.4dBm
• Rx Input: -5.2dBm(OMA)
