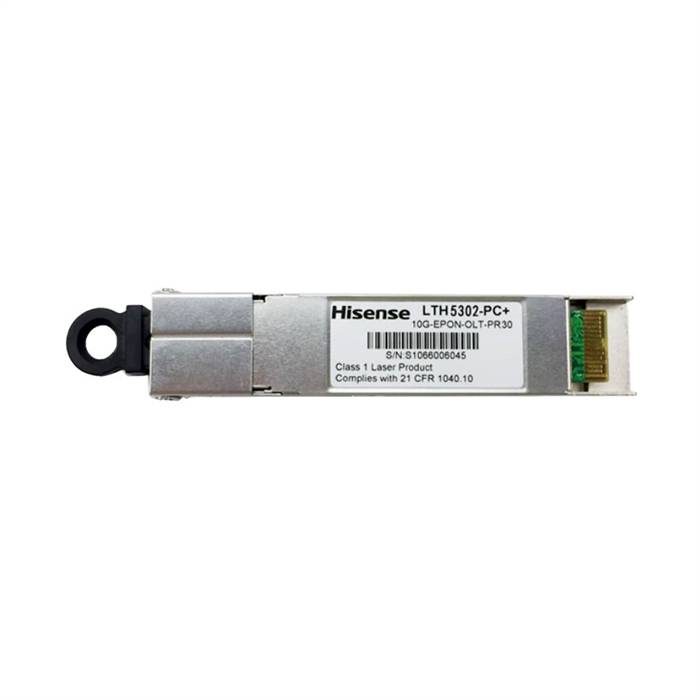

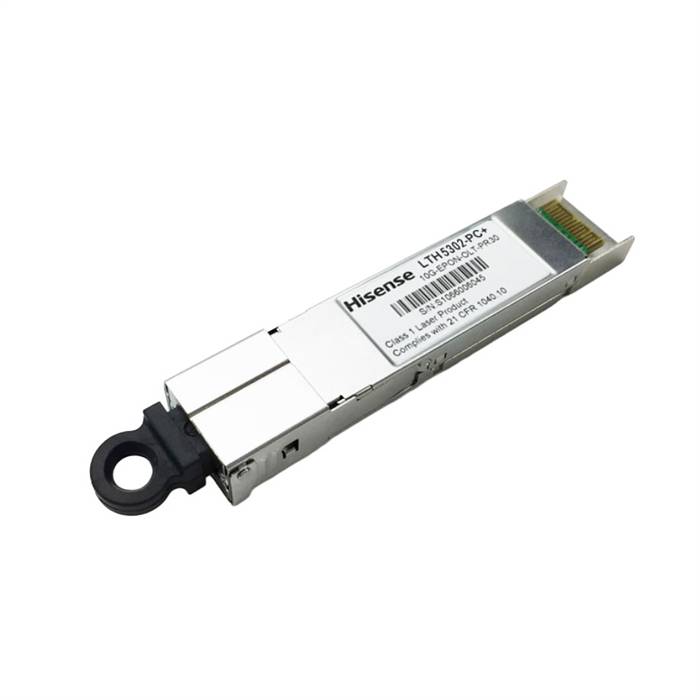

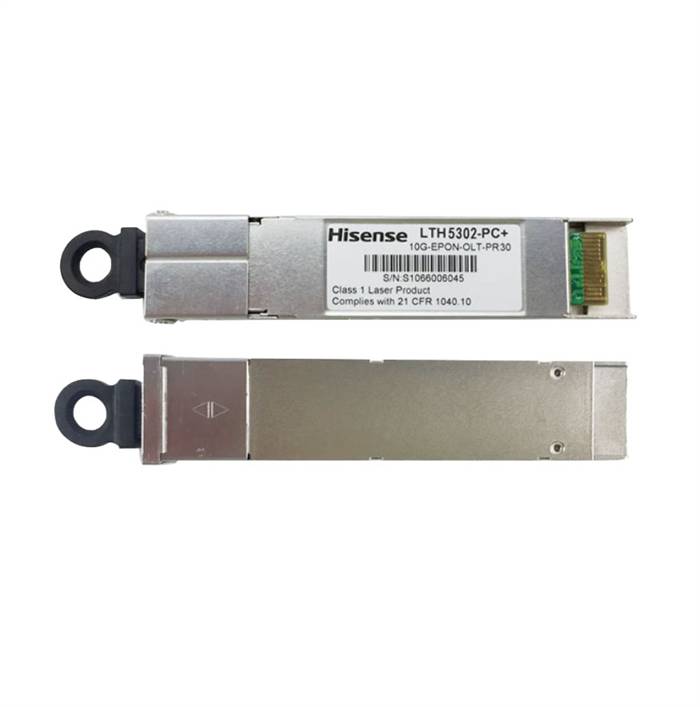

Hisense LTH5302-PC+ Four Lambda 10G / 1G PR30 XFP 10G EPON OLT Transceiver

The LTH5302-PC+ is a combination of 10G EPON OLT and 1G EPON OLT optical transceivers in  a XFP housing. The 10G bidirectional link is configured with 1270nm/1577nm optics and the 1G link is configured with 1310nm/1490nm optics. The 1270nm and 1310nm optical burst mode receivers incorporate APD/TIA optics for maximum sensitivity. The 10G transmitter incorporates a 1577nm EML DFB laser assembly and the 1G transmitter incorporates a 1490nm DFB laser assembly. The transmitters can be controlled by the LVTTL Tx_DISABLE function and the receivers incorporates the LVTTL Rx_LOS output. The LTH5302 is designed to support up to 32 subscribers over distances of up to 20km.

Applications

• 10 Gigabits Ethernet Access networks
• Fiber to the Home
• Fiber to the Building
• Fiber to the Curb

Features

• XFP Package
• 3.3V DC power supply
• 4 Lambda
• SC receptacle optical connector
• Hot pluggable
• 2x15 XFP Electrical Interface
• IEEE802.3ah PX-20D compliant
• IEEE802.3av PR-30D compliant

Specifications

• Product Name: 10G EPON OLT PR30
• Part Number: LTH5302-PC+
• Package: XFP
• Interface: SC/UPC
• Reach: 20km
• Temp: C
• Tx Output
• 2~5dBm
• 2~7dBm
• Tx Rate
• 10.3125Gb/s
• 1.25Gb/s
• Tx Wavelength
• 1577nm
• 1490nm
• Rx Input
• -28dBm
• -29.78dBm
• Rx Rate
• 10.3125Gb/s
• 1.25Gb/s
• Rx Wavelength
• 1270nm
• 1310nm
