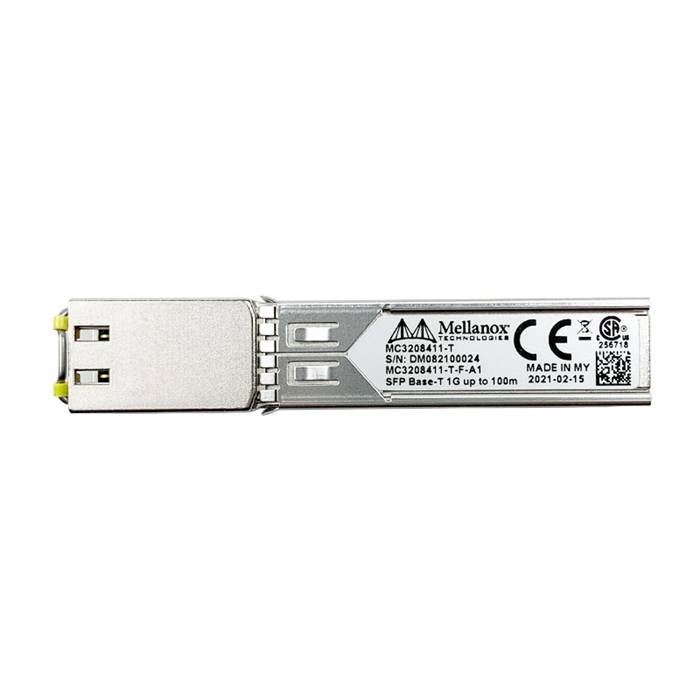

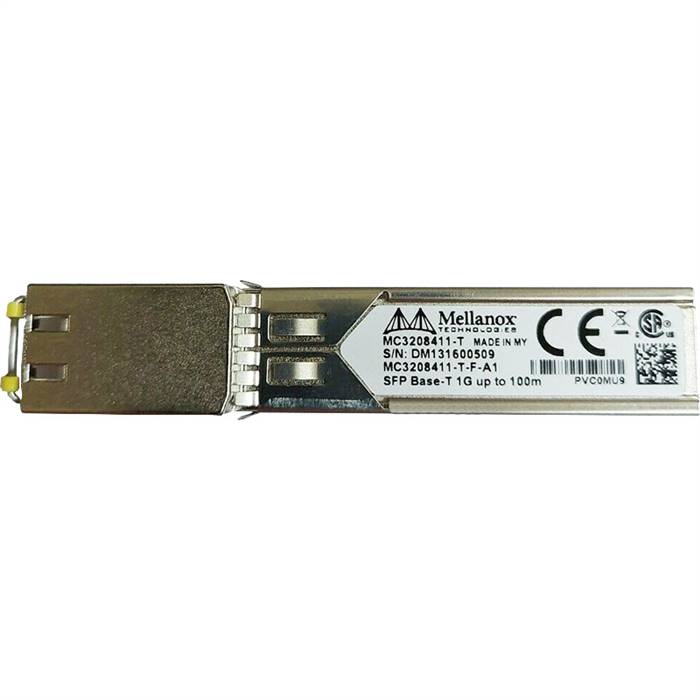

Mellanox MC3208411-T SFP module, ETH 1GbE, 1Gb/s, Base-T, up to 100m
MC3208411-T - NVIDIA Mellanox

Alternative Views:
Our Price: $115.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: MC3208411-T
Qty:

Description Datasheet

1GbE SFP 1000BASE-T Transceiver

NVIDIA MC3208411-T 1000BASE-T copper SFP modules provide reliable transport for aggregate data rates of up to 1.25GbE. These modules are compatible with the Gigabit Ethernet and 1000BASE-T standards.

The 1000BASE-T physical layer IC (PHY), including all settings and features, can be accessed via I2C.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

Highlights
  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Extended case temperature range (0C to +85C)
  • Fully metallic enclosure for low EMI
  • Low power dissipation (1.05 W typ.)
  • Compact RJ-45 connector assembly
  • RoHS compliant and lead free
  • Access to physical layer IC via 2-wire serial bus
  • 10/100/1000 BASE-T operation in host systems with SGMII interfaces
  • 1.25 Gigabit Ethernet over Cat 5 cable

Specifications
  • Technology : Ethernet
  • Max Speed : 1GbE
  • Connector Type : SFP
  • Transceiver Reach : up to 100m
  • ECCN : 5A991
