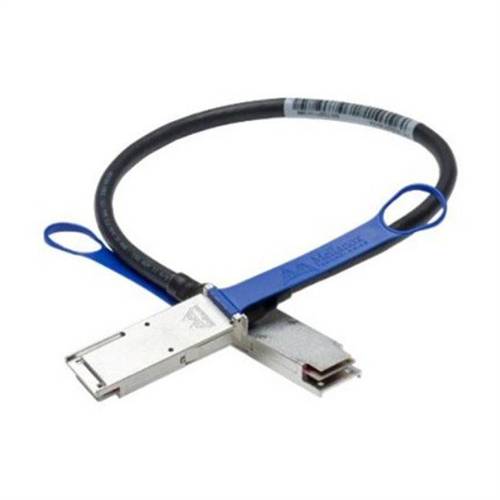

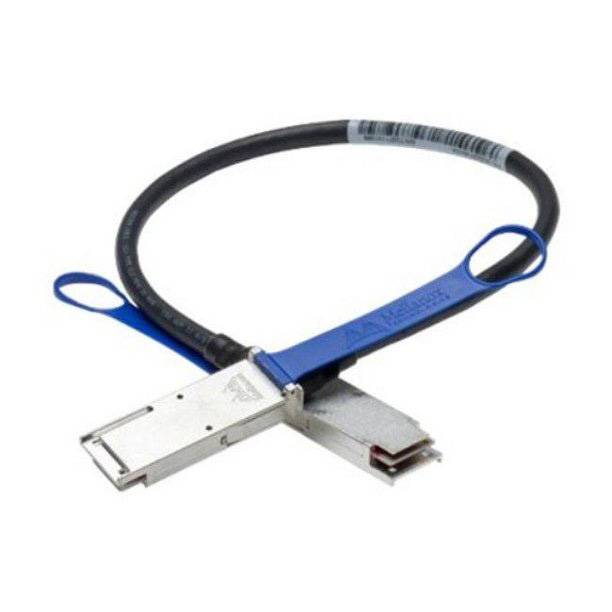

Mellanox MCP1600-C001 Passive Copper cable MCP1600-C001E30N, ETH 100GbE, 100Gb/s, QSFP28, 1m, Black, 30AWG
MCP1600-C001 - NVIDIA Mellanox MCP1600-C001E30N

Our Price: $145.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: MCP1600-C001
Qty:

Description Datasheet

Mellanox 100GbE QSFP28 Direct Attach Copper Cable MCP1600-C001E30N

Mellanox direct attach copper (DAC) passive cable assemblies are high speed, cost-effective alternatives to fiber optics in 100Gb/s Ethernet applications.

Mellanox QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.

Mellanox’s unique quality, passive, copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights
  • Up to 100Gb/s data rate
  • Ultra-low crosstalk for improved performance; BER better than 1E-15
  • Serial number printed on each back-shell label
  • Tested in an end-to-end system
  • SFF-8665 compliant QSFP28
  • Hot pluggable
  • RoHS compliant
  • Available in PVC (PolyVinal Chloride) or Low-Smoke Zero Halogen (LSZH) compliant
  • SFF-8636 compliant I2C management interface
