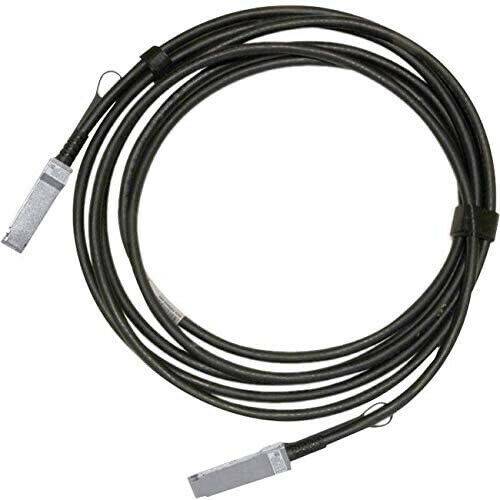

Mellanox MCP1600-E005E26 Passive Copper cable, IB EDR, up to 100Gb/s, QSFP28, 5m, Black, 26AWG

Our Price: $370.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: MCP1600-E005E26

Qty:

Description

Datasheet

Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable

Mellanox MCP1600-E0xxEyy DAC cables are high speed, cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications.

Mellanox QSFP28 passive copper cables(1) contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.

Mellanox’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights

Up to 100Gb/s data rate
SFF-8665 compliant QSFP28
Operating case temperature 0-70°C
Single 3.3V supply voltage
Hot pluggable
RoHS compliant
LSZH (Low Smoke Zero Halogen)jacket
LF (Lead Free) HF (Halogen Free) PCB
SFF-8636 compliant I2C managementinterface
