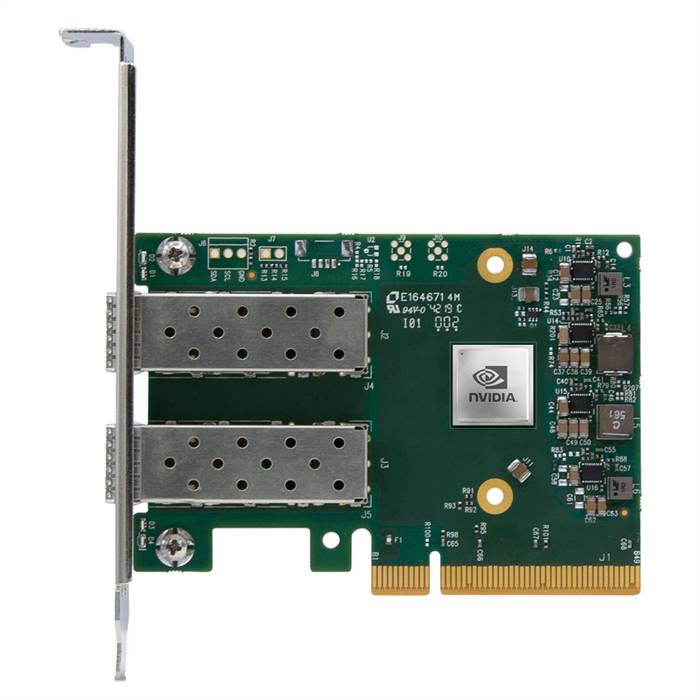

Mellanox MCX631102AN-ADAT ConnectX-6 Lx 25GbE Dual-port SFP28 PCIe 4.0 x8 HHHL Ethernet Adapter Card, Tall Bracket

Specifications

• Physical
• Size: 3.79in. x 2.71in (96.30mm x 68.90mm)
• Connector: Dual SFP28 Ethernet (copper and optical)
• Protocol Support
• Data Rate: Ethernet 1/10/25 Gb/s
• Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
• PCI Express Gen 3.0/4.0: SERDES @ 16.0GT/s, 8 lanes (2.0 and 1.1 compatible)

• Power and Airflow (a)

• Voltage: 12V
• Power                                         Cable                     PCIe Gen 3.0             PCIe Gen 4.0

• Typical Power(b)                           Passive Cables             10.73W                 11.53W
• Maximum Power                         Passive Cables              12.14W                 12.94W
• Voltage: 3.3Aux
• Maximum current: 100mA
• Airflow Requirements @ 55C (d)

• Cable Type         Hot Aisle - Heatsink to Port
• Passive Cable 300LFM
• Active 0.8W Cable 350LFM
• Active 1.5W Cable(e) 400LFM
• Environmental

• Temperature

• Operational: 0°C to 55°C
• Non-operational: -40°C to 70°C
• Humidity
• Operational: 10% to 85% relative humidity

• Non-operational: 10% to 90% relative humidity
• Altitude (Operational) 3050m

• Regulatory

• Safety CB / cTUVus / CE
• EMC CE / FCC / VCCI / ICES / RCM
• RoHS RoHS compliant
