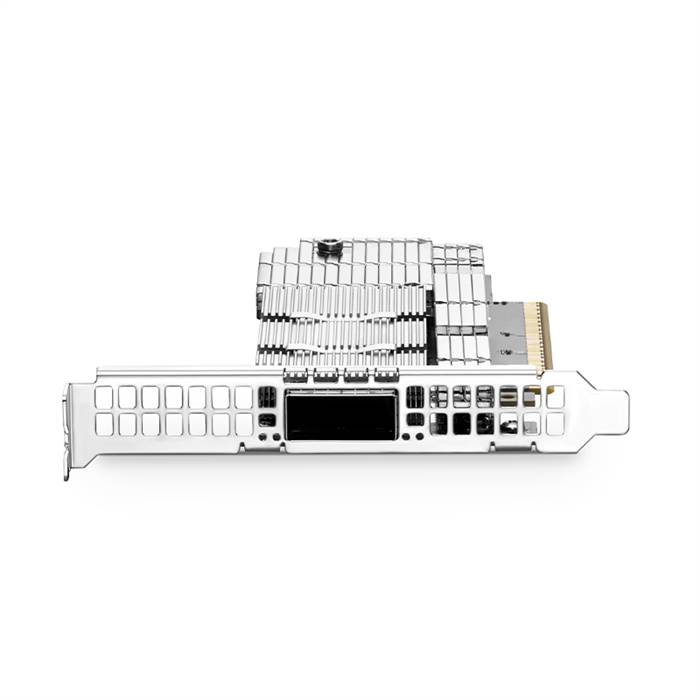

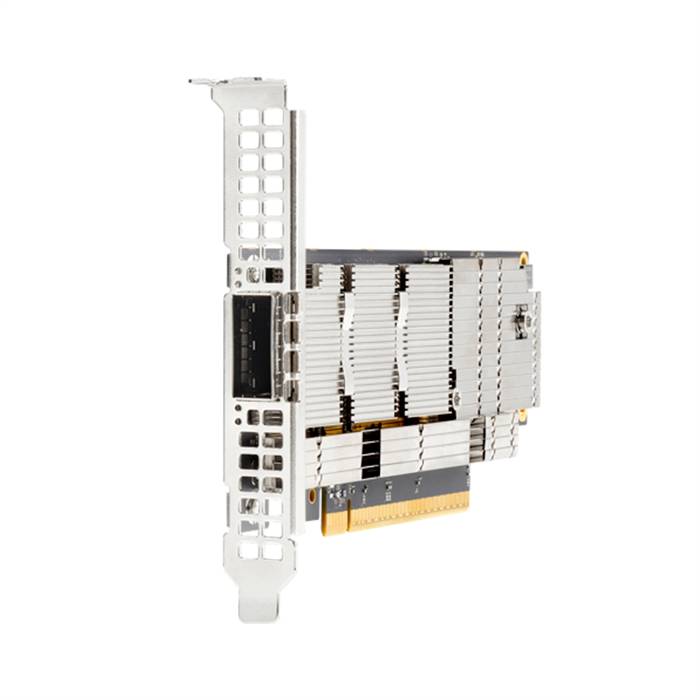

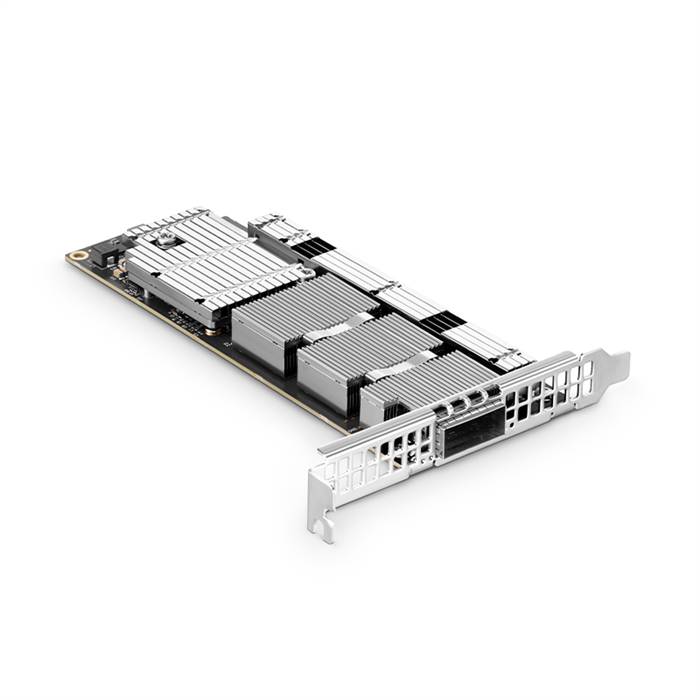

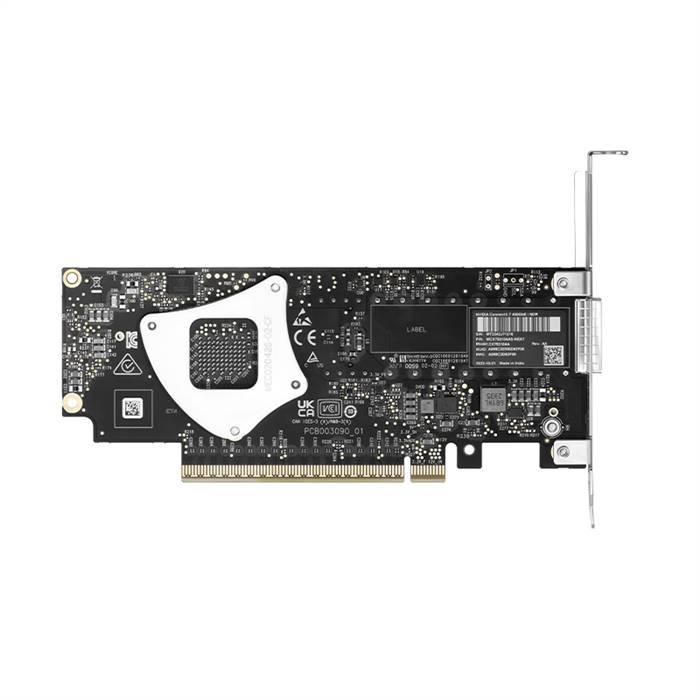

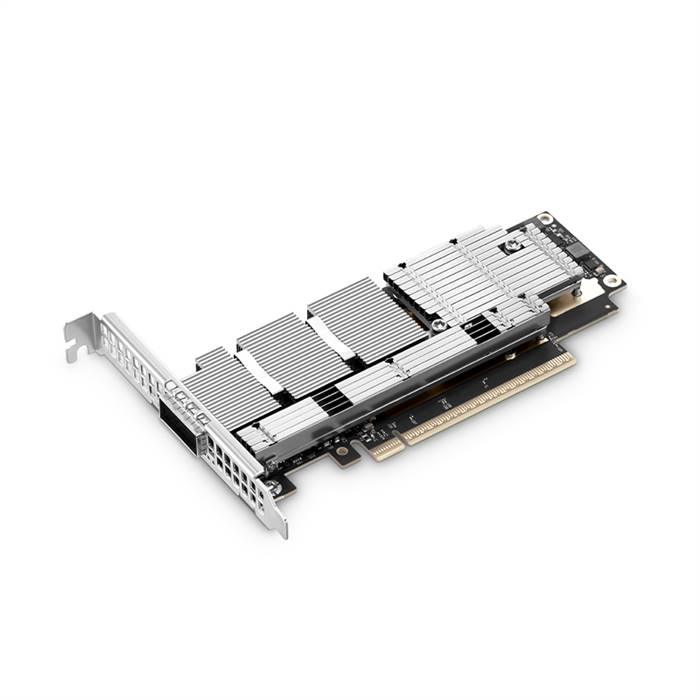

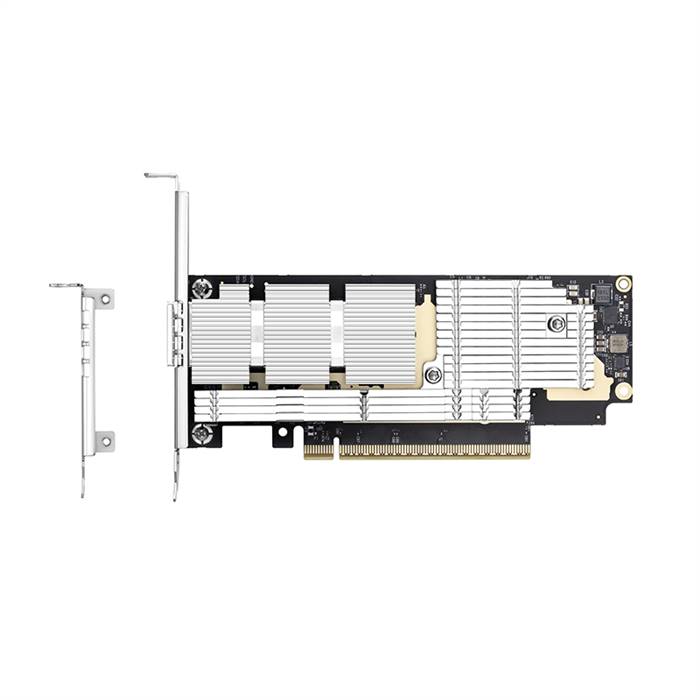

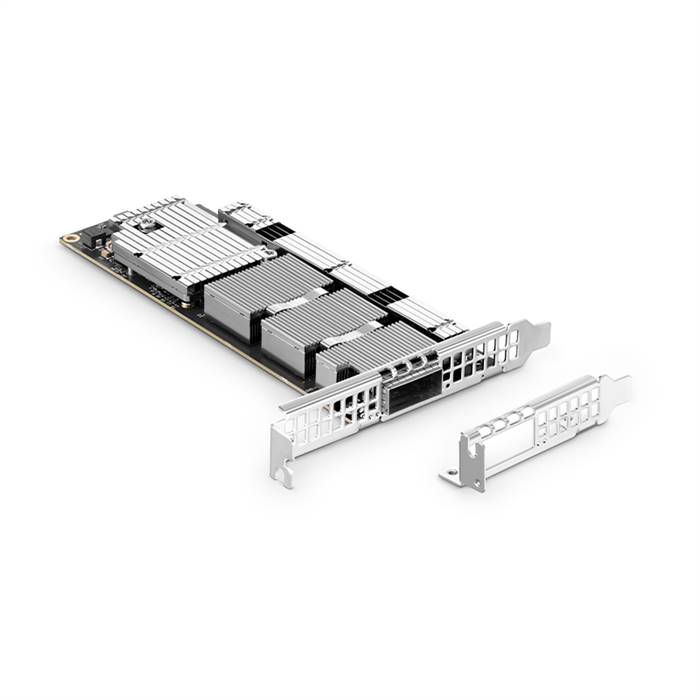

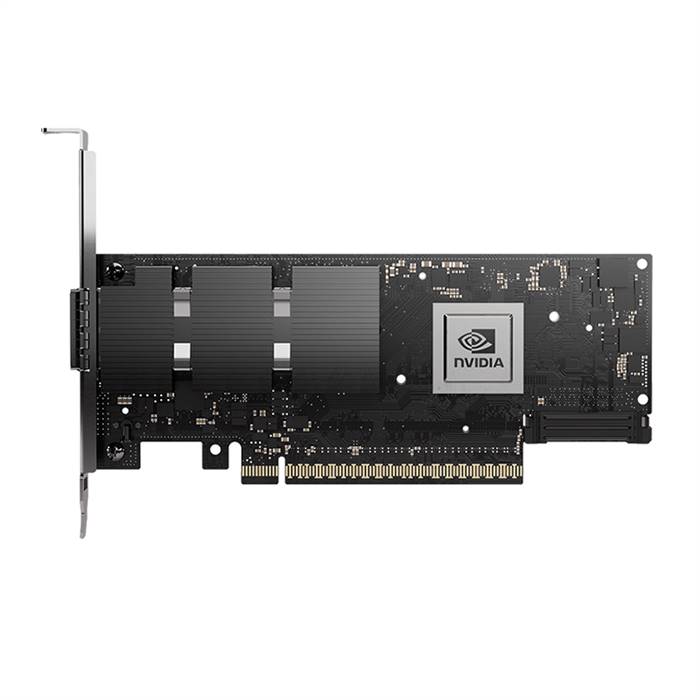

Mellanox MCX75310AAS-NEAT ConnectX-7 400GbE Single Port OSFP PCI Express 5.0 x16 Network Adapter Specifications - Physical: Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
- Interfaces
- PCI Express Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible)
- Networking Port: Single OSFP InfiniBand and Ethernet
- Data Rate
- InfiniBand (Default Mode): NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
- Ethernet: 400/200/100/50/40/10/1 Gb/s Ethernet
- Protocol Support
- InfiniBand: IBTA v1.5a
- Auto-Negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane).
- Ethernet: 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI
- Capabilities
- MCX75310AAC-NEAT Secure Boot Enabled, Crypto Enabled
- MCX75310AAS-NEAT Secure Boot Enabled, Crypto Disabled
- Electrical and Thermal Specifications
- Voltage: 12V, 3.3VAUX
- Maximum current: 100mA
- Maximum power available through OSFP port: 17W (Not thermally supported)
- Electrical and thermal specifications are provided in NVIDIA ConnectX-7 Electrical and Thermal Specifications document, which is available at NVOnline following login.
- Environmental
- Temperature
- Operational: 0°C to 55°C
- Non-operational: -40°C to 70°C
- Humidity
- Operational: 10% to 85% relative humidity
- Non-operational 10% to 90% relative humidity
- Altitude (Operational) 3050m
- Regulatory
- Safety: CB / cTUVus / CE
- EMC: CE / FCC / VCCI / ICES / RCM / KC
- RoHS: RoHS Compliant
|
|
|
 |
|
 |
|
