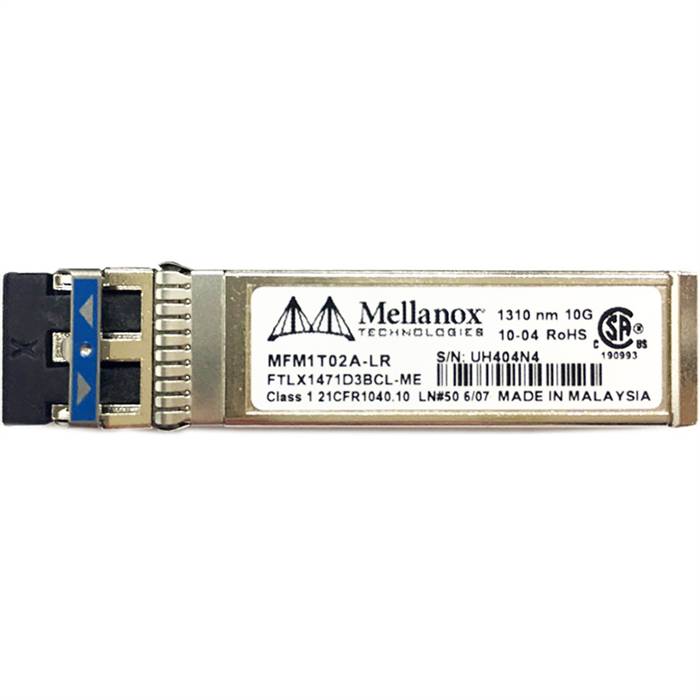

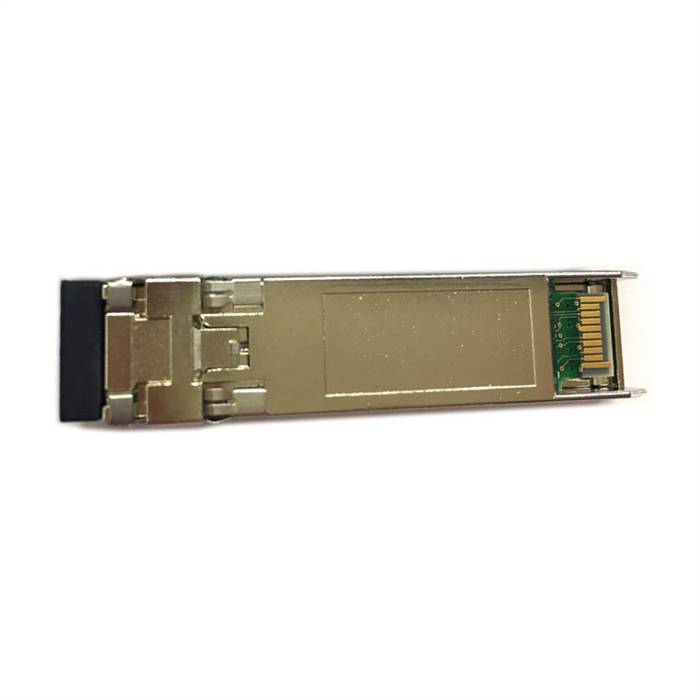

Mellanox MFM1T02A-LR SFP+ optical module for 10GBASE-LR
MFM1T02A-LR - NVIDIA Mellanox

Alternative Views:
Our Price: $105.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: MFM1T02A-LR
Qty:

Description Datasheet

10GbE SFP+ 10GBASE-LR Optical Transceiver

The Mellanox 10.3125Gb/s SFP+ module contains one fiber optic transceiver, operating at data rates of up to 10.3125Gb/s.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability

Highlights
  • 10.3125Gb/s data rate
  • 1W maximum power consumption
  • SFF-8431 and SFF-8432 compliant
  • IEEE 802.3ae 10GBASE-LR compliant
  • Operating case temperature of 0°C to 70°C
  • 3.3V power supply
  • BER lower than 1E-15
  • Hot pluggable
  • Class 1 laser safety
  • Maximum link length of 10km
  • Duplex LC connector
  • RoHS compliant

Specifications
  • Configuration: 10GbE LR
  • Configuration: SFP+
  • Application: 1x 10G-NRZ Serial
  • Connector: 2-fiber duplex LC
  • Max Reach: 10km
  • Wavelength: 1310nm single-mode
  • Part Number: MFM1T02A-LR
