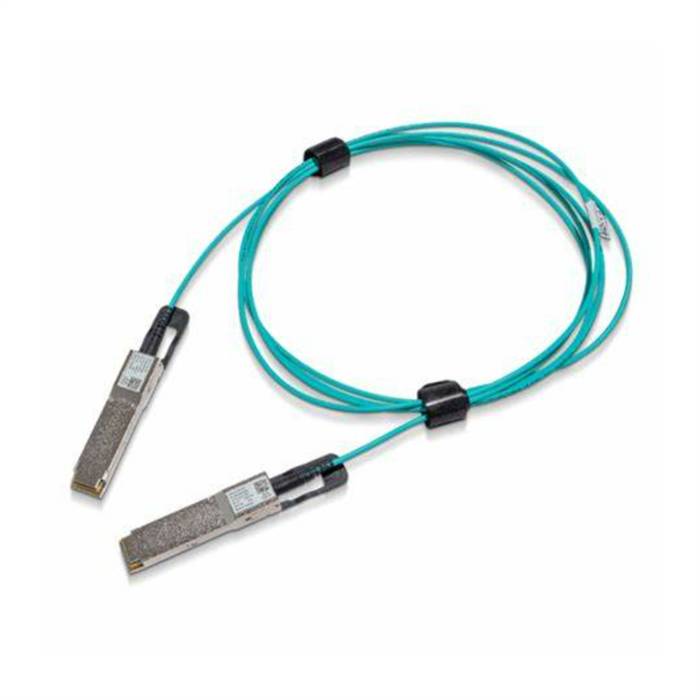

Mellanox MFS1S00-H010V Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56, 10m

The NVIDIA MFS1S00 is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) systems.

The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.

The MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.

The MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gb/s rates.

NVIDIA's unique quality cable solutions provide power-efficient connectivity for data center interconnects. It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

Key Features

• Supports IBTA IB HDR
• Up to 200Gb/s
• 4x 50Gb/s PAM4 modulation
• Programmable Rx output amplitude and pre-emphasis
• SFF-8665 compliant QSFP56 port
• Single 3.3V power supply
• 5.0W power consumption (typ., each end, with retiming)
• Up to 100m length
• Hot pluggable
• RoHS compliant
• SFF-8636 compliant I2C management interface

Applications

• Supports 200Gb InfiniBand HDR Systems
• Supports 200 GbE between SN3700 and SN4600 switches
