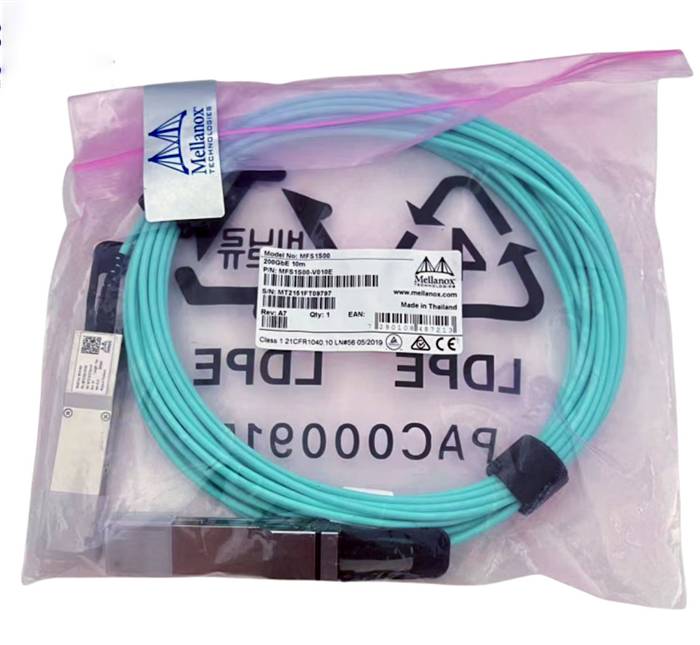

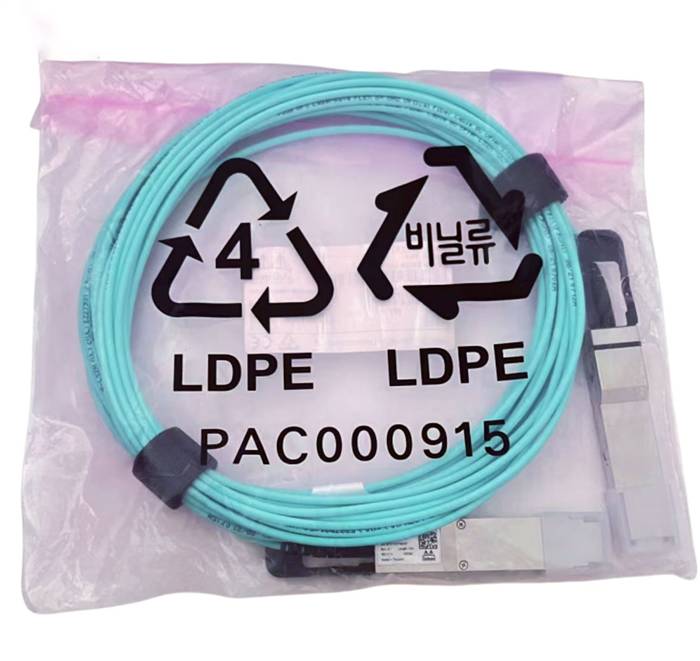

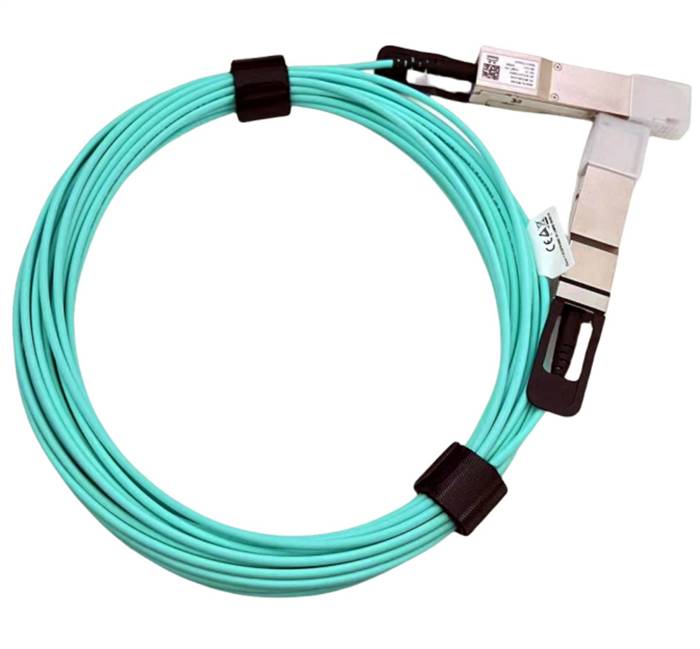

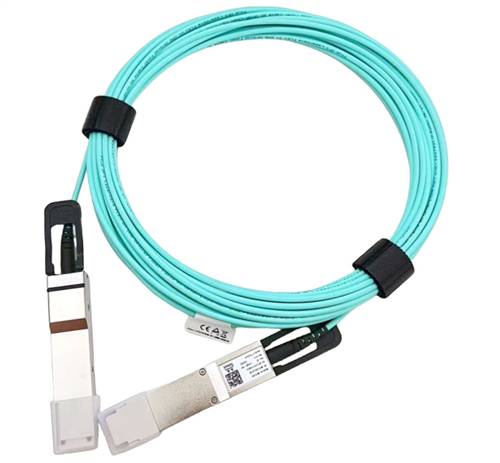

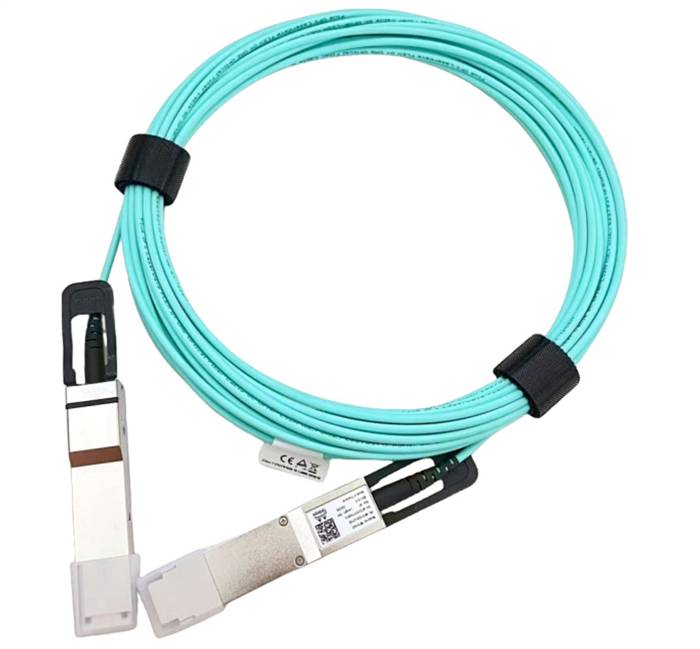

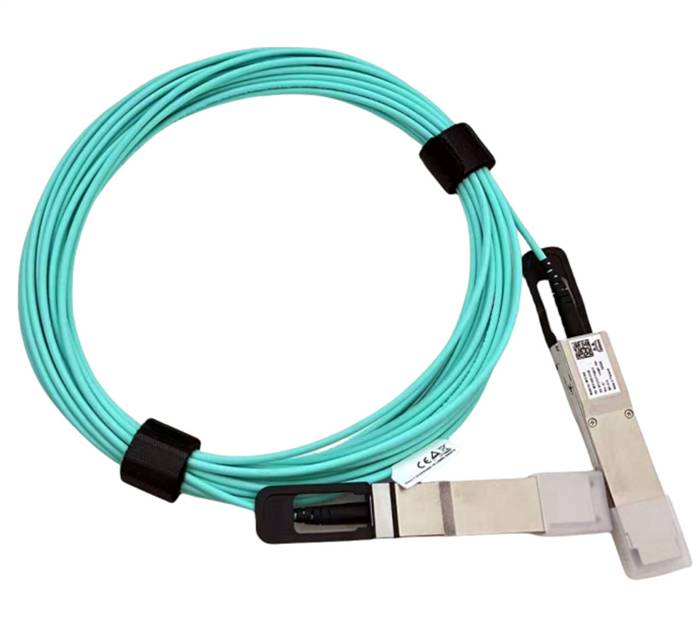

Mellanox MFS1S00-V010E 200GbE QSFP56 MMF Active Optical Cable, 10m

Mellanox MFS1S00-V010E is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s Ethernet systems. MFS1S00-VxxxE AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.

MFS1S00-V010E has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.

MFS1S00-V010E offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gbp/s rates.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

Mellanox's unique quality active fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.

Key Features

• 200GbE data rate
• 4x 50Gb/s PAM4 modulation
• Programmable Rx output amplitude and pre-emphasis
• SFF-8665 compliant QSFP56 port
• Single 3.3V power supply
• 4.35W power dissipation (typ., each end, with retiming)
• Enables BER (Bit Error Rate) better than 1E-15 with Mellanox systems
• Up to 100m length
• Hot pluggable
• RoHS compliant
• SFF-8636 compliant I2C management interface
