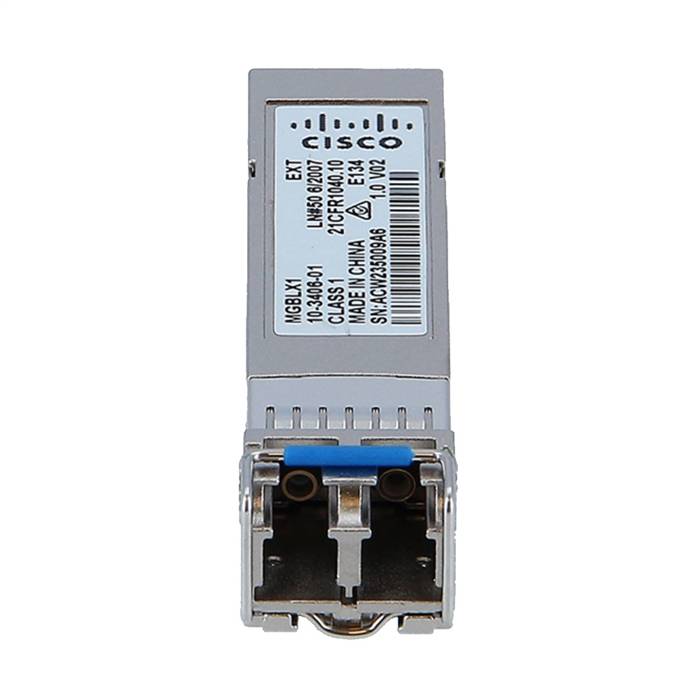

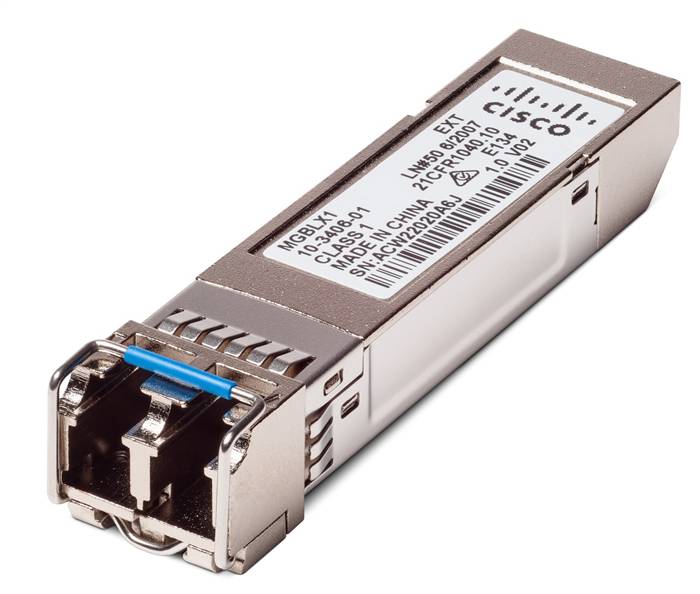

Linksys MGBLX1 1000BASE-LX SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 10 km

Cisco Linksys MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) transceivers are easy-to-install modules that provide a simple way to add fiber connectivity or an extra Gigabit Ethernet port to your Cisco 100, 200, 300, and 500 Series switches. The transceivers are available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 40 kilometers.

Highlights

• Adds fiber-optic connectivity to Cisco 100 to 500 Series switches
• High-performance link for connecting networks within a building or small business area
• Easy removal with an integrated spring latch
• Hot swappable to maintain network availability
• Flexibility of media and interface choice on a port-by-port basis, so you can “pay as you populate”

Specifications

• Model: MGBLX1
• Description: 1000BASE-LX SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 10 km
• Media: Single-mode fiber (SMF)
• Application: 1000BASE-LX
• Connector type: Duplex LC
• Wavelength typical (Tx): 1310 nm
• Wavelength range (Rx): 1310 nm
• Maximum distance: Up to 10 km
• Average output power: -9.5 dBm to -3 dBm
• Receiver sensitivity: -20 dBm (typ)
• Receiver overload: -3 dBm
• Dimensions (W x H x D): 13.4 x 8.5 x 55.7 mm (0.53 x 0.33 x 2.19 in.)
• Unit weight: 0.018 kg (0.63 oz)
• Power: 1W (max)
• Operating temperature: 32º to 158ºF (0º to 70ºC)
• Storage temperature: -40º to 185ºF (-40º to 85ºC)
• Operating humidity: 10% to 85% noncondensing
• Storage humidity: 5% to 90% noncondensing

Compatibility

The Cisco MGE SFP transceiver MGBLX1 is supported across a variety of Cisco Small Business switches.

• 110 Series Unmanaged Switches
• 220 Series Smart Switches
• 250 Series Smart Switches
• 350 Series Managed Switches
• 350X Series Stackable Managed Switches
• 550X Series Stackable Managed Switches
