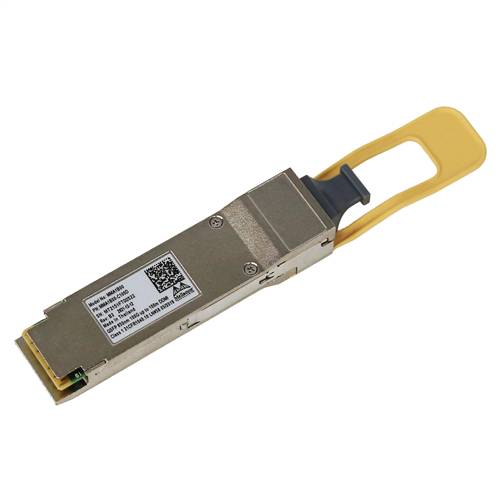

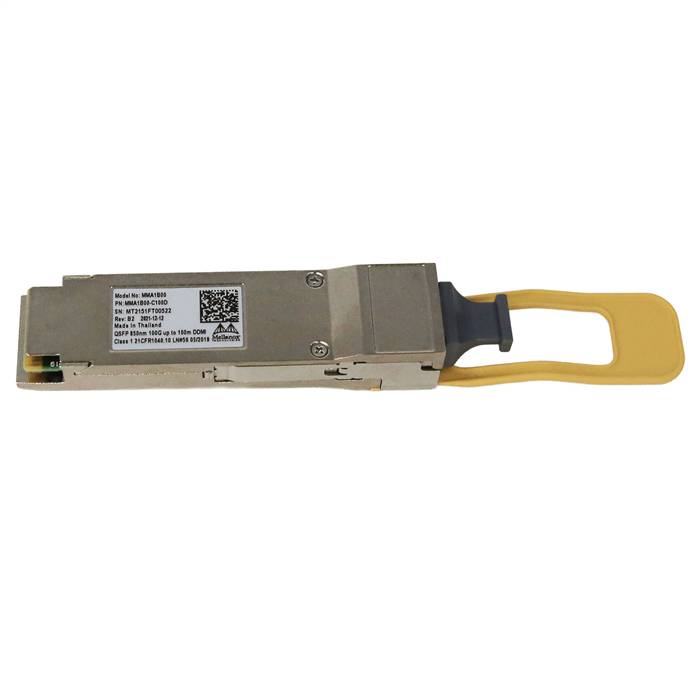

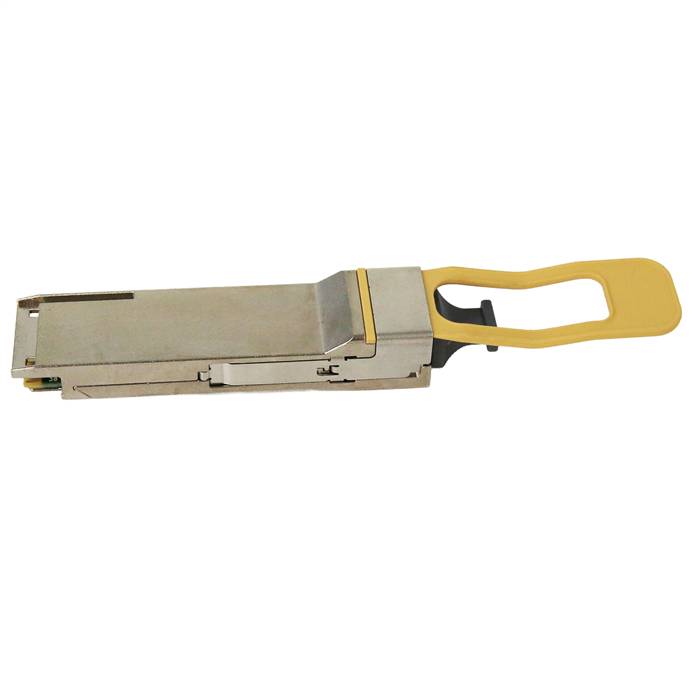

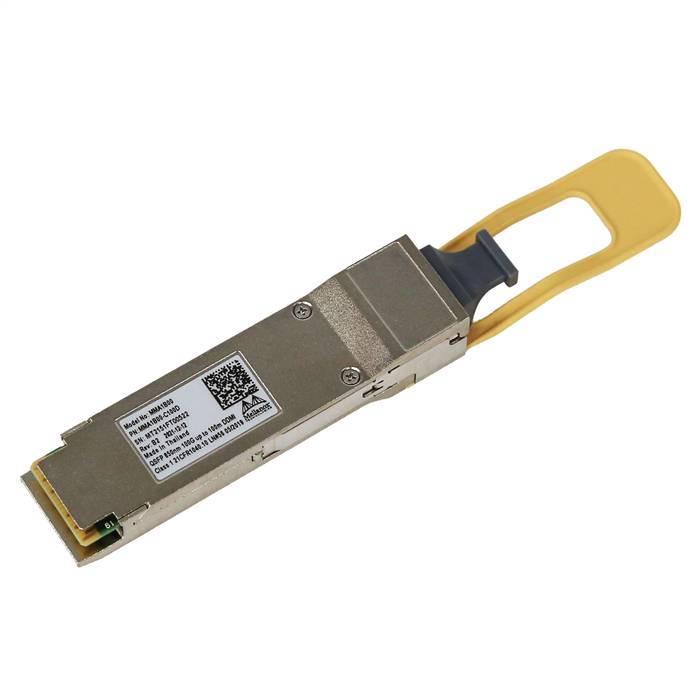

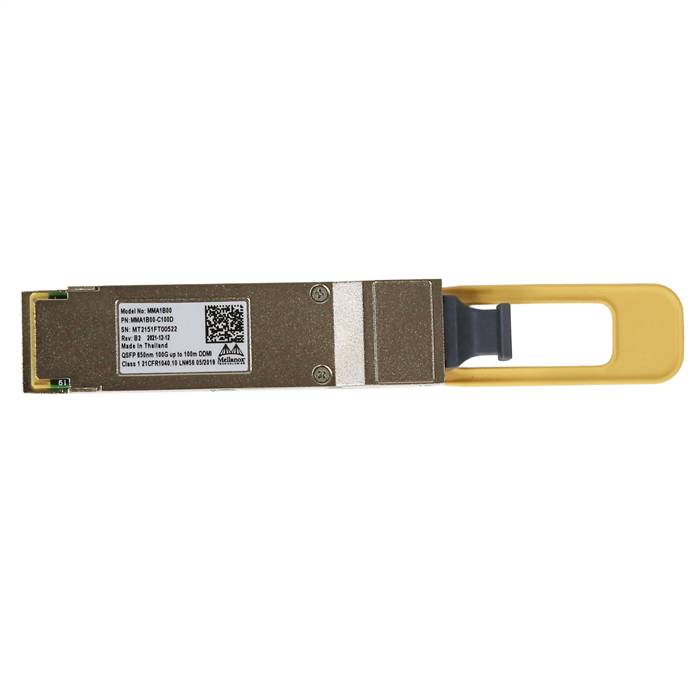

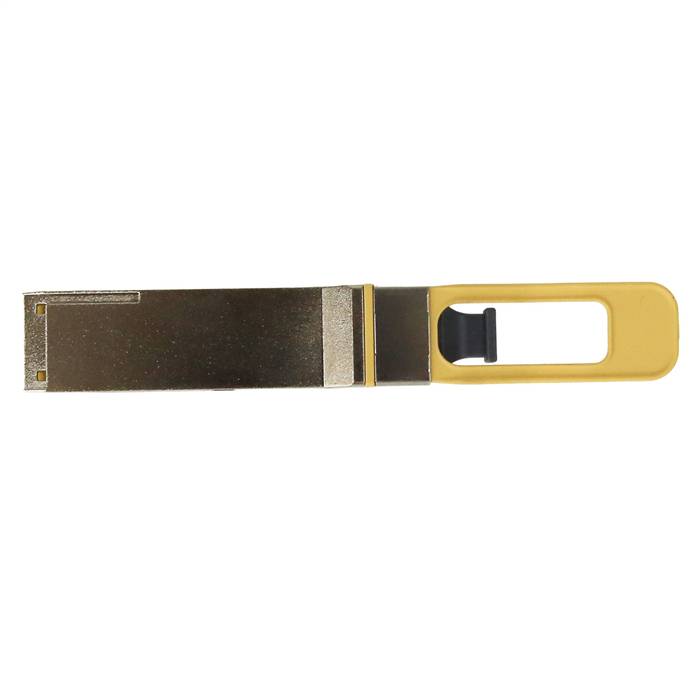

100 GbE SR4 QSFP28 MMF Optical Transceiver
NVIDIA Mellanox MMA1B00-C100D is a 4-channel, pluggable, QSFP28, optical transceiver designed for use in 100 GbE Ethernet links with up to 100 m reach on multi-mode fiber (MMF). This transceiver incorporates Mellanox integrated circuit technology, in order to provide high performance at low power.
MMA1B00-C100D converts 4 input channels of 25 Gb/s electrical data to 4 optical signals at 850 nm. Reversely, the receiver side de-multiplexes 4 optical inputs into 4 electrical differential output signals.
MMA1B00-C100D has selectable retiming as specified in the SFF-8636 MSA. This enables the transceiver to be used in both 40 GbE and 100 GbE applications.
Digital diagnostic monitoring functions for temperature, supply voltage, and optical power are available via the two-wire (I2C) management interface, as specified by the QSFP28 MSA.
The optical interface is a multi-fiber push-on (MPO) connector with the 4 optical channels/fibers in each direction. The MPO connector is the un-angled (UPC) type.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Highlights
- Up to 100 Gb/s data rate
- Selectable retiming for both Tx & Rx
- Programmable Tx input equalizer
- Programmable Rx output amplitude
- Programmable Rx output emphasis
- SFF-8665 compliant QSFP28
- Single 3.3 V supply, hot pluggable
- QSFP28 power class 3 (2.5 W max)
- 2.2 W power dissipation (typ, with retiming)
- BER better than 1E-15
- Class 1 laser safety
- Up to 100m on OM4 and 70m on OM3 multimode fiber at 100 Gb/s
- Up to 100m on OM3 at 40 Gb/s
- Hot pluggable
- RoHS compliant
- Applications:
- 100GBASE-SR4 100G Ethernet
- 40GBASE-SR4 40G Ethernet
- Qualified for use in Mellanox Ethernet end-to-end systems
Specifications
- Configuration: 100GbE SR4
- Configuration: QSFP28
- Application: 4x 25G-NRZ Paralle
- Connector: 8-fiber, MPO-12
- Max Reach: 100m
- Wavelength: 850nm multi-mode
- Part Number: MMA1B00-C100D
