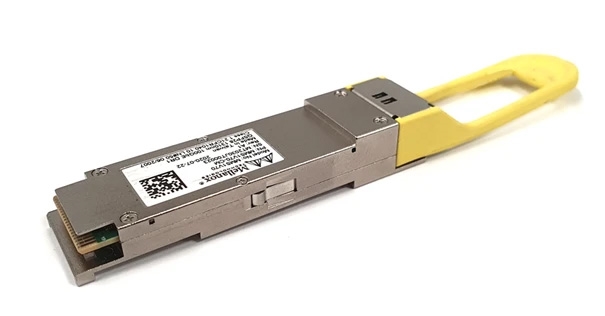

Mellanox MMS1V70-CM 100GBASE-DR QSFP28 Single Lambda 1310nm 500m DOM Duplex LC SMF Optical Transceiver Module

The 100GBASE-DR Single Lambda QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. The transceiver includes a gearbox chip to convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet.

Specifications

• Brand: Mellanox
• Part Number: MMS1V70-CM
• Form Factor: QSFP28
• Max Data Rate: 103.125Gbps (4x 25.78Gbps)
• Wavelength: 1310nm
• Max Cable Distance: 500m
• Connector: Duplex LC
• Media: SMF
• Transmitter Type: EML
• Receiver Type: PIN
• TX Power: -2.9~4dBm
• Receiver Sensitivity: <-5.9dBm
• Powerbudget: 3dB
• Receiver Overload: 4dBm
• Power Consumption: ?4.5W
• Extinction Ratio: >3.5dB
• DDM/DOM: Supported
• Commercial Temperature Range: 0 to 70°C (32 to 158°F)
• CDR (Clock and Data Recovery): TX & RX Built-in CDR
• FEC Function: Supported
• Protocols: IEEE 802.3cd 100GBASE-DR Specification compliant
