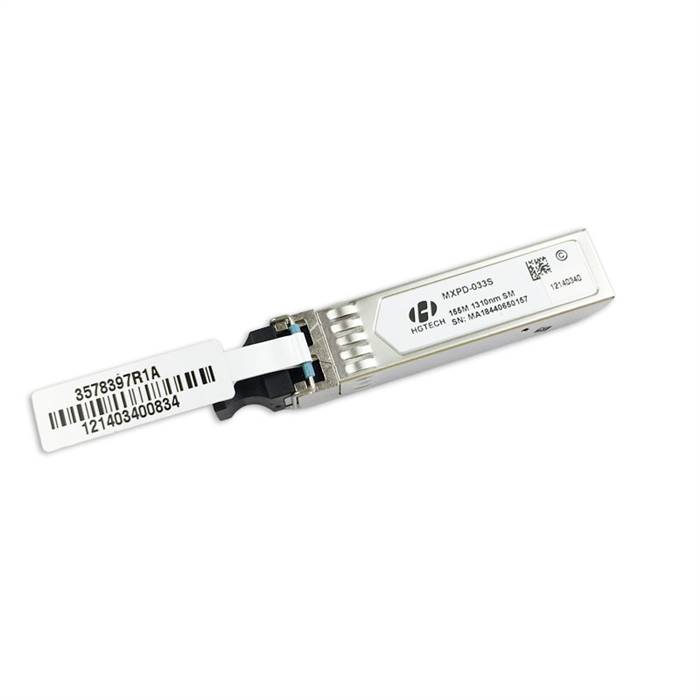

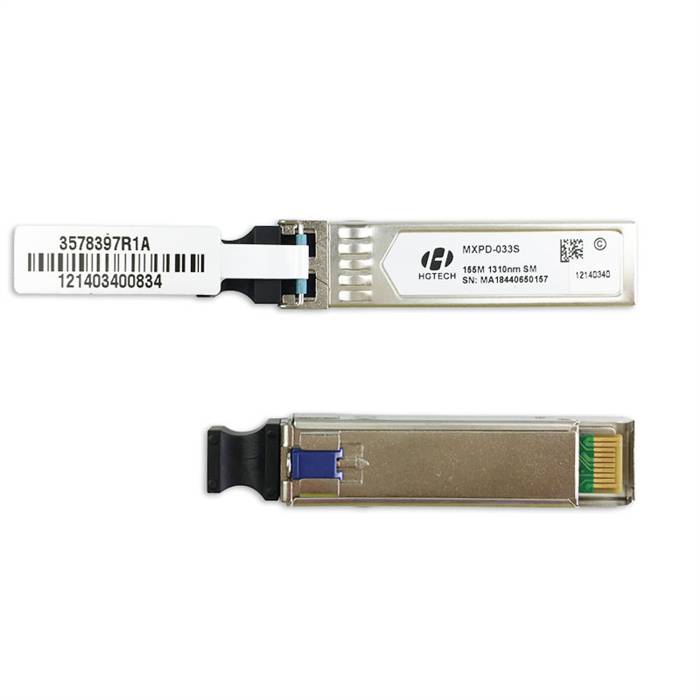

MXPD-033S - Genuine HGTECH 155M 1310nm 15km SMF SFP Transceiver

Features

• Up to 155M data rate
• Single +3.3V power supply
• DDM function implemented
• External calibration
• Hot-pluggable
• Receiver Loss of Signal Output
• AC coupling of PECL signals
• Serial ID module on MOD(0-2)
• International Class 1 laser safety certified
• Transmitter disable input
• Operating temperature range: -10oC ~+70oC
• WDM module Operating temperature range: 0~+70o
• RoHS Compliance

Specifications

• Brand: HG Genuine (HGTECH)
• Place of origin: China
• Condition: New
• Form Factor: SFP
• Wavelength: 1310nm
• Distance: 15KM
• Data Rate (max): 155M
• Voltage Supply: 3.135 ~ 3.465 V
• Power Dissipation: 0.9W @70 ºC,3.5V
• DDMI: Yes
• Operating Temperature: 0 ~ 70 °C
• Storage Temperature : -40 ~ 85 °C
• Certificate: CE , ROHS , FCC

Standards

• Compliant with SFP MSA (INF-8074i)
• Compliant with SFF-8472 v9.3
• Compliant with IEEE802.3z Gigabit Ethernet
• Compliant with ITU-T G.695
• Compliant with FC-PI v2.0
