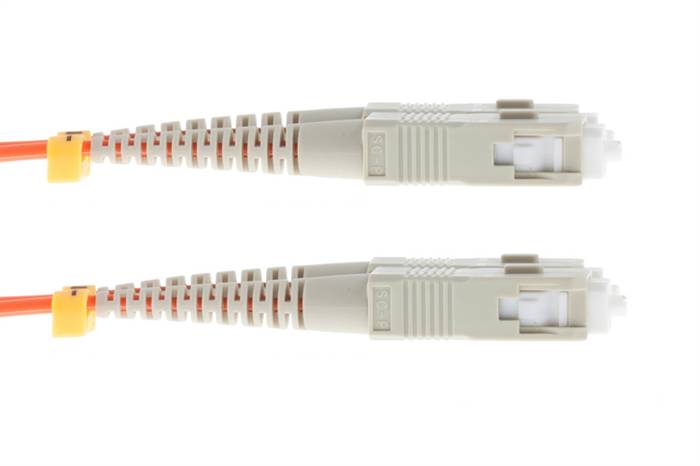

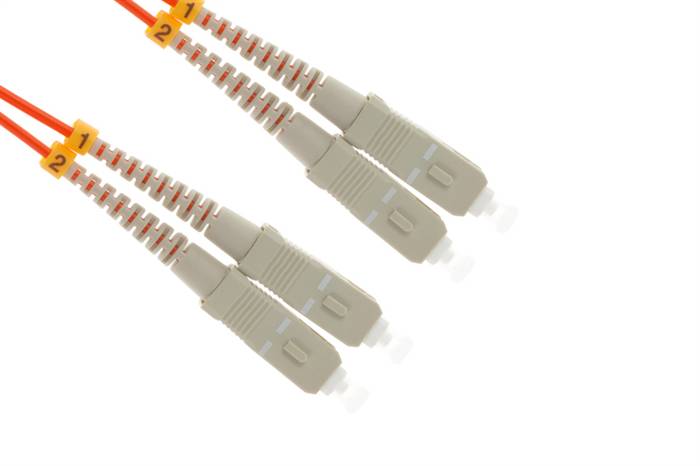

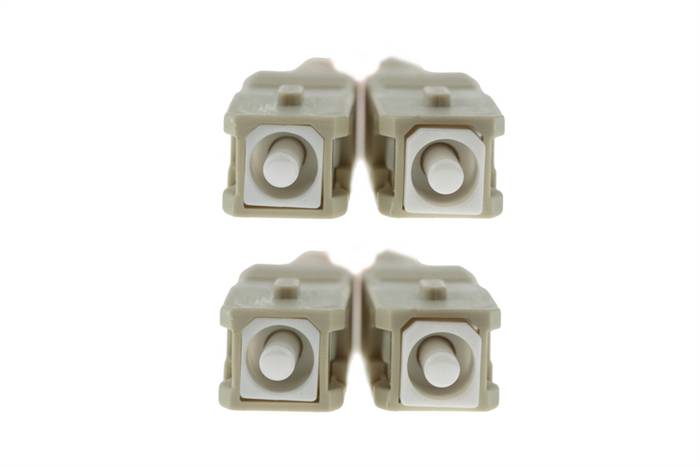

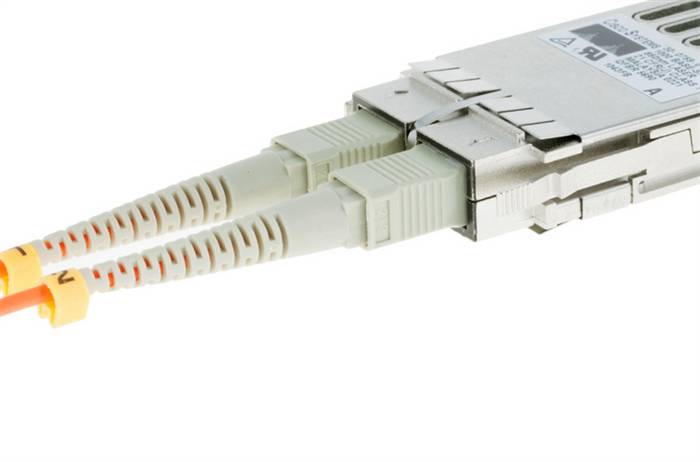

0.5m (1.6ft) 62.5/125 OM1 SC to SC UPC Duplex Multimode Fiber Optic Patch Cable

With a SC to SC termination, this high quality 62.5/125 OM1 Duplex Multimode fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications. The SC connector features a push-pull locking system. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, providing immunity to electrical interference.

Specifications

• Fiber Type: Multimode 62.5/125µm (OM1)
• Fiber Strands: Duplex
• Connector 1: Duplex SC
• Connector 1: Duplex SC
• Length: 0.5m (1.6ft)
• Insertion Loss: ≤0.3dB
• Return Loss: ≥30dB
• Wavelength: 850/1300nm
• Attenuation at 850nm: 3.0 dB/km
• Attenuation at 1300nm: 1.0 dB/km
• Cable Jacket: PVC
• Cable Diameter: 2.0mm
