100m (328ft) MPO Female to 6 Duplex LC UPC Breakout Cable, 12 Fiber OM3 50/125 Multimode, Type B, LSZH

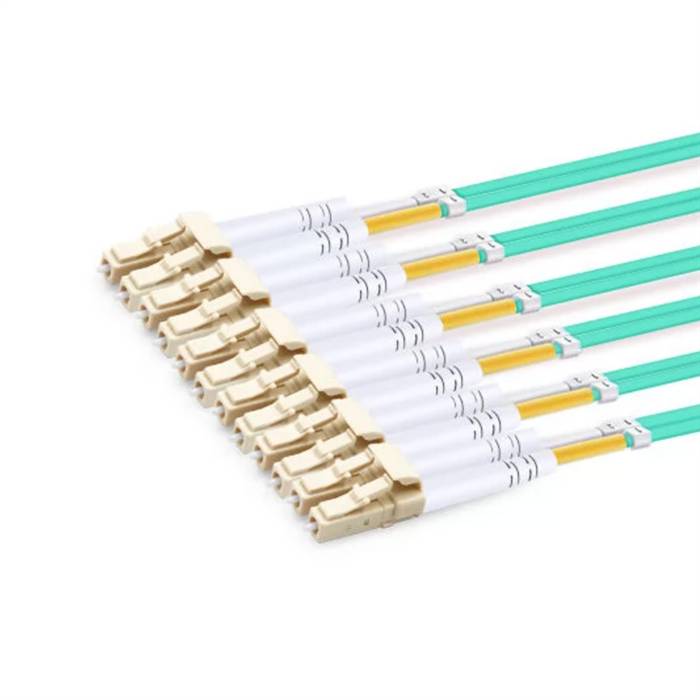

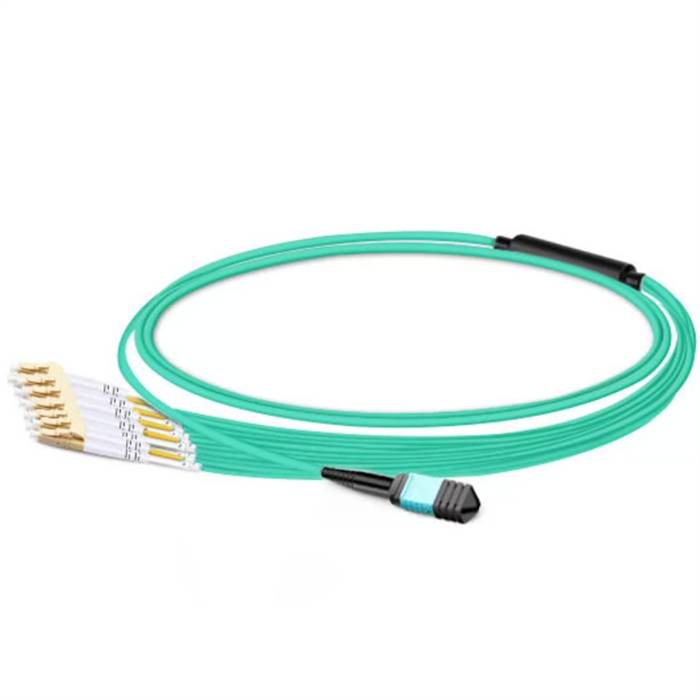

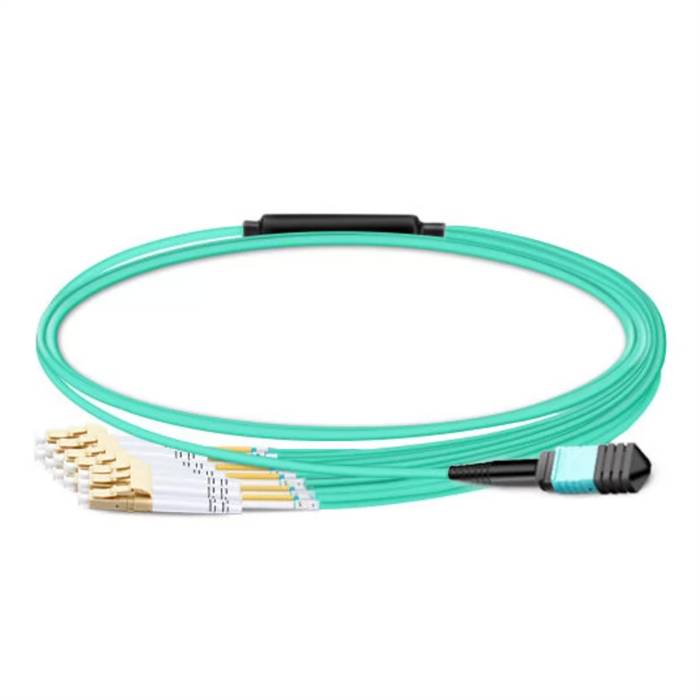

This OM3 MPO cable is factory pre-terminated 50/125 Multimode OM3 MPO to 6xLC Duplex fiber harness cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management. The OM3 MPO harness fiber cable is comprised of one MPO female connector and 6 LC UPC duplex fiber connectors on the other end. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. These breakout cables are perfect when your space is limited, which allows converting a standard fiber optic network to a high-density MPO network, and making a powerful fiber connection.

Specifications

• Fiber Type: 50/125μm Multimode OM3
• Fiber Count: 12-fiber
• Connector Type: MPO Female to 6x LC Duplex Male
• Polish: UPC to UPC
• Cable Length: 100m (328ft)
• Cable Diameter
• MPO: 3.0mm
• Fan-out: 2.0mm
• Insertion Loss: ≤0.6dB
• Return Loss: ≥20dB
• Polarity: Type B (Crossover)
• Jacket Material: LSZH
• Jacket Color: Aqua
• Environment
• Operating: -20°C to 70°C
• Storage: -40°C to 85°C
