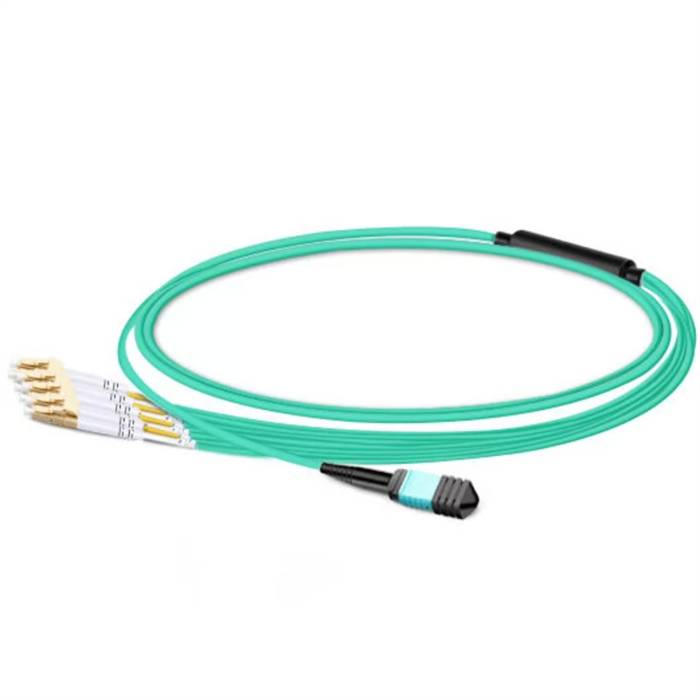

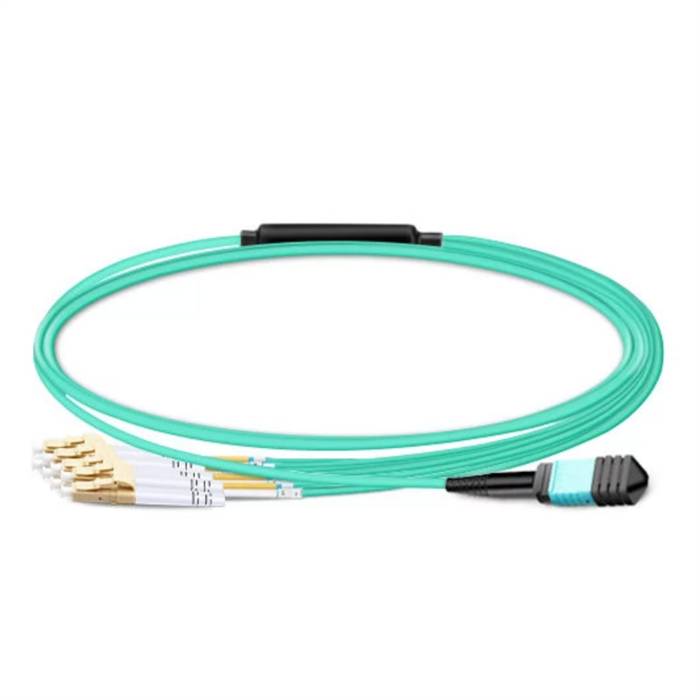

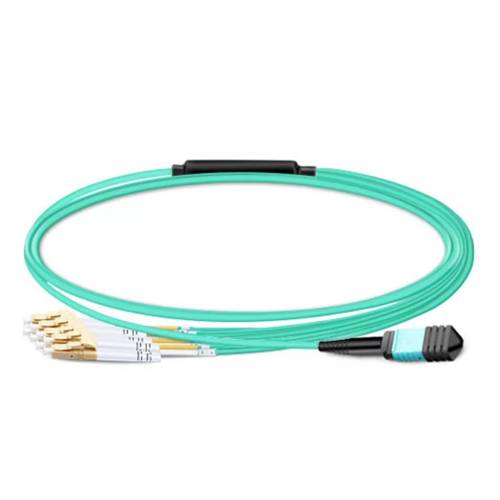

7m (23ft) MPO Female to 4 Duplex LC UPC Breakout Cable, 8 Fiber OM3 50/125 Multimode, Type B, LSZH

This MPO cable is factory pre-terminated MPO to 4xLC Duplex 50/125 10G OM3 breakout cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. This MPO breakout cable is comprised of one MPO female connector and 4xLC duplex fiber connectors on the other end. The MPO harness cables utilize 8 core OM3 fibers to fully transmit 40Gbps. 4 fibers in each direction transmitting at 10Gbps. The fiber optic harness cable conforms to Method B (Cross-Connect) polarity, and MTP® connector is available upon request.

Features

• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss
• MPO female to 4 x LC duplex harness cable
• Save Time & Space
• 50/125μm 10G OM3 Fiber
• Optimized performance - available in elite MTP and discrete premium connector
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH jacket by default

Specifications

• Fiber Type: OM3 50/125μm Multimode
• Fiber Count: 8-fiber

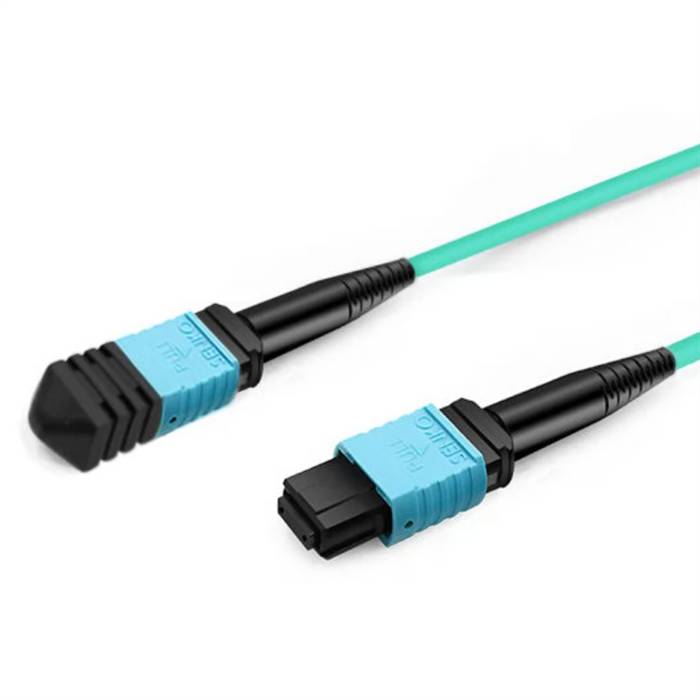

• Connector A: MPO Female

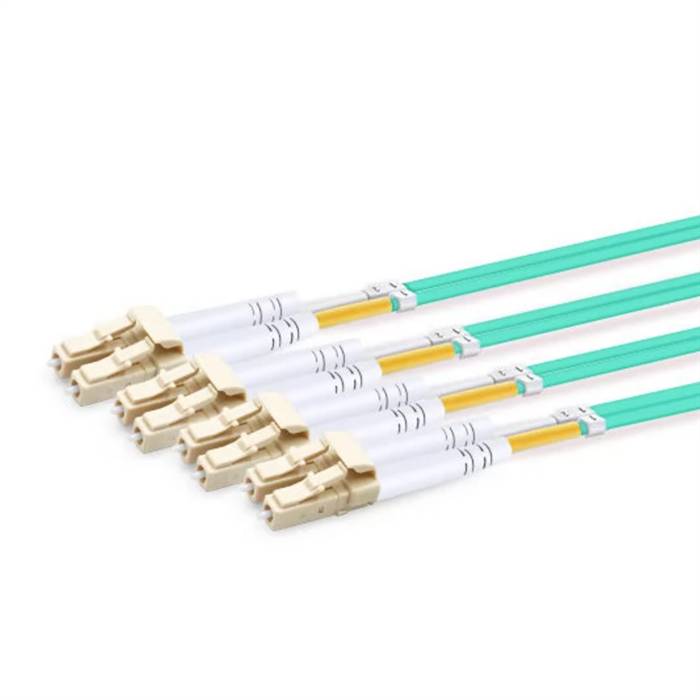

• Connector B: 4 LC Duplex
• Cable Length: 7m (23ft)
• Cable Diameter:
• MPO: 3.0mm

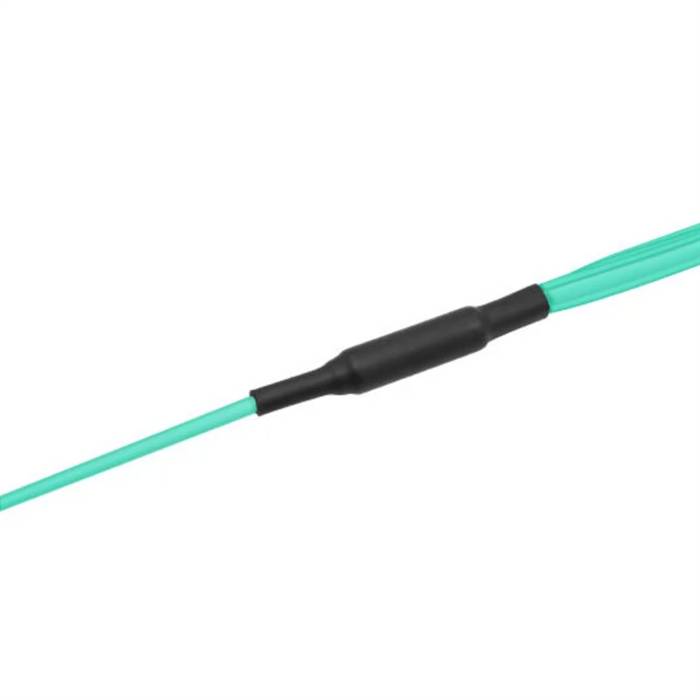

• Fan-out: 2.0mm
• Insertion Loss: ≤0.6dB
• Return Loss: ≥20dB
• Polarity: Type B (Crossover)
• Jacket Material: LSZH
• Jacket Color: Magenta
• Environment
• Operating: -20°C to 70°C
• Storage: -40°C to 85°C
