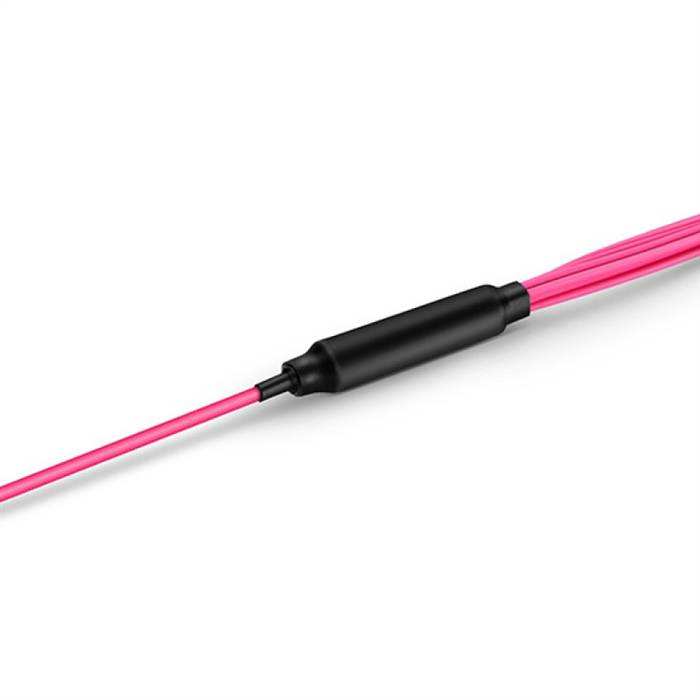

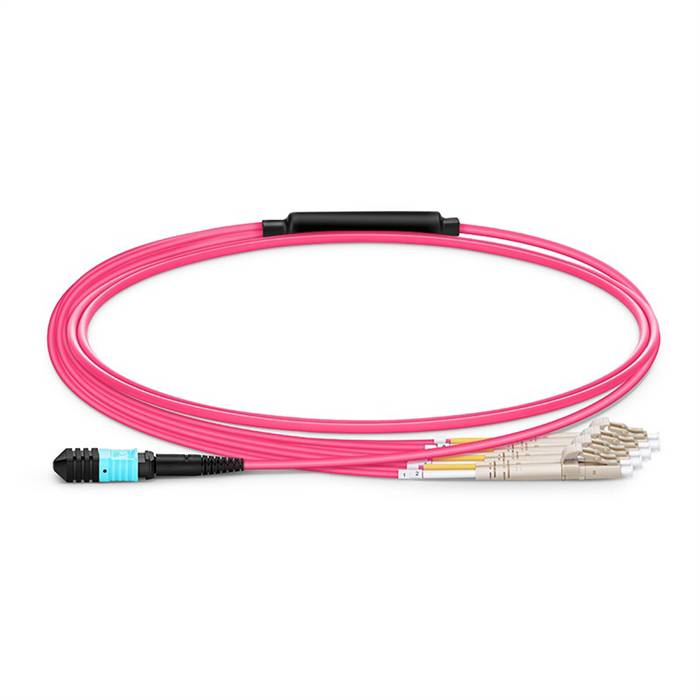

2m (6.6ft) MPO Female to 4 Duplex LC UPC Breakout Cable, 8 Fiber OM4 50/125 Multimode, Type B, LSZH

MPO breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO connectors and Corning fiber, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.

Specifications

• Fiber Type: OM4 50/125μm Multimode
• Fiber Count: 8-fiber

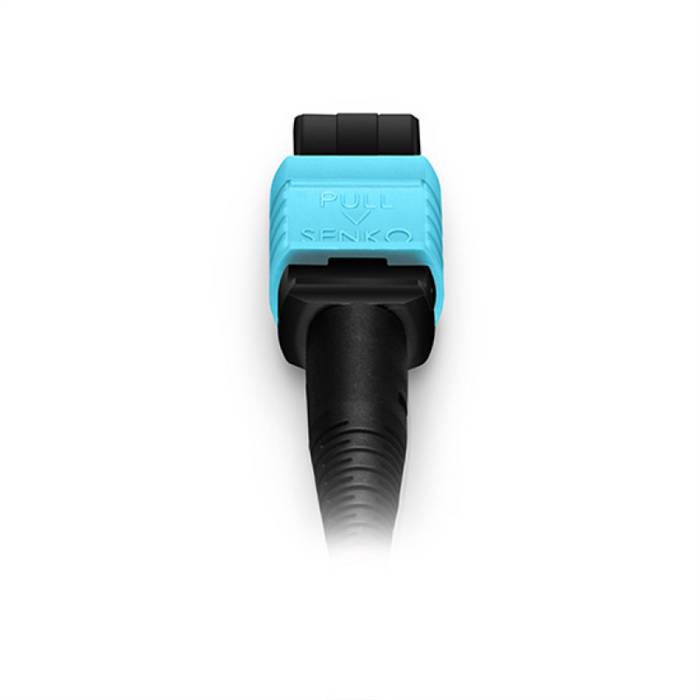

• Connector A: MPO Female

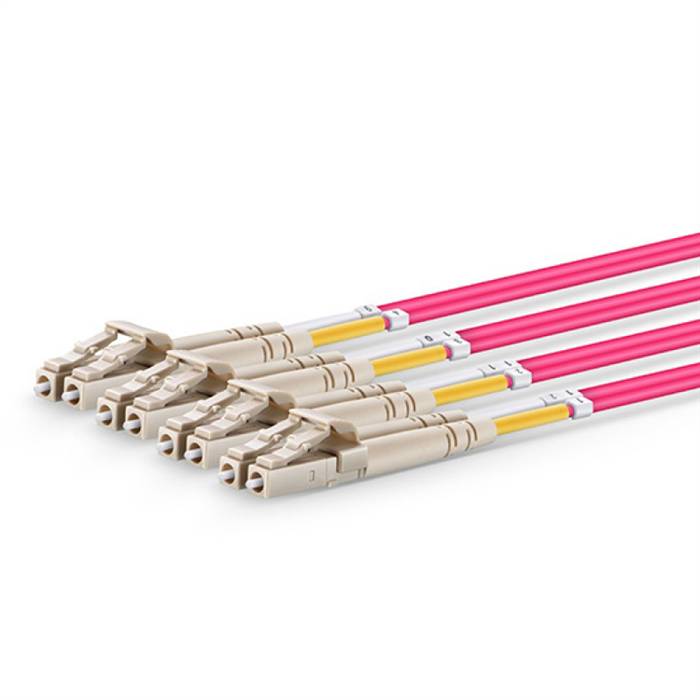

• Connector B: 4 x LC UPC Duplex
• Cable Length: 2m (6.6ft)
• Cable Diameter
• MPO: 3.0mm
• Fan-out: 2.0mm
• Wavelength: 850/1300nm
• MPO Connector IL: 0.75dB Max (0.35dB Typ.)
• LC Connector IL: ≤0.2dB
• MPO Connector RL: ≥20dB
• LC Connector RL: ≥20dB
• Polarity: Type B (Crossover)
• Jacket Material: LSZH
• Jacket Color: Magenta
• Environment
• Operating: -10°C to 70°C
• Storage: -40°C to 85°C
