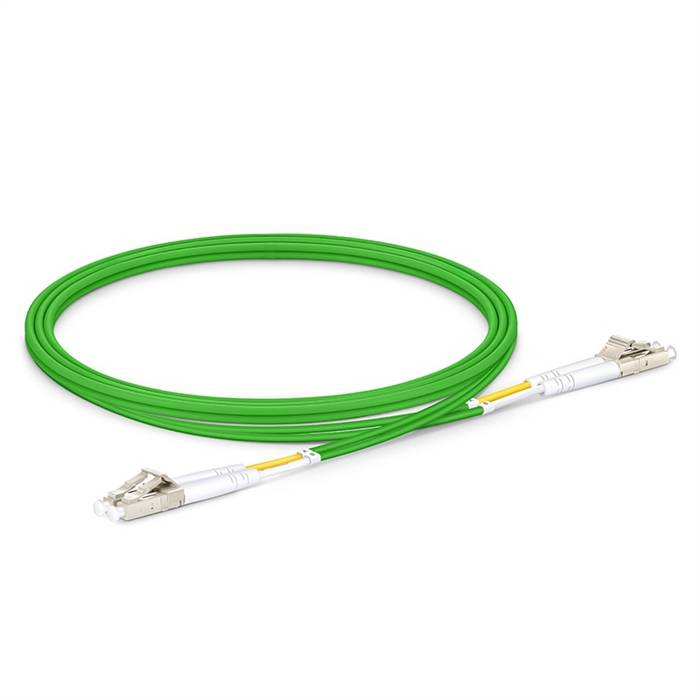

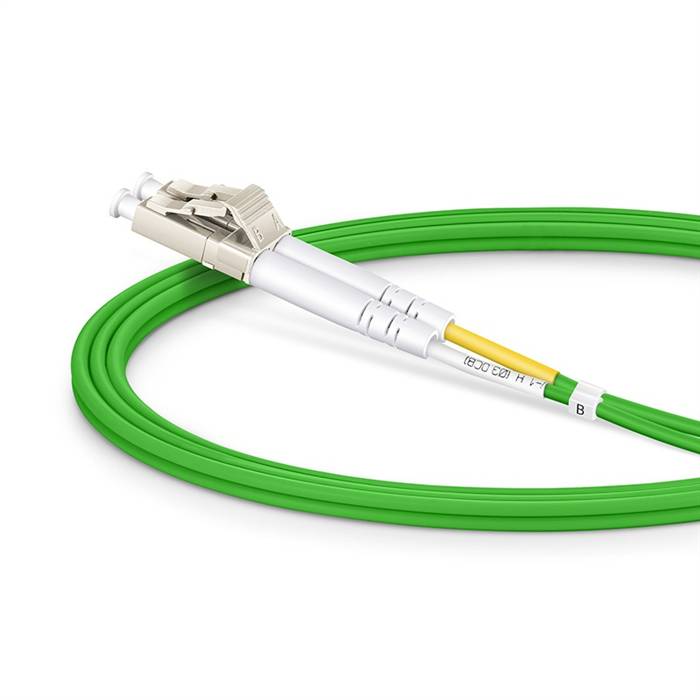

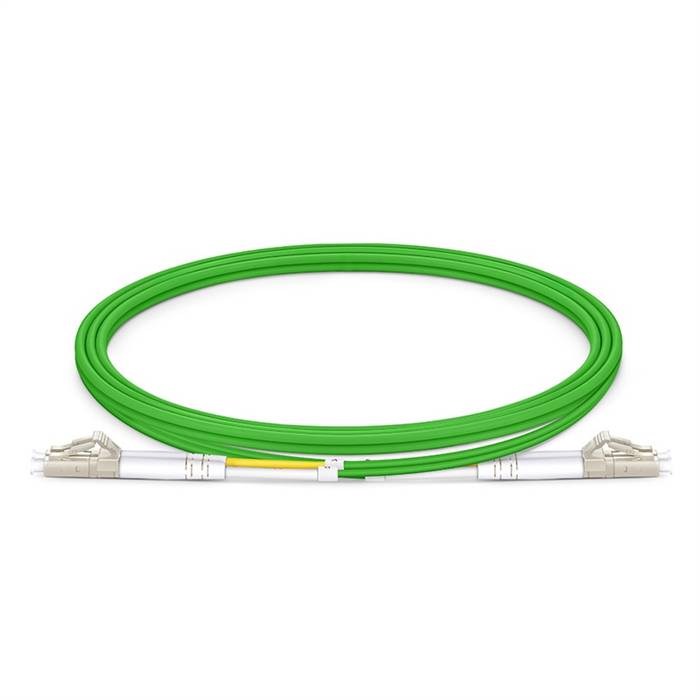

0.5m (1.6ft) 100Gb 50/125 OM5 LC to LC UPC Duplex Multimode Fiber Optic Patch Cable

As the amount of traffic in data centers grows, so does the need for next-generation devices and fiber cables to support higher bandwidths. This OM5 duplex multimode 50/125 fiber patch cable is a wideband multimode fiber (WBMMF) patch cable that supports Short Wavelength Division Multiplexing (SWDM) to transmit multiple signals (wavelengths) on one fiber, increasing the bandwidth of a single fiber by at least a factor of four. The LC to LC multimode fiber patch cable provides cost-effective fiber solutions for increased bandwidth in 40/100Gb Ethernet applications.

The OM5 fiber cable meets ANSI/TIA-492AAAE and current IEEE 802.3ae requirements. It is completely backward compatible with existing OM3 and OM4 50/125 fiber networks and applications, potentially making your fiber optic cable installation easier. The OM5 fiber patch cable is manufactured with high-quality wideband multimode fiber (WBMMF) fiber and LC-LC ceramic connectors and is strictly tested for low insertion and return loss to ensure superior performance and quality. The cable jacket is LSZH (Low-Smoke, Zero-Halogen) flame retardant, to ensure minimal smoke, toxicity, and corrosion. It is ideal for 40G QSFP+ and 100G QSFP28 transceivers connection.

Features

• Low insertion loss
• High back reflection loss
• Rated OM5 to offer a wideband 50/125μm multimode fiber solution
• Provides an upgrade path from 40 Gbps to 100 Gbps and beyond
• Backward compatible with OM3 and OM4 applications
• Low-Smoke, Zero Halogen (LSZH) green jacket
• The ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

Specifications

• Fiber Type: 50/125μm OM5 Multimode
• Fiber Count: Duplex (2-fiber)

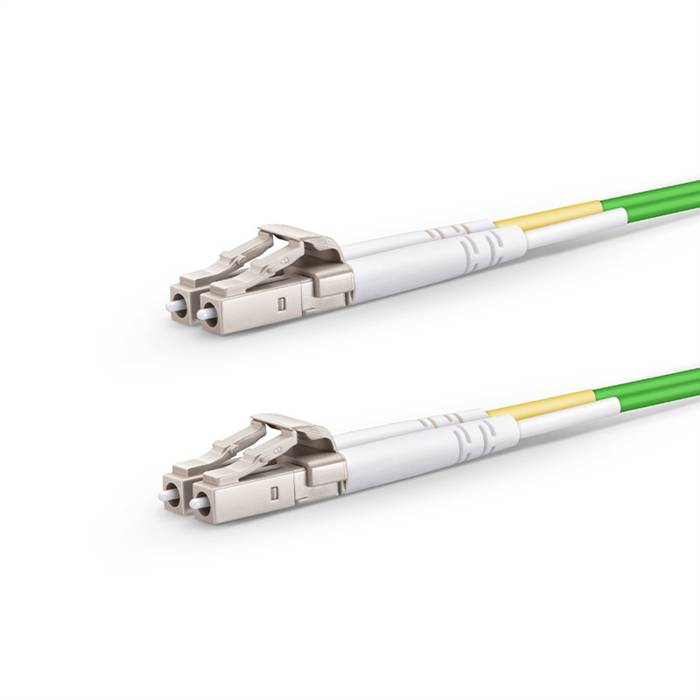

• Connector Type: LC UPC to LC UPC
• Cable Length: 0.5m (1.6ft)
• Cable Diameter: 2.0 mm
• Insertion Loss: ≤0.3dB
• Return Loss: ≥30dB
• Repeatability: ≤0.2dB
• Interchangeability: ≤0.2dB
• Cable Jacket: PVC
• Environment:
  • Operating: -20°C to 70°C
  • Storage: -40°C to 85°C
• Applications: 10/40/100 Gigabit Ethernet, Data Storage, Legacy LANs
