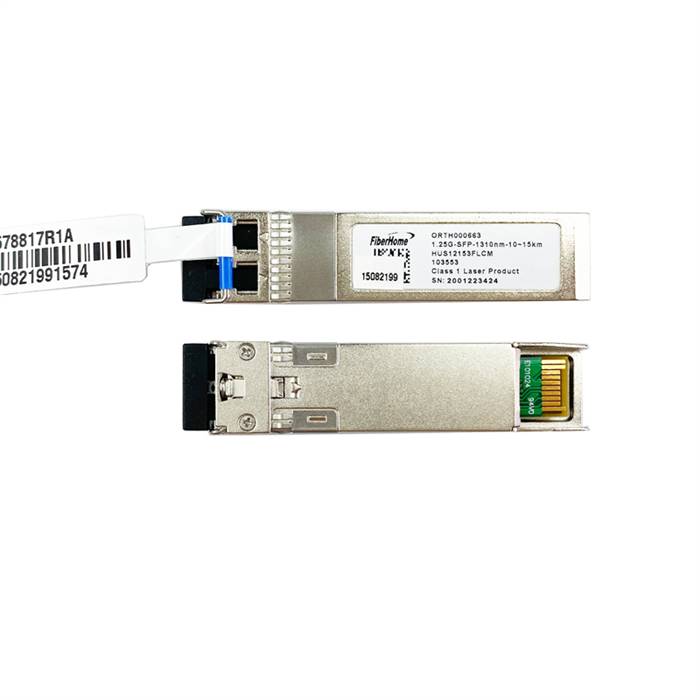

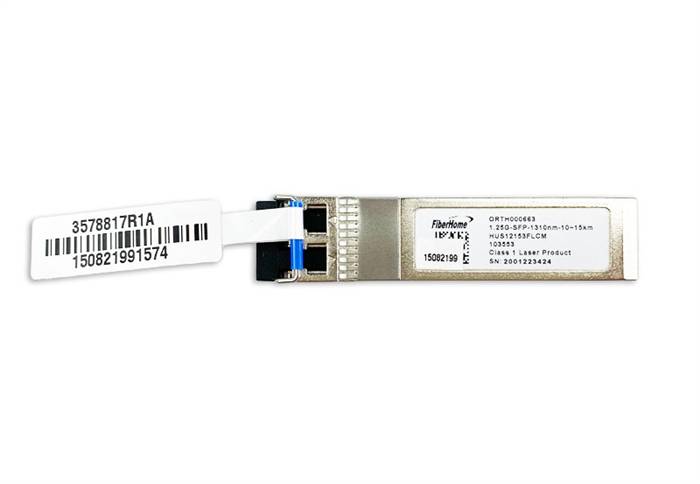

The FiberHome ORTH000663 1G SFP LX transceiver is a high performance and cost-effective small form factor pluggable (SFP) single-mode module for 1000BASE-LX Gigabit Ethernet per IEEE802.3z and 1G Fiber Channel application. It supports dual data-rate of 1.25Gbps/1.06Gbps and 15km transmission distance with 9/125um single mode fiber.

This 1G SFP LX transceiver module fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on MSA compliant SFP ports of optical networking equipment. The transmitter section uses a 1310nm FP laser that is a class 1 laser product compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed PIN photodiode integrated with a trans-impedance preamplifier (TIA).

Additionally, the FiberHome ORTH000663 family SFP module also provides an optional digital diagnostic interface per SFF-8472, which provides real-time monitoring of the transceiver temperature, supply voltage, laser bias current, laser average output power and received optical power. These parameters are internally calibrated by default.
