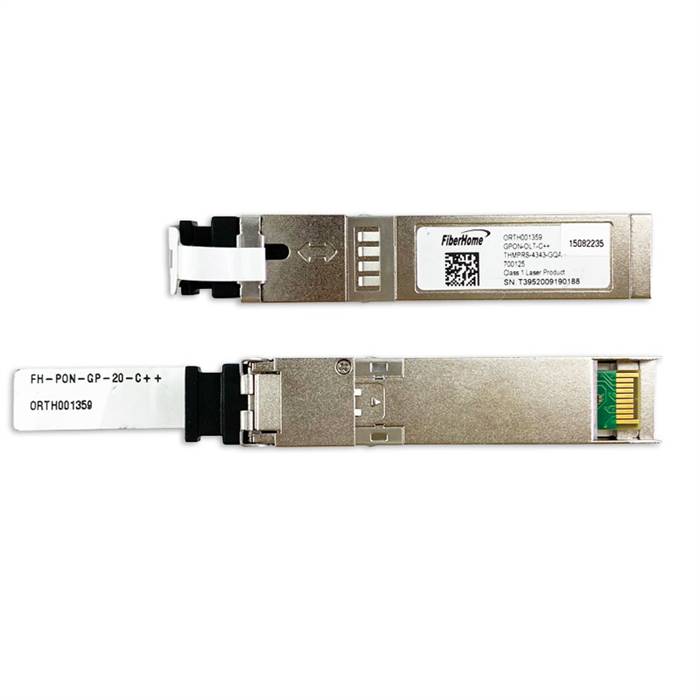

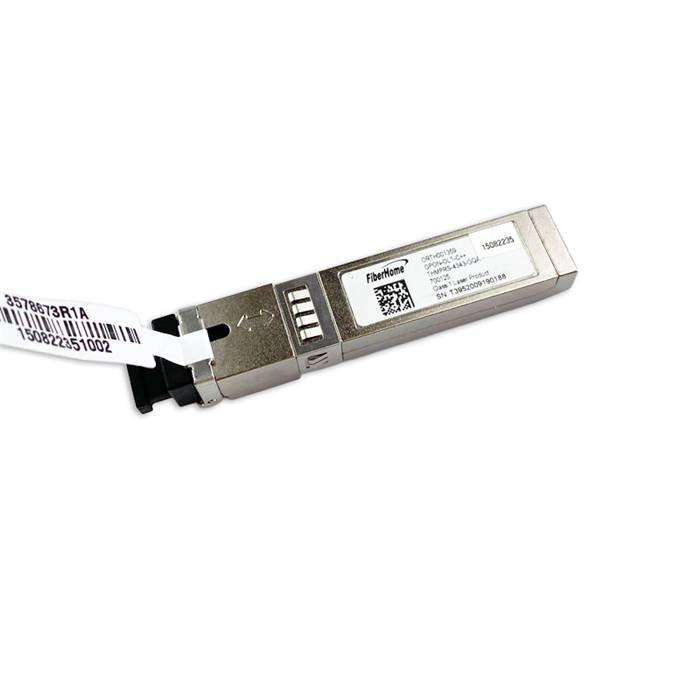

FiberHome GPON OLT C++ SFP Transceiver Module
ORTH001359 - Genuine FiberHome GPON-OLT-C++

Alternative Views:
Our Price: $90.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: ORTH001359
Qty:

Description

The FiberHome ORTH001359 GPON-OLT-C++ is a high-performance class C++ GPON OLT SFP transceiver designed for point-to-multipoint (P2MP) Passive Optical Network (GPON) application. It is designed for 2488 Mbps downstream and 1244 Mbps upstream duplex data link transmission, high-speed burst mode TDM receiver/transmitters used. It is supplied in the SFP package with a single SC/UPC receptacle connector. It can fully support the GPON OLT application specified by the ITU-T G.984.2 class C++ specifications. This GPON OLT transceiver module consists of 1490nm continuous-mode 2.5Gbps DFB transmitter, 1310nm burst-mode 1.25Gbps APD receiver, Preamplifier and WDM filter in a high-integrated optical sub-assembly.  It is a Class 1 laser product comply with the IEC 60825-1 and IEC 60825-2, and it is ROHS6 compliant.

Features
  • Support ITU-T G.984.2 GPON OLT C++ application
  • Single fiber bi-directional data links with asymmetric 2.488Gbps Tx and 1.244Gbps Rx
  • 1490nm continuous-mode transmitter with DFB LD
  • 1310nm burst-mode receiver with APD-TIA
  • 2-wire interface for integrated digital diagnostic Monitoring
  • SFP package with SC/UPC receptacle optical interface
  • Single +3.3V power supply
  • RoHS6 Compliant

Specification
  • Product Series: GPON OLT
  • Part Number: ORTH001359
  • Form Factor: SFP
  • Data Rate: 2.5Gbps-TX/1.25Gbps-RX
  • Wavelength: 1490nm-TX/1310nm-RX
  • Fiber Type: SMF
  • Max Distance: Class C++ (20km)
  • Optical Components: DFB/APD
  • Transmitter Power: 4.5 ~ 10 dBm
  • Extinction ratio: > 8.2 dB
  • Receiver Sensitivity: < -30 dBm
  • Receiver Overload: > -12 dBm
  • Connector: SC Simplex
  • Digital Diagnostic Monitoring: Yes
  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -40°C to 85°C
  • Weight: 0.03 kg
  • Application: GPON OLT Class C+ application, FTTX, FTTH, WDM Broadband Access
  • Compliance: IEC/EN 61000-4-2,IEC-60825, FDA 21CFR 1040.10 and 1040.11, RoHS
