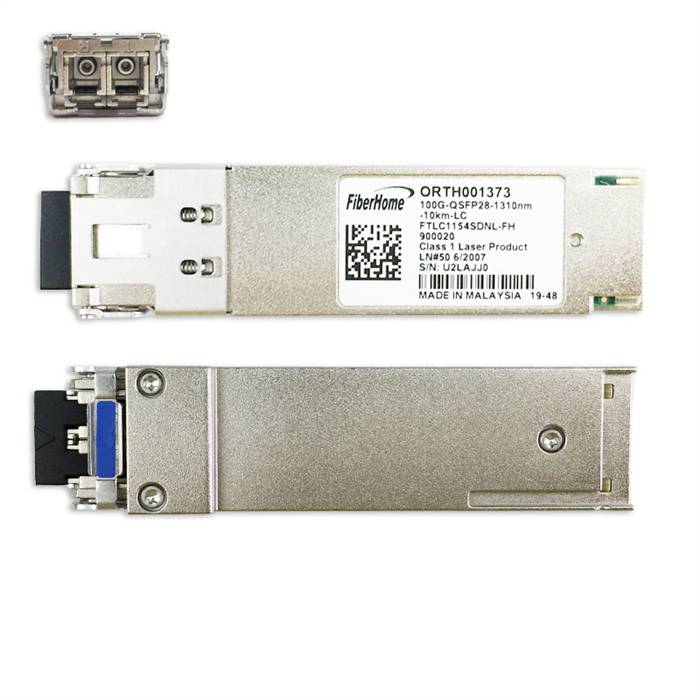

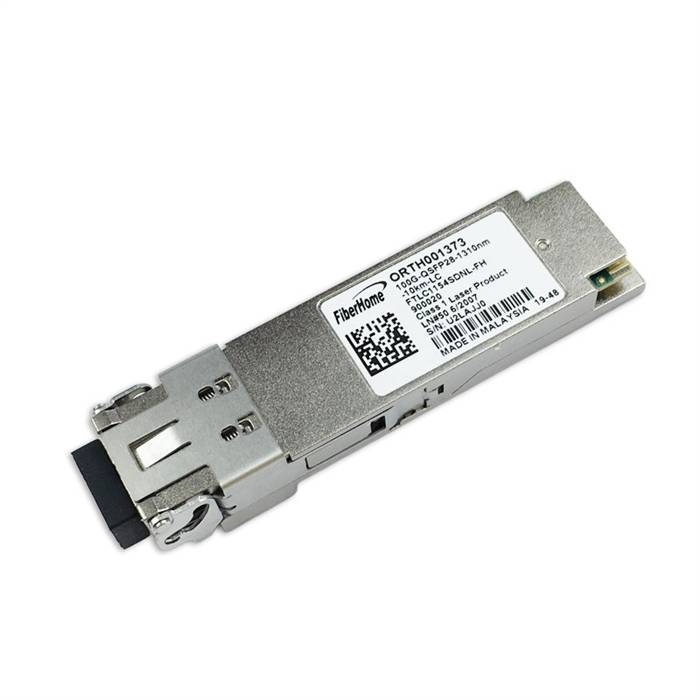

FiberHome FTLC1154SDNL-FH 100G QSFP28 1310nm 10km LC Transceiver Module
ORTH001373 - Genuine FiberHome FTLC1154SDNL-FH

Alternative Views:
Our Price: $590.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: ORTH001373
Qty:

Description

The FiberHome ORTH001373 100G QSFP28 LR4 optical transceiver module supports 100Gb/s and up to 10 km transmission on SM fiber. It works in high-speed IDC connection solutions and so on.

Features
  • Supports 100Gb/s bit rate?4x25G data rate per channel
  • LAN WDM: 1295.56/1300.05/1304.58/1309.14nm
  • Up to 10km over SMF
  • Duplex LC Connector
  • Hot Pluggable QSFP28 form factor
  • Digital diagnostic monitoring support
  • Single 3.3V power supply
  • RoHS-10 compliant and lead-free
  • Maximum power consumption3.5W
  • All-metal housing for superior EMI performance
  • Case operating temperature:0? to+ 70?

Specifications
  • Form Factor: QSFP28
  • Max Data Rate: 100Gbps
  • Wavelength(nm): 1310nm
  • Reach(km): 10km
  • LD: LAN WDM DFB
  • Tx Power(dBm): -4.3~4.5
  • PD: PIN
  • Rx Sens(dBm): <-10.6
  • Temperature(?): 0~70
