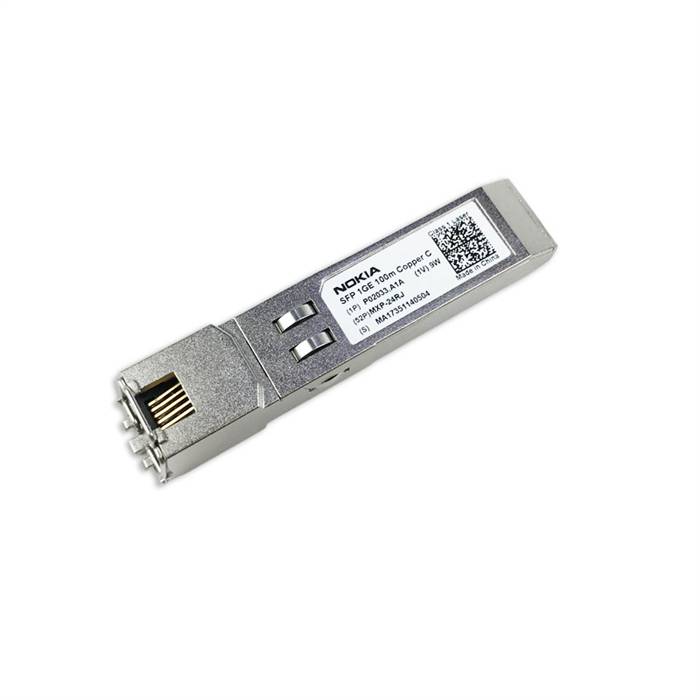

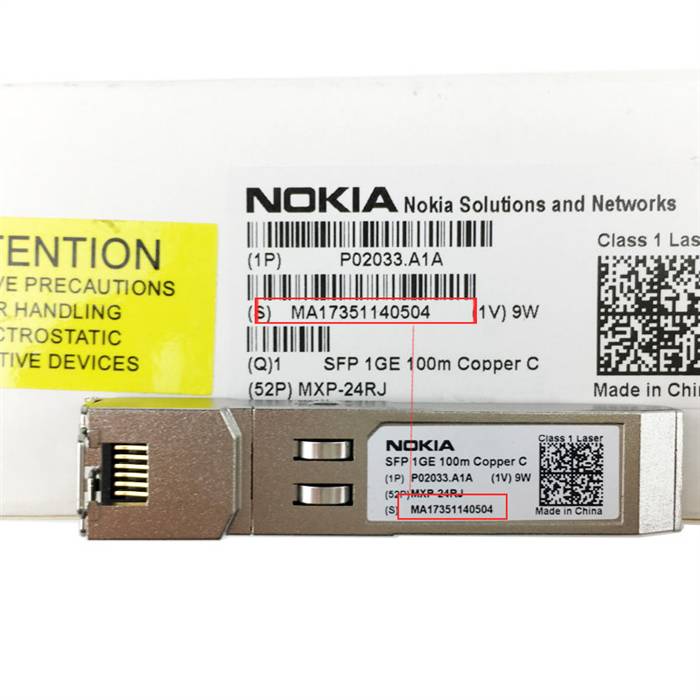

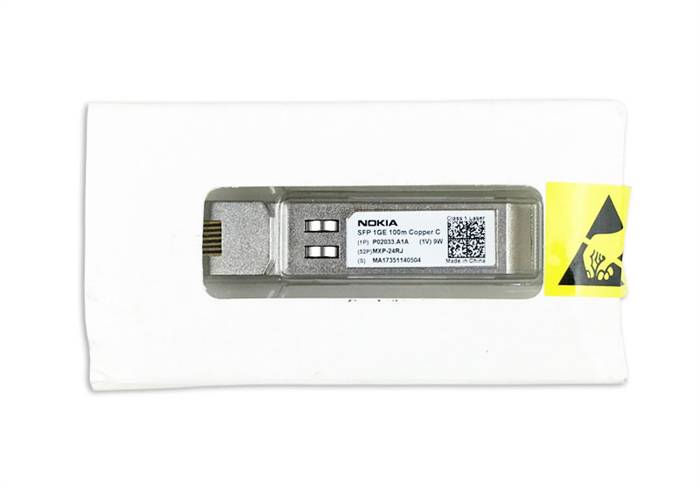

Genuine Nokia P02033.A1A 100m Copper SFP Transceiver Module MXP-24RJ
Genuine Nokia P02033.A1A

Alternative Views:
Our Price: $40.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: P02033-A1A
Qty:

Description

The Nokia P02033.A1A 1000BASE-T copper SFP transceivers MXP-24RJ(S) are based on the SFP Multi-Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3:2000 and IEEE802.3ab.

The P02033.A1A supports 1000Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.

The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, address: 0XACh, allowing access to all PHY settings and features. Also, the Serial ID can be accessed via I2C, address: 0XA0h. The hot pluggable feature allows changing to and from another SFP compatible module without having to remove system power.

Features
  • Genuine Nokia P02033.A1A
  • Compatible with IEEE 802.3:2000
  • Up to 1.25Gb/s bi-directional data links
  • Industry Standard Small Form Pluggable (SFP) Package
  • Single + 3.3V Power Supply, Low Power dissipation
  • 10/100/1000 BASE-T operation in host systems with SGMII interface
  • Intelligent Auto-Negotiation support for automatic duplex, speed, and flow control resolution
  • Link lengths at 1.25 Gbd: up to 100 meter per IEEE802.3

Applications
  • LAN 1000Base-T
  • Switch to Switch Interface
  • Router/Server interface

Specifications
  • Part Number: P02033.A1A
  • MPN: MXP-24RJ
  • Form Factor: SFP
  • Data Rate (max): 1.25Gbps
  • Connector: RJ45
  • Distance: 100m
  • Operating Temperature: -5~70?
