PILA8460M - Genuine Intel PILA8460MBLK20

Home > OEM > Intel >

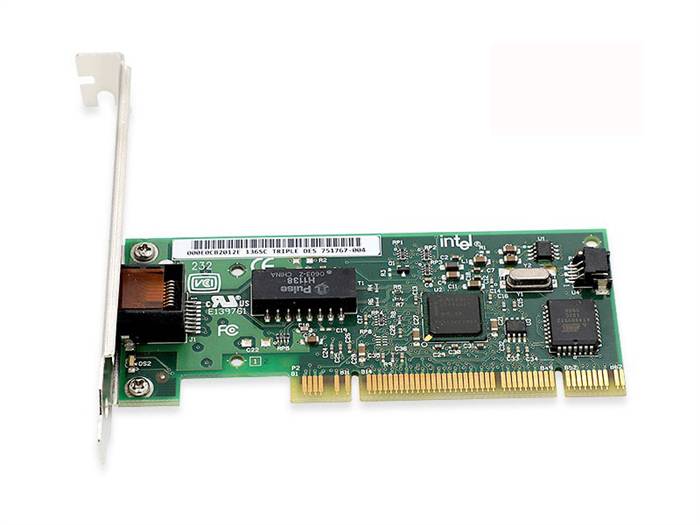

Intel PRO/100 M Desktop Adapter, RJ45, 10/100, PCI, 82551

Our Price: $42.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: PILA8460M

Qty:

Description

Designed to reduce support costs, the Intel PRO/100 M Desktop Adapter PILA8460M is rich with advanced management features that keep you informed about, and give you access and control of, remote desktops. This high-performance adapter is compliant with Wake on LAN* and the Desktop Management (DMI) 2.0 specification for remote troubleshooting and asset management. Wired for Management 2.0 baseline compliance and an embedded Intel LANDesk Client Agent allow easy remote administration and enterprise-wide management. Intel PRO/100 M Desktop Adapters use standards-based management features so technology works for you.

Features

Wired for Management (WfM) 2.0 Enabled
Wake on LAN and Desktop Management Interface (DMI) 2.0
Intel PRO/100 Boot Agent
Intel LANDesk Client Manager
ACPI and PCI Power Management
Intel PROSet II Utility
Intel SingleDriverTM Technology
Supports All Major OSs and NOSs
Backwards Compatible

Specifications

Product Name: Intel PRO/100 M Desktop Adapter
Product Code: PILA8460M, PILA8460MBLK20
Connectors: 1 x RJ-45
IEEE standards/network topology: 10BASE-T, 100BASE-TX
Wiring: Cat-5, 4-pair
Cable Distance: 100m
Data rate(s) supported per port: 10 & 100Mbps
Flash Memory: 64KB
Interrupt Levels: INTA
Bus type: PCI 32 bit
IEEE support: 802.2 and 802.3
Hardware Certifications: FCC B, CE
Data Transfer Mode: Bus-master DMA
Controller-processor: Intel 82551QM
Typical power consumption: 170mA @ +5VDC
Operating temperature: 0-55°C
Operating Humidity: 85% at +55° C

NOS SOFTWARE SUPPORT2

Microsoft Windows* 2000 and XP
Microsoft Windows NT* 4.0
DOS and DOSODI
Novell NetWare* 4.11, 4.2 & 5.X
SunSoft Solaris* 2.6, 7 & 83
UnixWare* 7.x and OpenUNIX* 8
Linux* 2.2.5 or Later
