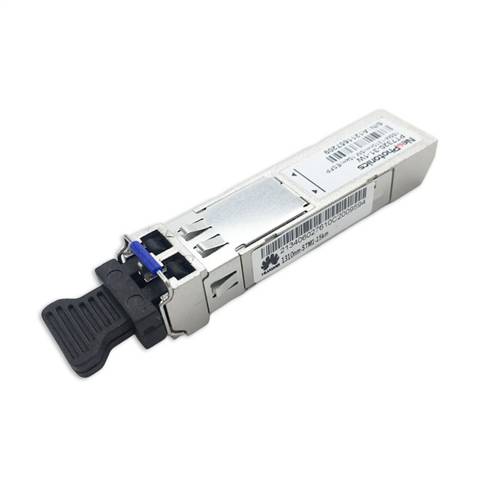

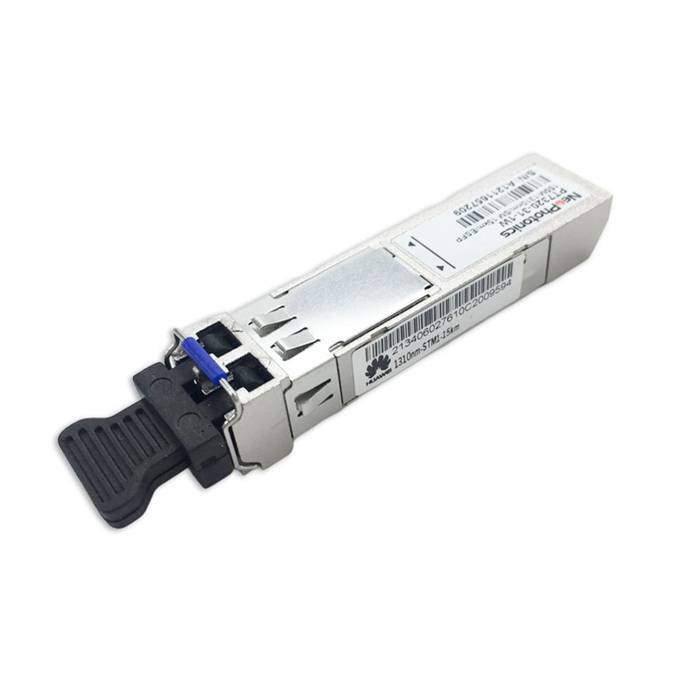

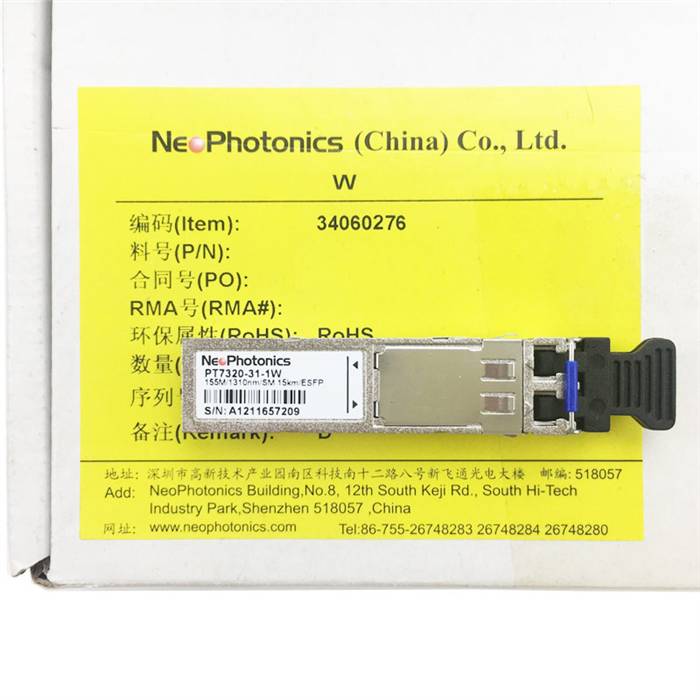

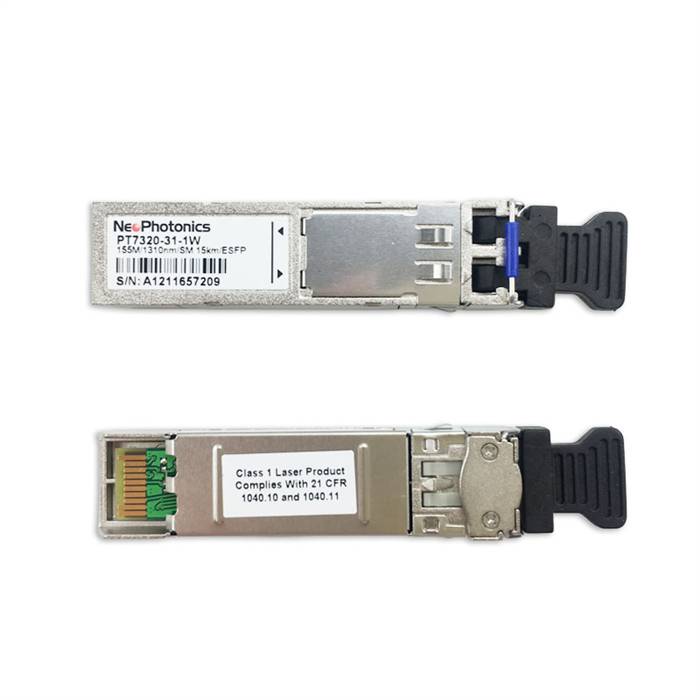

Genuine NeoPhotonics 155M OC-3 1310nm SMF 15km SFP Transceiver Module 34060276
Genuine NeoPhotonics PT7320-31-1W

Alternative Views:
Our Price: $5.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: PT7320-31-1W
Qty:

Description

The NeoPhotonics PT7320-31-1W optical transceiver is compliant with the Small Form-factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA) and SFF-8472. It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable.

Features
  • Transceiver unit with independent
    • 1310nm MQW FP Laser diode transmitter
    • InGaAs PIN photodiode receiver
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Compliant with SONET OC-3 SR/IR-1 / SDH STM S-1.1
  • Compatible with IEEE 802.3 Fast Ethernet
  • Digital diagnostic monitoring
  • Hot-pluggable
  • Metal enclosure for lower EMI
  • +3.3V Single power supply
  • Operation data rate from 100Mb/s to 200Mb/s
  • Qualified to meet the intent of Bellcore reliability practices
  • LVPECL logic interface simplifies interface to external circuitry
  • LVTTL logic level RX LOS
  • With pull de-latch
  • Links of 15 km with 9/125 µm single mode fiber (SMF) of maximum interconnect distances

Applications
  • SONET/SDH
  • Fast Ethernet
  • ATM

Specifications
  • Product Number: PT7320-31-1W
  • Part Number: 34060276
  • Form Factor: SFP
  • Connector: LC
  • Data Rate: 0.125 to 0.155 Gb/s
  • Wavelength: 1310 nm
  • Distance/Reach: 15 km
  • Tx/Rx Component: FP(Tx)/PIN(Rx)
  • RoHs: Yes
