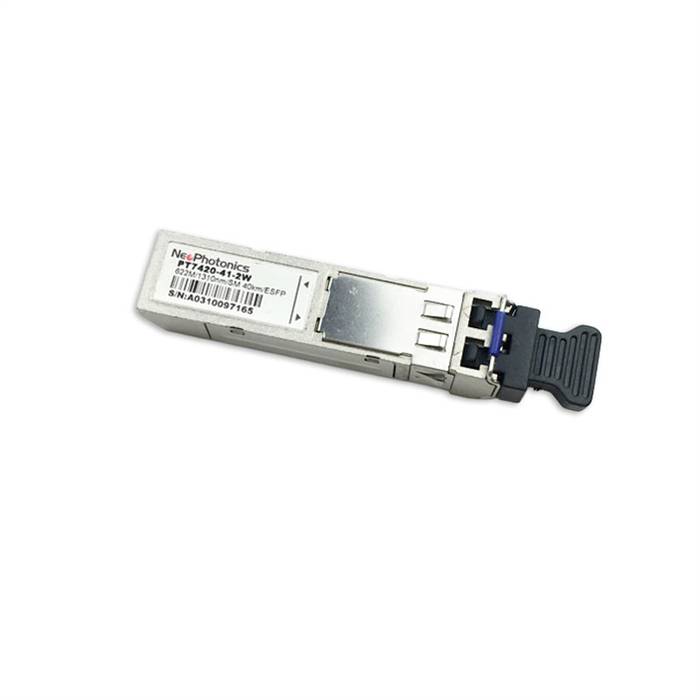

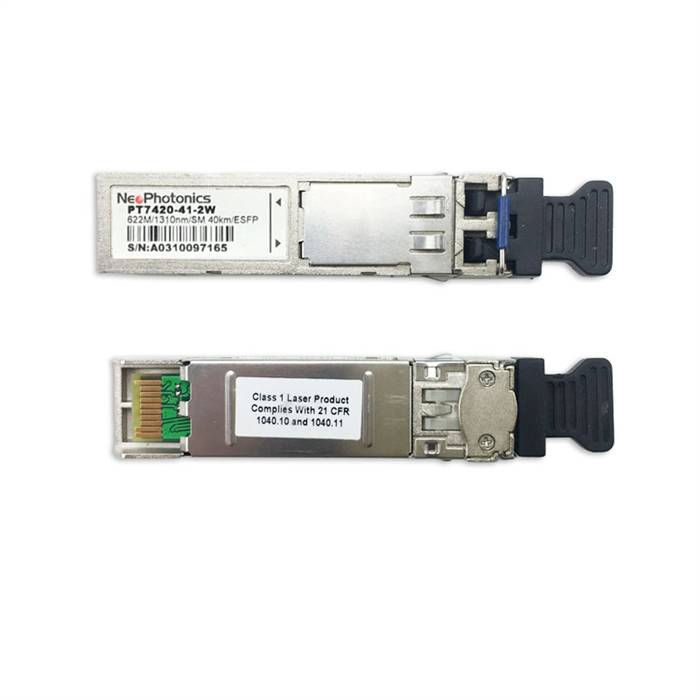

Genuine NeoPhotonics 622M OC-12 1310nm SMF 40km SFP Transceiver Module
Genuine NeoPhotonics PT7420-41-2W

Alternative Views:
Our Price: $28.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: PT7420-41-2W
Qty:

Description

The NeoPhotonics PT7420-41-2W is a high-performance small form factor pluggable (SFP) transceiver module for duplex optical data communications such as SDH STM-4/SONET OC-12 and 622Mb/s ATM long reach the application.This SFP transceiver module provides 40km transmission distance over single mode fiber at a nominal wavelength of 1310nm. The transmitter section uses a 1310nm DFB laser that is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed InGaAs PIN photodiode (PD) and trans-impedance preamplifier. The 622Mbps SFP module series is fully compliant with SFP Multi-Sourcing Agreement (MSA) and SFF-8472. For further information, please see SFP MSA and SFF-8472 standard.

Features
  • Hot-Pluggable SFP package with duplex LC Connector
  • Compliant with SFP MSA standard specification
  • Support 622Mb/s data links
  • Up to 40km on 9/125µm single mode fiber
  • 1310nm DFB laser transmitter and InGaAs PIN receiver
  • +3.3V single power supply
  • Low EMI and excellent ESD protection
  • ROHS compliant and Lead-Free
  • Optional Digital Diagnostic Monitor Interface

Applications
  • SONET OC-12
  • SDH STM-4
  • 622Mb/s ATM
  • Other optical transmission systems

Compliance
  • IEC/EN 61000-4-2,IEC-60825
  • FDA 21CFR 1040.10 and 1040.11
  • RoHS

Specifications
  • Product Number: PT7420-41-2W
  • Form Factor: SFP (Mini-GBIC)
  • Data Rate: STM-4/OC-3 622Mb/s
  • Wavelength: 1310 nm
  • Fiber Type : SMF
  • Max Distance: 40 km
  • Optical Components: DFB/PIN
  • Transmitter Power: -5?0 dBm
  • Extinction ratio: > 9 dB
  • Receiver Sensitivity: < -28 dBm
  • Receiver Overload: > -3 dBm
  • Connector: Duplex LC
  • Digital Diagnostic Monitoring: Yes
  • Environment
    • Operating Temperature: 0°C to 70°C
    • Storage Temperature: -40°C to 85°C
  • Weight: 0.025 kg
