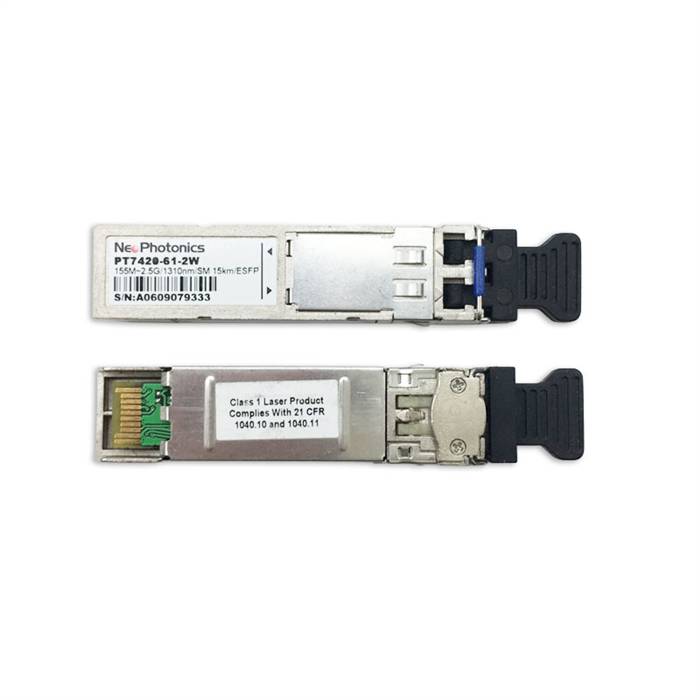

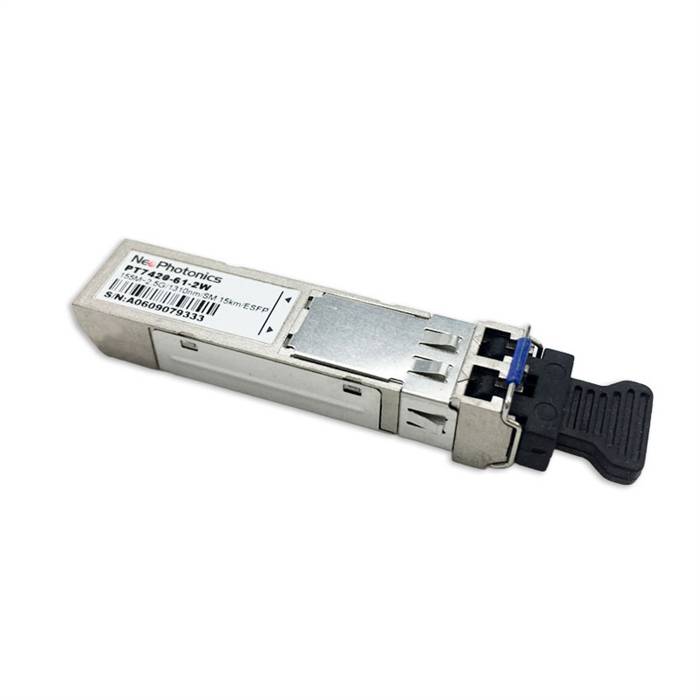

Genuine NeoPhotonics OC-48 IR-1 / STM S-16.1 1310nm SM 15km SFP Transceiver
Genuine NeoPhotonics PT7420-61-2W+

Alternative Views:
Our Price: $60.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: PT7420-61-2W
Qty:

Description

The NeoPhotonics PT7420-61-2W+ optical transceiver is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable.

Features
  • Transceiver unit with independent
  • 1310nm DFB Laser diode transmitter
  • InGaAs PIN photodiode receiver
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Compliant with SONET OC-48 IR-1 / SDH STM S-16.1
  • Compatible with Fibre Channel
  • Digital diagnostic monitoring
  • Hot-pluggable
  • Metal enclosure for lower EMI
  • +3.3V Single power supply
  • Operation data rate from 100Mb/s to 2.67Gb/s
  • Qualified to meet the intent of Bellcore reliability practices
  • LVPECL logic interface simplifies interface to external circuitry
  • LVTTL logic level RX LOS
  • With pull de-latch
  • Links of 15 km with 9/125 µm single mode fiber (SMF)
  • Complies with RoHS directive (2002/95/EC)

Applications
  • SONET/SDH
  • ATM
  • Fiber Channel

Specifications
  • Product Number: PT7420-61-2W+
  • Manufacturer: NeoPhotonics Corporation
  • Form Factor: SFP
  • Nominal bit rate: 2488320 kbit/s
  • Line code pattern: NRZ
  • Application code: S-16.1
  • Transmission distance (km): 2 to 15
  • Type of fiber: Single-mode LC
  • Operating wavelength range (nm): 1260 to 1360
  • Launched optical power range (dBm): -5 to 0
  • Receiver sensitivity (dBm): -18
  • Minimum overload (dBm): 0
  • Minimum extinction ratio (dB): 8.2
