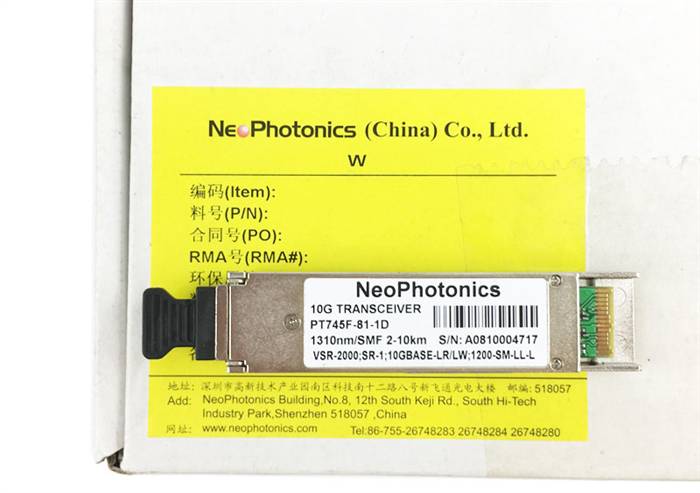

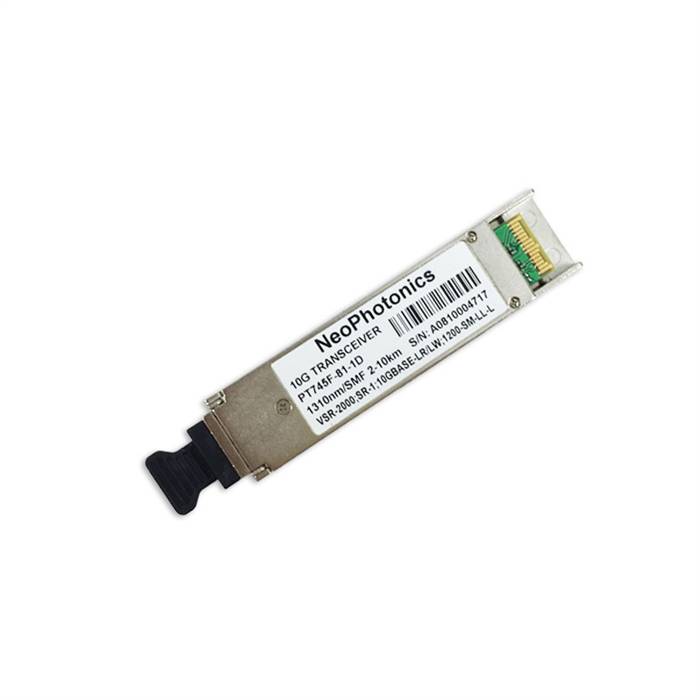

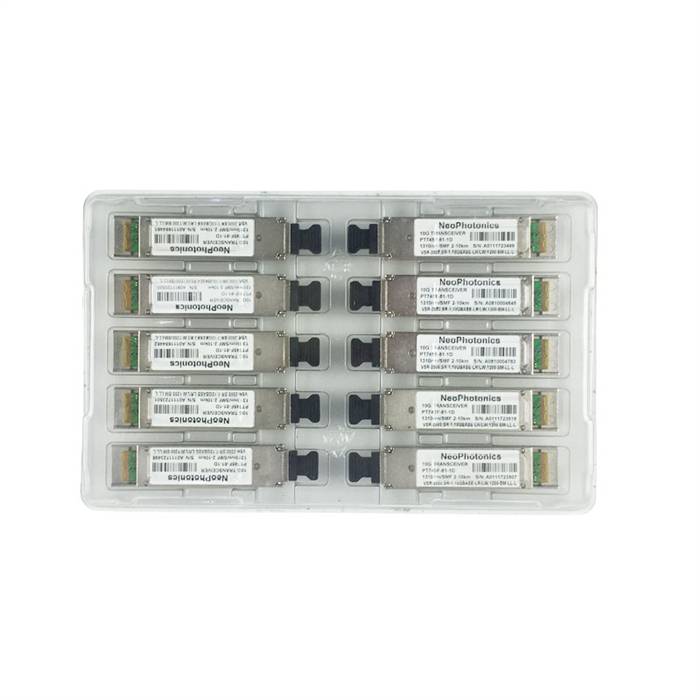

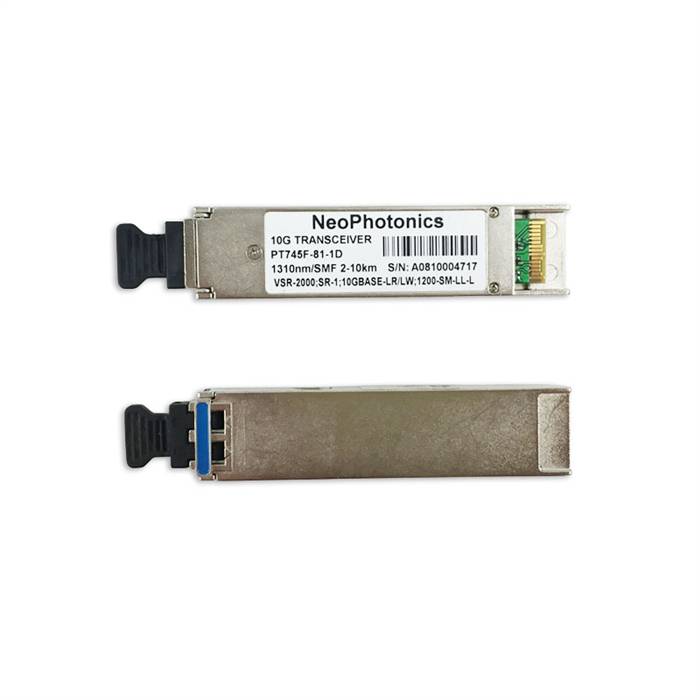

Genuine NeoPhotonics 10GBase-LR/LW 1310nm SMF 2-10km XFP Transceiver Module
Genuine NeoPhotonics PT745F-81-1D

Alternative Views:
Our Price: $30.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: PT745F-81-1D
Qty:

Description

The PT745F-81-1D is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA). It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable.

The PT745F-81-1D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The PT745F-81-1D+ converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with XFI specification and allows FR4 host PCB trace up to 200mm.

The PT745F-81-1D is designed for use in a variety of 10Gb/s SONET/SDH equipment including FEC (9.95Gb/s to 10.7Gb/s) and Ethernet LAN (10.3Gb/s) and WAN (9.95Gb/s) applications.

Features
  • 10Gb/s serial optical interface
  • Transceiver unit with independent
    • 1310nm DFB laser diode transmitter
    • PIN photodiode receiver
  • Meet XFP MSA completely
  • Digital diagnostic monitoring
  • Hot-pluggable
  • Metal enclosure for lower EMI
  • Duplex LC receptacle
  • XFP Mechanical Interface with bail latch for easy removal
  • LVTTL logic level Tx_Disable and Rx_LOS functions
  • Qualified to meet the intent of Bellcore reliability practices
  • 3.3V power supply only
  • Power consumption less than 2.5W
  • Links of 2~10 km with 9/125 µm single mode fiber (SMF) of maximum interconnect distances
  • Complies with RoHS directive (2002/95/EC)

Applications
  • 10G Ethernet
  • 10G Sonet (OC-192)/SDH (STM-64)
  • 10G Fiber Channel

Specifications
  • Product Number: PT745F-81-1D
  • Manufacturer: NeoPhotonics Corporation
  • Form Factor: XFP
  • Wavelength: 1310nm
  • Distance: 2-10km
  • Data Rate(max): 10G
  • Low End Case Temperature (°C): 0°C
  • High End Case Temperatyre(°C):  70°C
  •  Diagnostics: Digital
  •  Transmitter:  VCSEL
  •  Receiver: PIN
  •  Voltage Supply: 3.3-5v
  •  Connector: Dual LC
