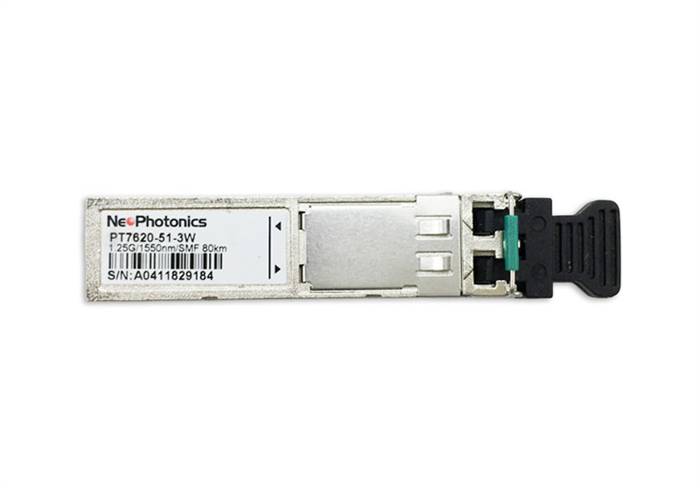

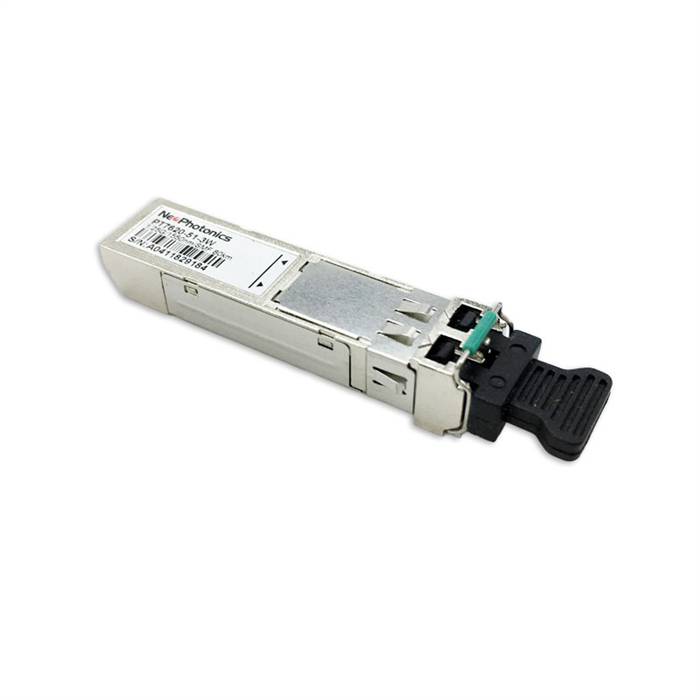

Genuine NeoPhotonics 1.25G 1000Base-ZX 1550nm SMF 80km SFP Fiber Optic Transceiver 34060360
Genuine NeoPhotonics PT7620-51-3W

Alternative Views:
Our Price: $35.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: PT7620-51-3W
Qty:

Description

The PT7620-51-3W from NeoPhotonics Corporation is a Fiber Optic Transceiver with Data Rate 1.25 to 1.0625 Gb/s, Wavelength 1550 nm, Distance/Reach 80 km. The NeoPhotonics PT7620-51-3W optical transceiver is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable.

Specifications
  • Product Number: PT7620-51-3W
  • MPN: 34060360
  • Manufacturer: NeoPhotonics Corporation
  • Form Factor: SFP
  • Application Standard: 1000BASE-ZX
  • Connector: Dual LC
  • Wavelength: 1550nm
  • Media Type: SMF
  • Distance: 80km
  • Data Rate(max): 1 Gbit/s
  • Maximum Tx optical power [dBm]: 5.0 dBm
  • Minimum Tx optical power [dBm]: -2.0 dBm
  • Minimum extinction ratio [dB]: 9 dB
  • Rx sensitivity [dBm]: -23 dBm
  • Overload power [dBm]: -3.0 dBm
  • DDMI: Yes
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
