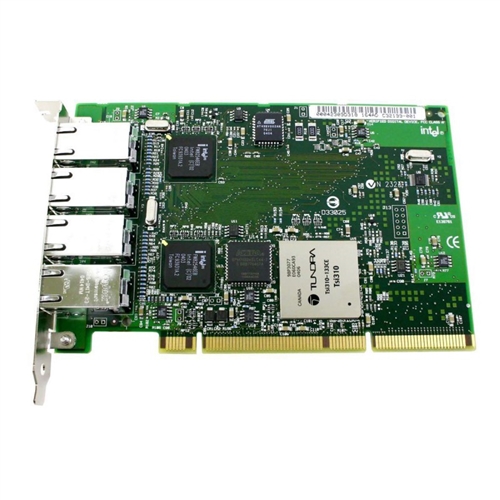

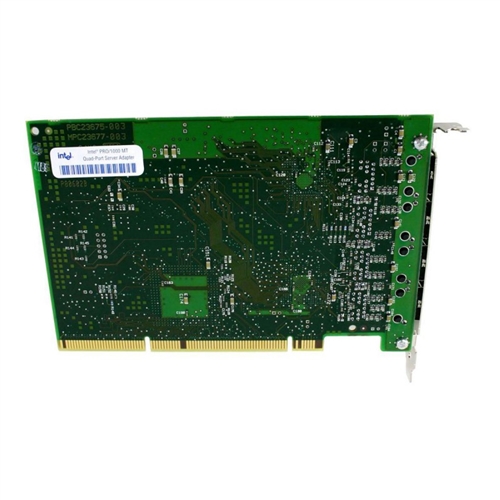

Intel PRO/1000 MT Quad Port Server Adapter, 4xRJ45, 10/100/1000, PCI-X 82546
Genuine HPE 234457-B24

Alternative Views:
Our Price: $140.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days
Brand: Intel
Condition: New Factory Sealed


Product Code: PWLA8494MT
Qty:

Description

Access multiple network segments, conserve valuable PCI slot space in servers, and migrate existing Category-5 networks to Gigabit Ethernet easily and cost-effectively with the Intel® PRO/1000 MT Quad Port Server Adapter. Standards-based management features help to ensure compatibility with the latest server and networking environments.

Enhance server performance further by teaming connections on this adapter with each other, with connections on other Intel® PRO Server Adapters or with LAN-on-motherboard components using Intel’s advanced server features to achieve multi-Gigabit scalability and redundant failover capability.

Features
  • Support for open source NOSs
  • Intel SingleDriver technology
  • Backward Compatibility with previous generations of Intel PRO/1000 Network Adapters
  • Supports 64 or 32 bit PCI-X or PCI 2.2 buses
  • Remote Management Support (WfM, RIS, SNMP/DMI)
  • IEEE 802.3ab Compatibility
  • Intel 82546EB Gigabit Controller
  • Interrupt Moderation
  • Advanced Cable Diagnostics
  • Expanded Advanced Server Features
  • Gigabit speeds on Category-5 cable networks
  • Compatible with Fast Ethernet
  • Auto-sensing, self-configuring 10/100/1000 Mbps performance

Specifications
  • Product Name: Intel PRO/1000 MT Quad Port Server Adapte
  • Product Code: PWLA8494MT
  • Connectors: Four RJ-45
  • IEEE standards/network topology: 10/100/1000BASE-T
  • Wiring:  Cat-5, 4-pair for 1,000 Mbps; Cat-3, 2-pair for 100 Mbps
  • Cable Distance: 100 m
  • Data rate(s) supported per port: 10, 100, and 1000 Mbps
  • Bus type: PCI/PCI-X
  • Bus width: 32 or 64 bit
  • Bus speed (MHz): 33/66/100/133
  • Onboard Memory: 128 KB
  • Interrupt levels: INTA, INTB, INTC, INTD
  • IEEE support: 802.3ab
  • Hardware certifications: FCC Class A, CE, GOST, AS/NZ 3548, BSMI, ICES-003, VCCI
  • Data Transfer Mode: Bus-master DMA
  • Controller-processor: Intel 82546EB
  • Typical power consumption: 16.8W at +3.3 DC
  • Operating temperature: 0~55° C
  • Operating Humidity: 85% at +55° C

Physical Dimensions
  • Length: 16.5 cm (6.6 in)
  • Width: 10.7 cm (4.2 in)

Network Operating Systems (NOS) Software Support
  • Microsoft Windows Server 2000
  • Microsoft Windows NT 4.0
  • Novell Netware 4.11, 4.2, 5.0, 5.1, 6.0
  • SunSoft Solaris 7, 8
  • UnixWare 7.x, OpenUNIX 8(ddi8)
  • Linux 2.2.5 or later
  • FreeBSD (latest kernel)
