Juniper QSFP+ 40GBase-SR4 40 Gigabit Optics, 850nm for up to 150m transmission on MMF, 740-032986
QFX-QSFP-40G-SR4 - Genuine Juniper 740-032986

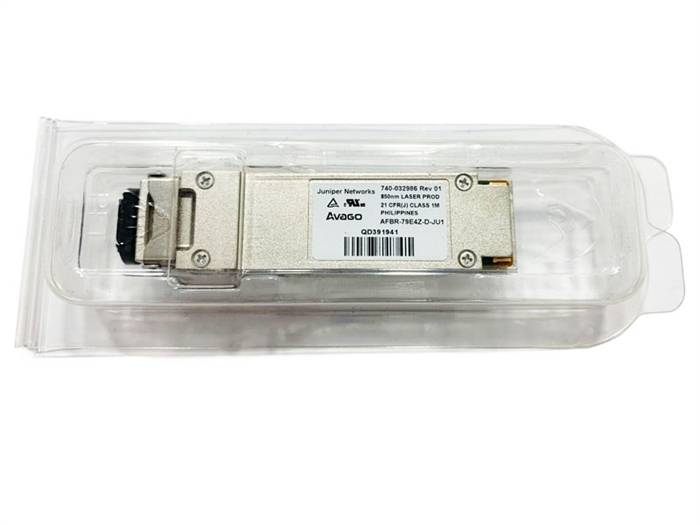

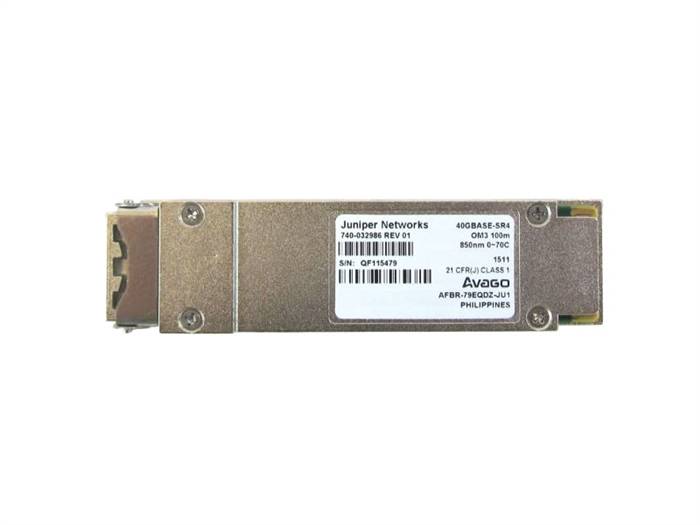

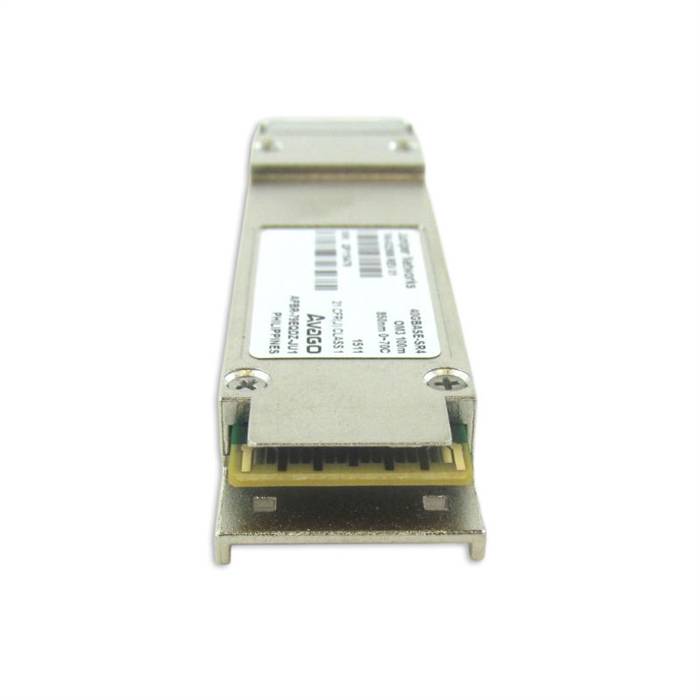

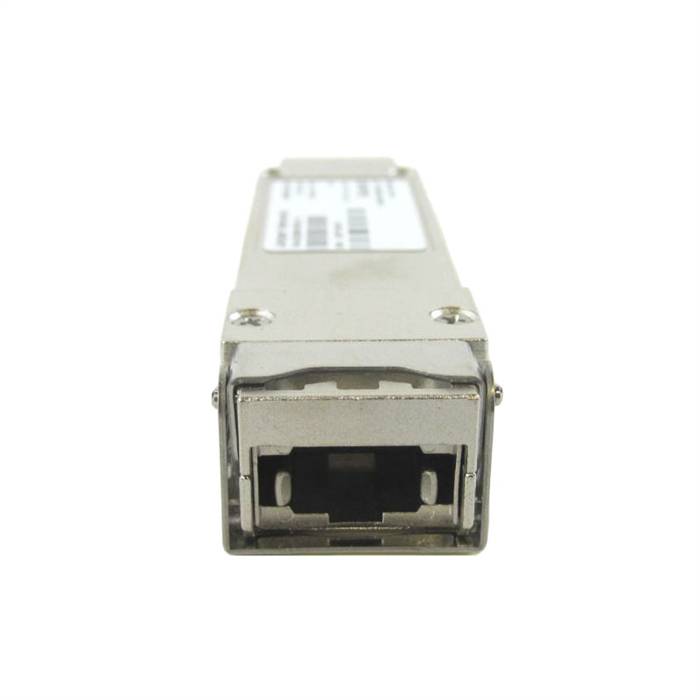

Alternative Views:
Our Price: $130.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: QFX-QSFP-40G-SR4
Qty:

Description

Specifications
  • Product Number: QFX-QSFP-40G-SR4
  • Product Name: QSFP+ 40GBase-SR4 40 Gigabit Optics, 850nm for up to 150m transmission on MMF
  • Part Number: 740-067442, 740-032986
  • Speed: 40 Gigabit Ethernet
  • Transceiver Type: QSFP+
  • Product Type: Optical Transceiver
  • Connector: MPO-12
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 40GBASE-SR4
  • Diagnostic support
    • Laser bias current–supported
    • RX input power–supported
    • Case temperature–supported
    • Power supply voltage–supported
    • Laser output power–not supported
  • Signaling rate, each lane: 40 Gbps
  • Transmitter fibers: 12
  • Transmitter wavelengths (range): 850 nm
  • Receive lane wavelengths (range): 840 nm to 860 nm
  • Transmitter output power, each lane (minimum)–7.6 dBm (per lane)
  • Transmitter output power, each lane (maximum): 2.4 dBm (per lane)
  • Receiver input power, each lane (minimum): -9.5 dBm
  • Receiver input power, each lane (maximum): 2.4 dBm
  • Optical Transmitter 3-dB spectral width (maximum): 0.65 nm
  • Cable type: MMF
  • Distance: 100 m @ OM3, 150 m @ OM4
  • Operating Temperature (range): 0° C to 70° C
  • Storage temperature: –40° C to 85° C
