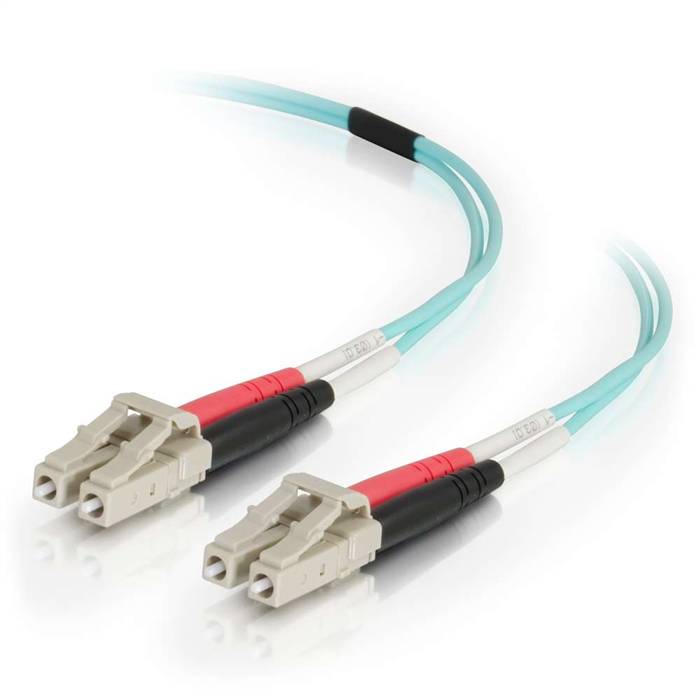

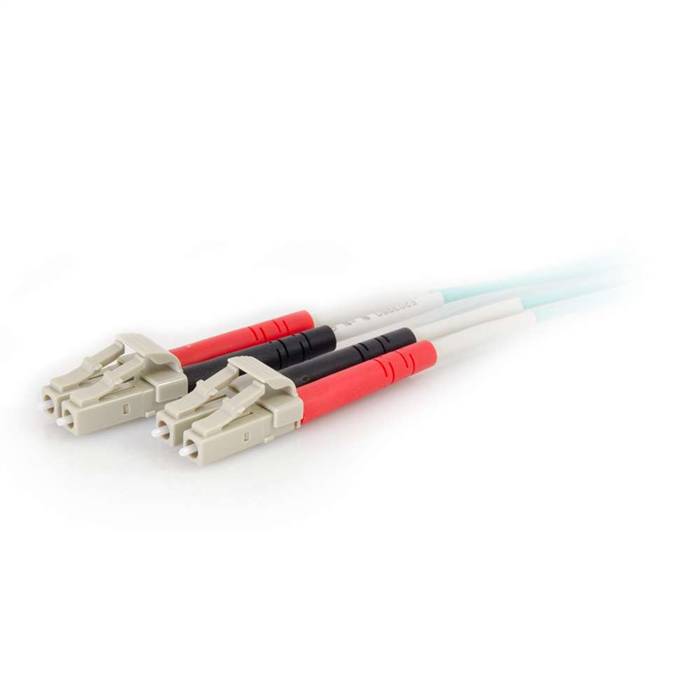

HPE 30m PremierFlex OM4 LC/LC Multi-Mode Optical Cable, 656431-001

This OM4 Duplex Multimode Fiber Optic Cable is ideal for connecting 40GBase BiDi 10GBaseSR, SFP+ and QSFP+ transceivers for 40 and 10 Gigabit network connections. This cable provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 40 or 10 gigabit Ethernet applications in a datacenter or wiring closet.

Specifications

• Manufacturer: HPE
• Part Number: QK736A
• Cable Type: Fiber Optic Cable
• Connector on first end: (1) Duplex LC Male
• Connector on second end: (1) Duplex LC Male
• Fiber: 50/125 OM4
• Length: 30m
• Color: Aqua

Electrical Characteristics

• Fiber Code - T
• Performance Option Code - 90
• Optical Fiber Type - 50 Multimode
• ISO/IEC 11801 Nomenclature - OM4
• Wavelength (nm) - 850/1300
• Maximum Attenuation (dB/km) - 3.0/1.0
• Minimum Over Filled Launch (OFL) - 1500/500 MHz km
• Minimum Effective Modal - 4700/— (MHz km)
• Serial 1 Gigabit Ethernet Distance (m) - 1000/600
• Serial 10 Gigabit Ethernet Distance (m) - 550/—

Physical Characteristics

• Fiber Count - 2
• Nominal Weight kg/km (lb/1000ft) - 3.4 (2.3)
• Nominal Outside Diameter mm (in) - 2.0 (0.08)
• Minimum Bend Radius Loaded cm (in) - 3.0 (1.2)
• Minimum Bend Radius Installed cm (in) - 1.0 (0.4)
• Maximum Tensile Loads Short-Term N (lbf) - 220 (48)
• Maximum Tensile Loads Long-Term N (lbf) - 66 (15)
• Storage Temperature - -40°C to 70°C
• Installation Temperature - 0°C to 60°C
• Operation Temperature - 0°C to 70°C
• Approvals - NEC, OFNP, CSA FT-6, ICEA S-83-596
