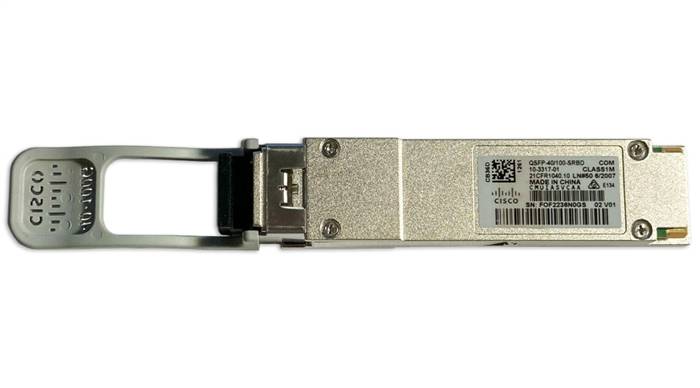

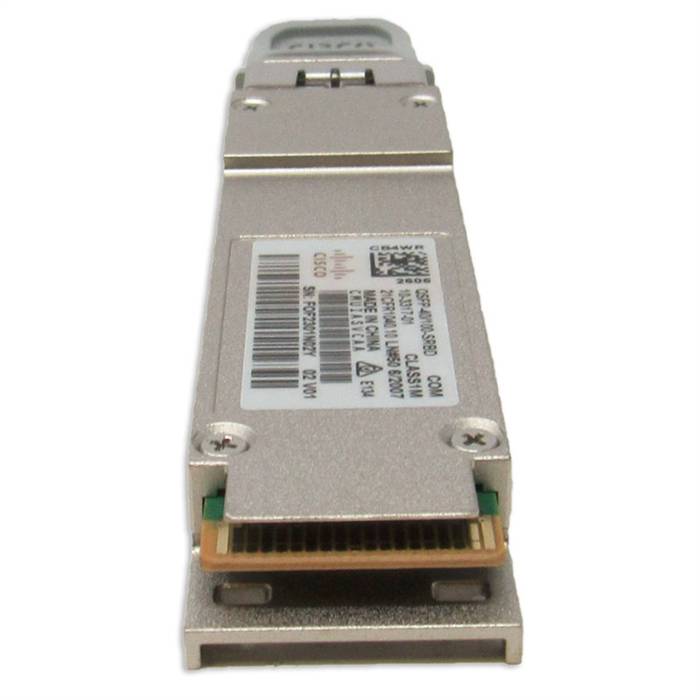

Cisco QSFP-40/100-SRBD 100G and 40G SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF
Genuine Cisco QSFP-40/100-SRBD

Alternative Views:
Our Price: $420.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: QSFP-40-100-SRBD
Qty:

Description

The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor.

Features and benefits of Cisco QSFP modules
  • Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port
  • Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
  • Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability
  • High-speed electrical interface compliant to IEEE 802.3bm

Cisco QSFP-40/100G-SRBD

The Cisco QSFP 40/100 Gb dual-rate Bi-Directional (BiDi) transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to either 40 or 100 Gigabit Ethernet connectivity.

In 40-Gbps mode, the Cisco QSFP 40/100-Gbps BiDi transceiver supports link lengths of 100 and 150 meters on laser-optimized OM3 and OM4 multimode fibers, respectively. In 100-Gbps mode, it supports 70 and 100 meters on OM3 and OM4, respectively.

Each Cisco QSFP 40/100-Gbps BiDi transceiver consists of two transmit and receive channels in the 832-918 nanometer wavelength range, enabling an aggregated 40 or 100-Gbps link over a two-strand multimode fiber connection.

Specifications
  • Product Number: QSFP-40/100-SRBD
  • Description: Cisco 100G and 40G SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF
  • Connector Type: LC
  • Wavelength: 855, 908nm
  • Cable Type: MMF
  • Cable Distance:
    • 70m @ OM3
    • 100m @ OM4/OM5
  • Power Consumption: 3.5W
  • Pull Tab Color: Gray
  • Transmit Power (dBm) per lane:
    • Maximum: +4 (100G), +5 (40G)
    • Minimum: -6 (100G), -4 (40G)
  • Receive Power (dBm) per lane:
    • Maximum: 4 (100G), 5 (40G)
    • Minimum: -7.9 (100G), -6 (40G)
  • Transmit and Receive Wavelength (nm): 855, 908

Dimensions
  • Maximum outer dimensions for the QSFP connector module are (H x W x D) 13.5 x 18.4 x 72.4 mm.
  • Cisco QSFP connector modules typically weigh 100 grams or less.

Environmental conditions
  • Operating temperature range:
    • 100G: +10°C  to +60°C
    • 40G: +10°C  to +70°C
  • Storage temperature range: -40 to 85°C (-40 to 185°F)

Platform support
Cisco QSFP-40/100-SRBD is supported on a wide range of Cisco equipment.
  • Cisco NCS-5501
  • Cisco ONS Transport Platform NCS-1002-K9
  • Cisco Nexus N9K-C92160YC-X
  • Cisco Nexus 9000 Series (Fixed 9200) N9K-C92160YC-X
  • Cisco Nexus 9000 Series (Modular 9500) N9K-X9432C-S
  • Cisco Nexus 9300-EX Series 93180YC-EX
  • Cisco Nexus 3000 Series N3K-C3232C
  • Cisco Catalyst C9500-24Y4C
